TACTTX600

6-Ch 2.4GHz Tx/Rx No Servos

Product Info
RESOURCES

Manual/Diagram
Manual
TACTIC

TACTTX600
6-Ch 2.4GHz Tx/Rx No Servos
By TACTIC
Discontinued
Click to Enlarge
click to enlarge

More like this... 6-Ch Aircraft Radio Systems
But only from... TACTIC


 Inventory Status Legend
Stock availability for on-line ordering
0
$109.99
Warehouse ?
Stock availability for pick up
0
$109.99
Warehouse ?
0
$109.99
Store - Charlottetown ?
0
$109.99
Store - Edmonton ?
0
$109.99
Store - Mississauga ?
0
$109.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
6 ch
Channels:
FHSS
Modulation:
2.4 GHz
Band:
TR624 6-ch Receiver
Receiver (included):

FEATURES

2.4GHz FHSS (Frequency Hopping Spread Spectrum) technology for
            interference-free control
          5th and 6th channels for landing gear and flaps
          Analog throttle trims and digital aileron, elevator and rudder trims
          V-Tail and elevon mixing
          Wireless trainer system
          Ball-bearing gimbals
          Power LED and low-voltage alarm
          Charge jack for optional rechargeable batteries


VIDEO



PRODUCT RESOURCES
VENDOR TECHNOTES

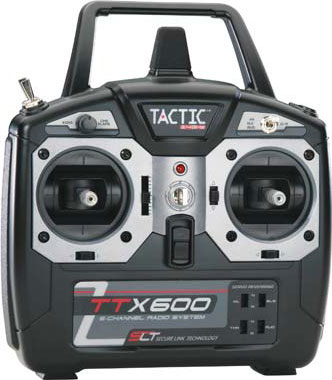

      This is the Tactic TTX600 2.4GHz 6-Channel Radio System on Mode 2.
TTX600 Transmitter and TR624 Receiver Only, Servos Not Included.

FEATURES: 2.4GHz FHSS (Frequency Hopping Spread Spectrum) technology for
interference-free control
5th and 6th channels for landing gear and flaps
Analog throttle trims and digital aileron, elevator and rudder trims
V-Tail and elevon mixing
Programmable fail-safe
Wireless trainer system
Ball-bearing gimbals
Power LED and low-voltage alarm
Charge jack for optional rechargeable batteries
One year limited warranty through Hobby Services beginning at date of
purchase

INCLUDES: 2.4GHz Transmitter
TR624 6-ch Receiver, TACL0624
On/Off Switch Harness with Charge Lead
4-Cell AA Battery Holder
Adjustable Neck Strap
Instruction Manual

REQUIRES: AA Batteries: Eight alkaline, NiCd, or NiMH (4 for transmitter and 4
for receiver)

SPECS: Transmitter
Frequencies: 2.403 - 2.480GHz
Stick mode: 2
Modulation: FHSS spread spectrum
Input Power: Four AA alkaline, NiCd or NiMH cells
Output Power: <0.1W
Charge Jack: Futaba compatible

Receiver-
Channels: 6
Receiving Frequencies: 2.403 - 2.480GHz
Modulation: FHSS spread spectrum
Input Power Requirement: Four AA alkaline, NiCd or NiMH cells (4.0-
6.0V)
Fail Safe: Programmable; reduces throttle to a user-selected setting
Dimensions: 1.77 x 0.98 x 0.50" (45 x 25 x 13mm)
Weight: 0.28 oz (8g)
Antenna: Internal

COMMENTS: Mode 1 transmitter currently unavailable
