TACM2500

Y-Harness 20" (500mm) Futaba J

Product Info | Substitutions
RESOURCES

Substitutions (6)
TACTIC

TACM2500
Y-Harness 20" (500mm) Futaba J
By TACTIC
$13.99 CAD
Order Quantity:
No Picture Available

More like this... Radio System Wiring & Switches
But only from... TACTIC


 Inventory Status Legend
Stock availability for on-line ordering
0
$13.99
Warehouse ?
Stock availability for pick up
0
$13.99
Warehouse ?
0
$13.99
Store - Charlottetown ?
0
$13.99
Store - Edmonton ?
0
$13.99
Store - Mississauga ?
0
$13.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

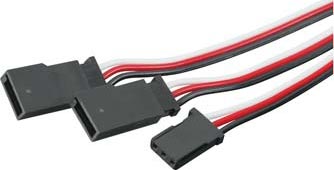

            This is Tactic 20" Y-Harness with Futaba J Connectors.

INCLUDES: Has one male connector that plugs into receiver, and two female
connectors that "Y" out toward two aileron servos

SPECS: Fork in "Y" is 12-1/4" (317mm) from the receiver connector
Overall Length: 20" (508mm)
Connectors: one male and two female Futaba J
Wire Color Codes-
Black: negative
Red: positive
White: signal (polarity tab is on the signal side)

jxs 09/25/13
ir/jxs
707768425006 0707768425006
TACM2500
