TACM0240

TSX40 Standard Servo High Speed Metal Gear 2BB

Product Info
TACTIC

TACM0240
TSX40 Standard Servo High Speed Metal Gear 2BB
By TACTIC
$28.99 CAD    32.99
Save $4.00 (12%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... Analog Servos
But only from... TACTIC


 Inventory Status Legend
Stock availability for on-line ordering
0
$28.99
Warehouse ?
Stock availability for pick up
0
$28.99
Warehouse ?
0
$28.99
Store - Charlottetown ?
0
$28.99
Store - Edmonton ?
0
$28.99
Store - Mississauga ?
0
$28.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

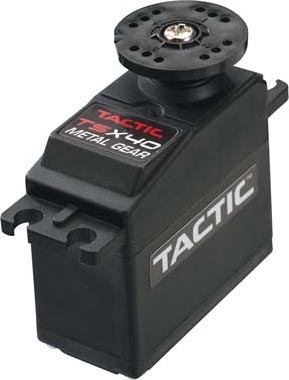

            This is the Tactic TSX40 High Torque Metal Gear Servo.

FEATURES: Metal gear train
Two ball bearings
One year limited warranty through Hobby Services beginning at date of
purchase

INCLUDES: Tactic TSX40 High Torque Metal Gear Servo, with Wire Lead and
Universal Connector, 0.83" (21mm) Round Horn,
1.2" (31.5mm) diameter 6-point Horn, 1.5" (37.8mm) 4-point
Horn, four each Grommets, Eyelets, and Screws, 3x5mm Servo Horn
Screw

SPECS: Power Supply: 4.8V 6.0V
Speed @ 60: 0.16 sec 0.13 sec
Output Torque: 93 oz-in (6.7 kg-cm) 99 oz-in (7.1 kg-cm)
Dimensions: 1.6 x 0.8 x 1.5" (40 x 20 x 38mm)
Weight: 1.8oz (51g)

jxs 08/27/13
ir/jxs
707768402403 0707768402403
TACM0240
