TACM0225

TSX25 Mini Servo Digital High Speed 2BB Coreles

Product Info
TACTIC

TACM0225
TSX25 Mini Servo Digital High Speed 2BB Coreles
By TACTIC
$26.99 CAD    29.99
Save $3.00 (10%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... Digital Servos
But only from... TACTIC


 Inventory Status Legend
Stock availability for on-line ordering
0
$26.99
Warehouse ?
Stock availability for pick up
0
$26.99
Warehouse ?
0
$26.99
Store - Charlottetown ?
0
$26.99
Store - Edmonton ?
0
$26.99
Store - Mississauga ?
0
$26.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • Digital
  • Coreless Motor
VENDOR TECHNOTES

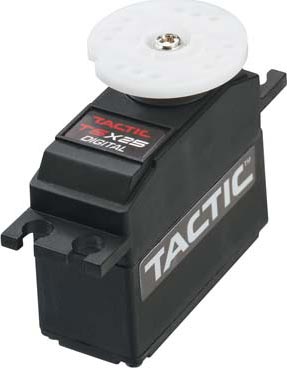

            This is the Tactic TSX25 Digital Mini High Speed Servo.

FEATURES: Coreless motor
Two ball bearings
One year limited warranty through Hobby Services beginning at date of
purchase

INCLUDES: Tactic TSX25 Digital Mini High Speed Servo, with Wire Lead and
Universal Connector, 0.83" (21mm) Round Horn, 1.5" (39mm) Double
Arm, 1.2" (31.5mm) diameter 6-point Horn, 1.5" (37.8mm) 4-point
Horn, four each Grommets, Eyelets, and Screws, 2x5mm Servo Horn
Screw

SPECS: Power Supply: 4.8V 6.0V
Speed @ 60: 0.15 sec 0.12 sec
Output Torque: 84 oz-in (6.1 kg-cm) 91 oz-in (6.6 kg-cm)
Dimensions: 1.4 x 0.6 x 1.1" (36 x 15 x 29mm)
Weight: 0.88oz (25g)

COMMENTS: A note on coreless motors-a conventional servo motor has a steel core
armature wrapped with wire that spins inside the magnets. In a
Coreless design, the armature uses a wire mesh that forms a cup
that spins around the outside of the magnet. This arrangement is
much lighter resulting in smoother operation and faster response
time.

jxs 08/27/13
ir/jxs
707768402250 0707768402250
TACM0225
