TACL1424

4-Channel Micro Receiver Board w/Servos ESC

Product Info | Fits What?
RESOURCES

Fits What? (7)
TACTIC

TACL1424
4-Channel Micro Receiver Board w/Servos ESC
By TACTIC
$51.99 CAD    59.99
Save $8.00 (13%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... Misc Radio System Accessories
But only from... TACTIC


 Inventory Status Legend
Stock availability for on-line ordering
0
$51.99
Warehouse ?
Stock availability for pick up
0
$51.99
Warehouse ?
0
$51.99
Store - Charlottetown ?
0
$51.99
Store - Edmonton ?
0
$51.99
Store - Mississauga ?
0
$51.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

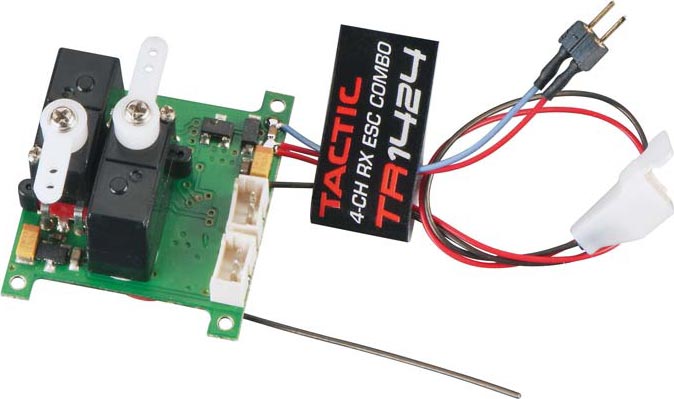

 This is the Tactic TR1424 2.4GHz 4-Channel Receiver ESC and Servo Combo Board.

FEATURES: Designed for small electric aircraft, and supplied with many
FlyZone Tx-R and RTF aircraft
Two 1g servos
Brushed ESC with a maximum current rating of 4 amps is directly
connected to the throttle channel
Micro servo connection for attaching a servo, or brushless ESC for
alternative throttle control
Compatible with all Tactic brand 2.4GHz aircraft transmitters and
other radios that include the SLT protocol
Auto linking process (no linking pushbutton)
One year limited warranty beginning at date of purchase

INCLUDES: Tactic TR1424 2.4GHz 4-Channel Receiver ESC and Servo Combo Board
with Instruction Sheet

SPECS: Channels: 4
Receiving Frequencies: 2.403 - 2.480 GHz
Modulation: SLT 2.4GHz FHSS
Compatibility: Tactic 2.4GHz or SLT 2.4GHz transmitters
Input Power Requirement: 3.0 - 4.20V 1S LiPo Micro Connector
Power Indicator: Red LED
Range: Obstructed 215ft (65m), unobstructed 725ft (225m)
Servo Torque: 1.6 oz-in (0.12 kg-cm) @ 4.2V
Servo Speed: 0.05 sec. @ 60 rotation
Brushed ESC Max Current: 4 amp
Dimensions: 1.06 x 0.91 x 0.71" (27 x 23 x 18mm) w/o wires
Weight: 0.166oz (4.7g)
