TACJ2610

TTX610 6-Ch SLT 2.4GHz Tx/Rx No Servos

Product Info
TACTIC

TACJ2610
TTX610 6-Ch SLT 2.4GHz Tx/Rx No Servos
By TACTIC
$134.99 CAD    142.99
Save $8.00 (6%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... 4-Ch Spread Spectrum Aircraft Radio Systems
But only from... TACTIC


 Inventory Status Legend
Stock availability for on-line ordering
0
$134.99
Warehouse ?
Stock availability for pick up
0
$134.99
Warehouse ?
0
$134.99
Store - Charlottetown ?
0
$134.99
Store - Edmonton ?
0
$134.99
Store - Mississauga ?
0
$134.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
6 ch
Channels:
FHSS Spead Spectrum SLT
Modulation:
2.4 GHz
Band:
4x AA
Transmitter Battery (required):
TR625 6-Channel Receiver
Receiver Included:
On/off Switch Harness with Built-in Charge Lead
Four cell AA Battery Holder for Receiver
Tactic Neck
Accessories included:

FEATURES

Moving up to a 6-channel opens up the chance to add retracts, flaps or other functions to your aircraft. The TTX610 gives you the control you need at a price you can easily afford.

Changing dual rates on ailerons, elevator and rudder requires flipping a single switch. A two-position and a three-position switch make activating auxiliary functions just as easy.

Like all Tactic 2.4GHz systems, the TTX610 offers the interference-free dependability of the exclusive SLT protocol, which makes it ideal for use with all SLT receivers — including the ones included with all Tx-R (Transmitter-Ready) aircraft. Pressing a button on the included TR625 receiver reinforces TTX610 dependability by creating an unbreakable and exclusive link between your transmitter and receiver.

Dependability, affordability and features make the TTX610 is a standout system that offers the features you want and room to grow!





  • Switched 5th and 6th channels for landing gear, flaps and other functions

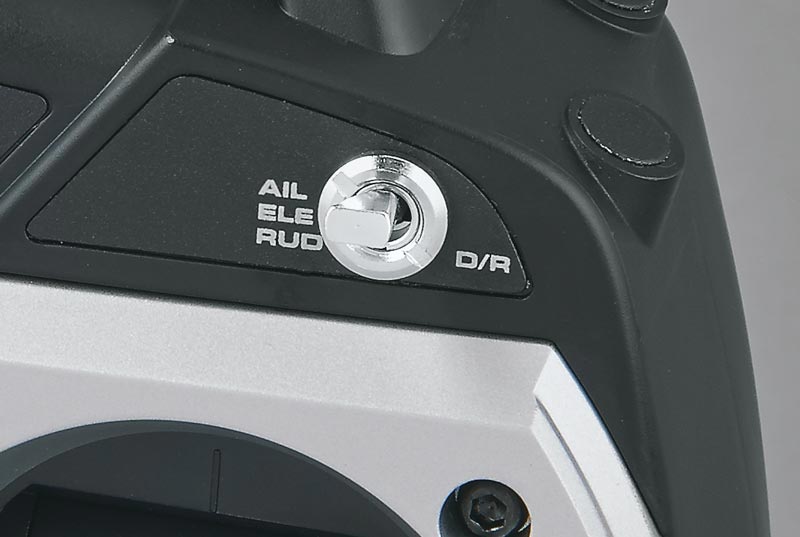

  • Dual rate switch (aileron, elevator & rudder)

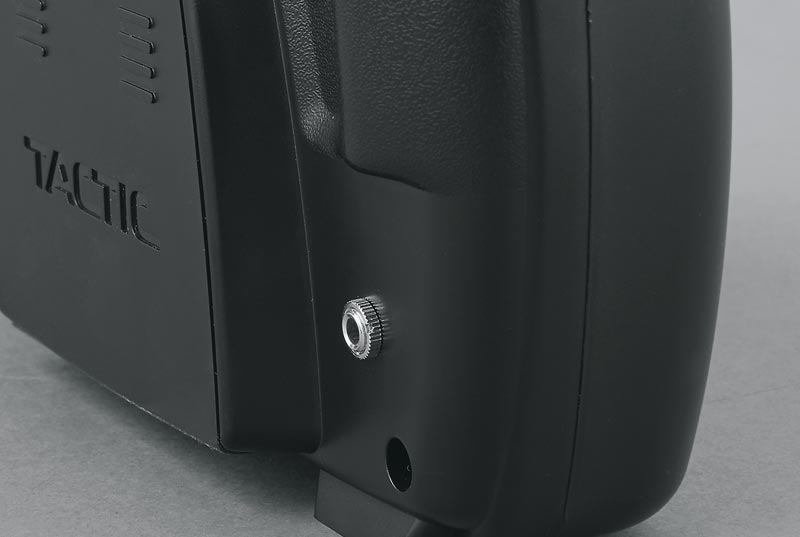

  • Wireless trainer system, plus wired system with a 3.5mm round jack
  • Digital trims with memory, fast/slow step adjustment & sound cues (Ch1-4)
  • Servo reversing (all channels)
  • V-tail and elevon mixing
  • Quad-bearing gimbals
  • Adjustable stick length
  • Low-voltage & and no trainer signal alarms
  • Charge jack for optional rechargeable batteries
  • Internal antenna
  • On/off switch
  • Factory-set fail-safes (aileron, elevator & rudder)
  • User-settable throttle fail-safe

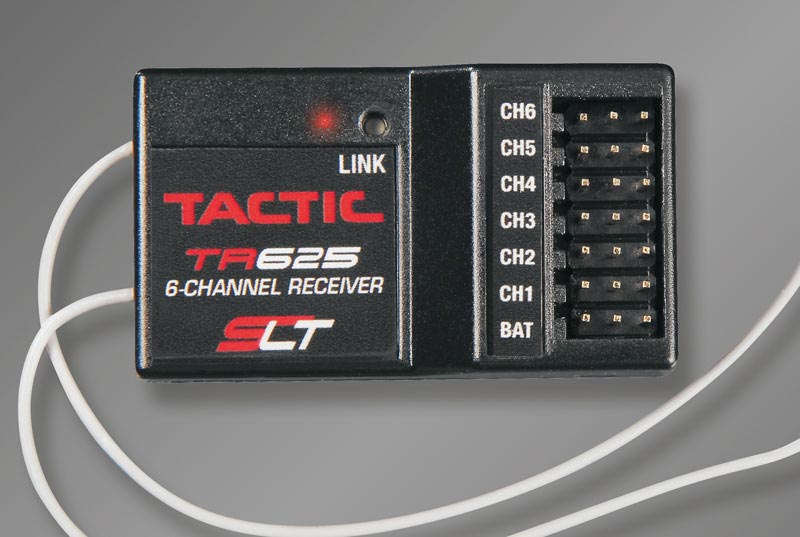

  • Compact, lightweight TR625 twin antenna receiver with push-button linking
  • 4-cell “AA” battery holder, adjustable neck strap & on/off switch harness with charge lead



  • Twin coaxial antennas ensure strong, interference-free reception regardless of aircraft altitude, attitude or orientation.

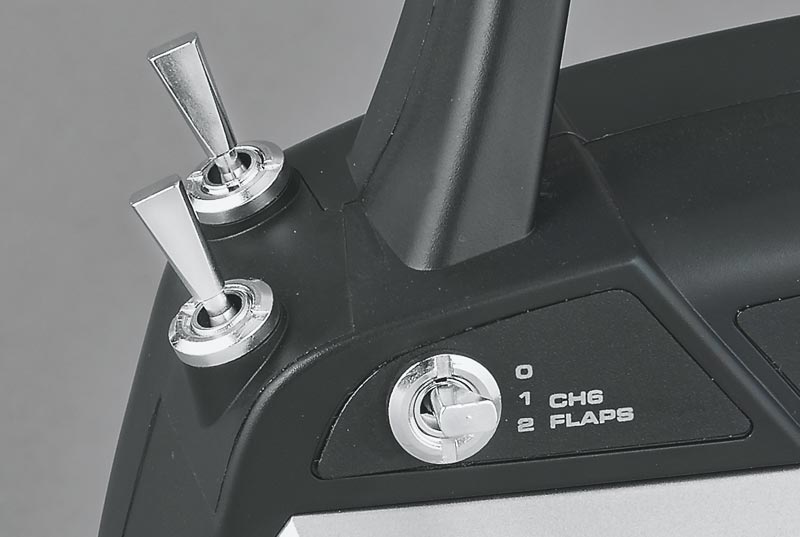

  • A 5th channel with two-position switch provides control of landing gear, while the 6th channel offers easy, user-friendly control of flaps or other switched functions.
  • Dual rates add value and versatility. Select high rates for takeoffs and landings. Choose low rates for smooth aerobatics and slow, scale-like flights.
  • With the TTX610, teaching or instructing is easy, no matter what brand of transmitter your instructor favors. There's wireless trainer system for Tactic systems, as well as a wired trainer jack for use with other transmitter brands or flight simulators.
click image to enlarge
ADDITIONAL PHOTOS

VENDOR TECHNOTES

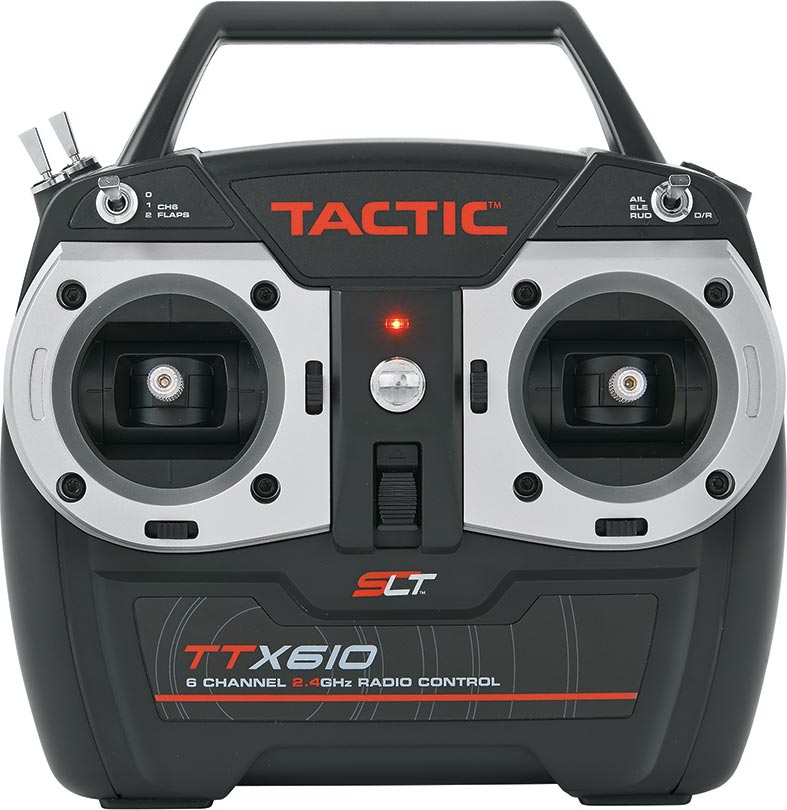

      This is the Tactic TTX610 2.4GHz 6-Channel Radio System on Mode 2
with the TR625 6-Channel Twin Antenna Receiver.
Transmitter and Receiver only, servos not included.

FEATURES: FHSS (Frequency Hopping Spread Spectrum) eliminates frequency pins
and signal interference-pushbutton transmitter/receiver linking
with no binding plugs
Digital trims with memory, fast/slow step adjustment and sound cues
for all channels
V-tail and elevon mixing
Dual rate switch for aileron, elevator & rudder
Digital trims with memory, fast/slow step adjustment & sound cues
(channels 1-4)
Switched 5th and 6th channels for landing gear, flaps and other
functions
Red LED power on indicator, flashes at low voltage
Low voltage and trainer signal alarms
3.5mm round jack for use with RealFlight
Wireless trainer system.
Factory-set fail-safes for aileron, elevator & rudder
User-settable throttle fail-safe
Charge jack for optional rechargeable batteries
All channel servo reversing
Ball bearing supported gimbals
Internal antenna
Adjustable stick length
One year limited warranty through manufacturer beginning at date of
purchase

INCLUDES: Tactic TTX610 2.4GHz 6-Channel Transmitter
TR625 6-Channel Receiver, TACL0625
On/off Switch Harness with Built-in Charge Lead
Four cell AA Battery Holder for Receiver
Tactic Neck Strap
Instruction Manual

REQUIRES: AA Batteries: Eight, 4 for transmitter and 4 for receiver
Servos of modeler's choice

SPECS: Transmitter-
Channels: 6
Frequencies: 2.403 - 2.480GHz
Modulation: FHSS spread spectrum
Input Power: Four "AA" alkaline, NiCD or NiMH cells, not included
Output Power: <0.1W
Power Indicators: LED, with low voltage alarm
Reversing Switches: DIP switches, all channels
Trims: Digital for each channel
Antenna: Built-in, non-removable
Charge Jack: Futaba compatible, for use with optional NiCd or NiMH
cells
Trainer Function: Wired and wireless (compatible with Tactic brand
transmitters only)
Trainer Jack: 3.5mm mono headphone socket
Optional Mixes: Elevon, V-tail

Receiver-
Channels: 6
Frequencies: 2.403 - 2.480GHz
Modulation: SLT 2.4GHz FHSS spread spectrum
Input Power: Four "AA" alkaline, NiCd or NiMH cells (4.0 - 6.0V,
not included)
Failsafe: Programmable; reduces throttle to a user-selected setting
Dimensions: 1.80 x 1.00 x 0.50" (45 x 26 x 13mm)
Weight: 0.34 oz (9.5g)

COMMENTS: 2.4GHz FHSS is not compatible with FASST systems.

jxs 11/11/14
707768126101 0707768126101
