TACJ2410

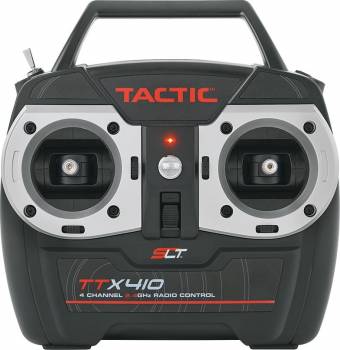

TTX410 4-Ch SLT 2.4GHz Tx/Rx No Servos

Product Info
TACTIC

TACJ2410
TTX410 4-Ch SLT 2.4GHz Tx/Rx No Servos
By TACTIC
$109.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... 4-Ch Spread Spectrum Aircraft Radio Systems
But only from... TACTIC


 Inventory Status Legend
Stock availability for on-line ordering
0
$109.99
Warehouse ?
Stock availability for pick up
0
$109.99
Warehouse ?
1
$109.99
Store - Charlottetown ?
0
$109.99
Store - Edmonton ?
0
$109.99
Store - Mississauga ?
0
$109.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
4 ch
Channels:
2.403-2.480 MHz
Band:
4x AA
Transmitter Battery (required):

FEATURES

Whether you're starting out or moving up, the TTX410 has a lot to offer at a very reasonable price. It gives you the dependability of 2.4GHz technology with the added security of SLT — the same protocol used in the receivers of all Tx-R aircraft. Push the included TR625 receiver's button, and you create an instant, unbreakable link between it and the transmitter. Linking other receivers is just as easy, so you can use the TTX410 as your go-to-transmitter for any of your aircraft with an SLT receiver.

Attractive, affordable and thoroughly dependable, the TTX410 is an outstanding investment for today and a great system for your flying future.



  • Wireless trainer system, plus wired system with a 3.5mm round jack
  • Digital trims with memory, fast/slow step adjustment & sound cues (all channels)
  • Servo reversing (all channels)
  • V-tail and elevon mixing
  • Quad-bearing gimbals
  • Adjustable stick lengths
  • Low-voltage & and no trainer signal alarms
  • Charge jack for optional rechargeable batteries
  • Internal antenna
  • On/off switch
  • Factory-set fail-safes (aileron, elevator & rudder)
  • User-settable throttle fail-safe

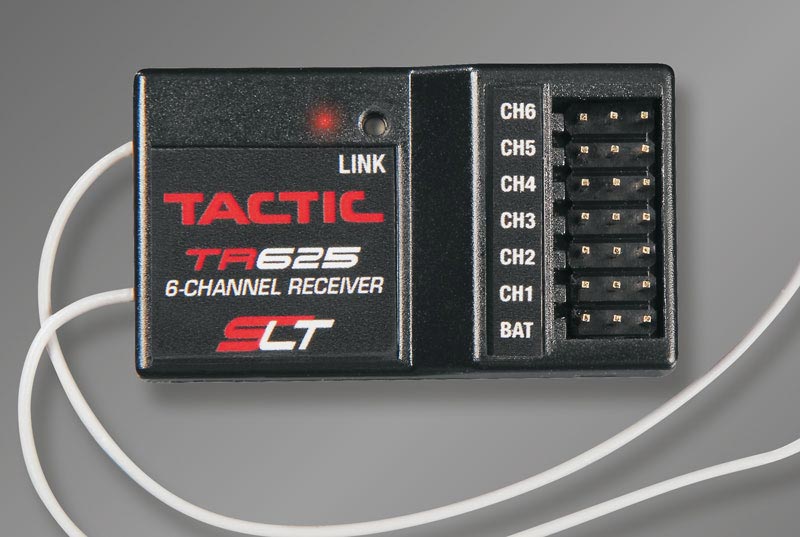

  • Compact, lightweight TR625 twin antenna receiver with push-button linking
  • 4-cell "AA" battery holder, adjustable neck strap & on/off switch harness with charge lead



click image to enlarge
ADDITIONAL PHOTOS

VENDOR TECHNOTES

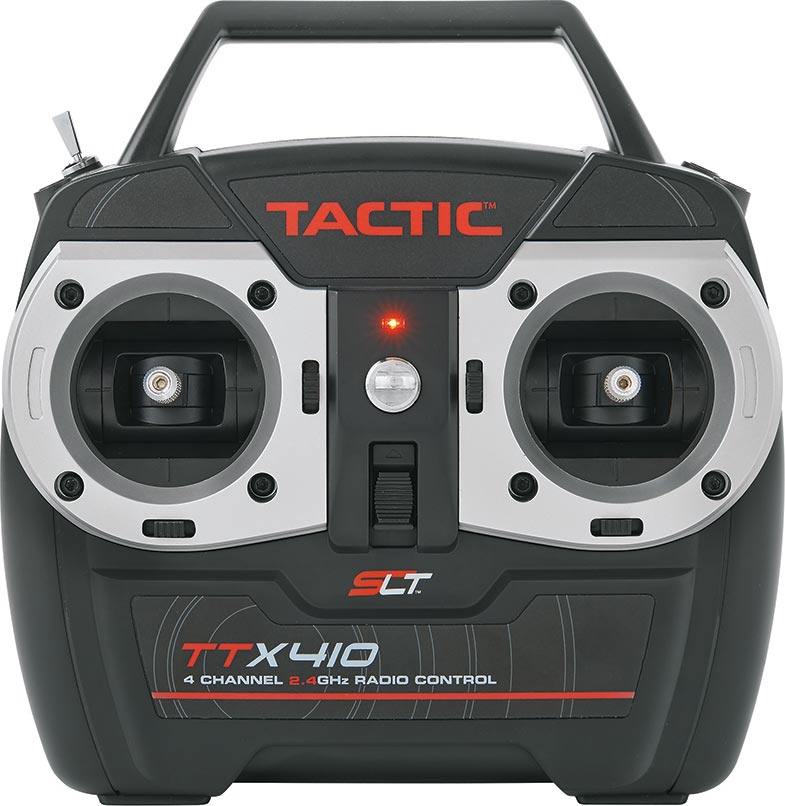

      This is the Tactic TTX410 2.4GHz 4-Channel Radio System on Mode 2
with the TR625 6-Channel Receiver.
Transmitter and Receiver only, servos not included.

FEATURES: FHSS (Frequency Hopping Spread Spectrum) eliminates frequency pins
and signal interference-pushbutton transmitter/receiver linking
with no binding plugs
Digital trims with memory, fast/slow step adjustment and sound cues
for all channels
Red LED power on indicator, flashes at low voltage
Low voltage and no trainer signal alarms

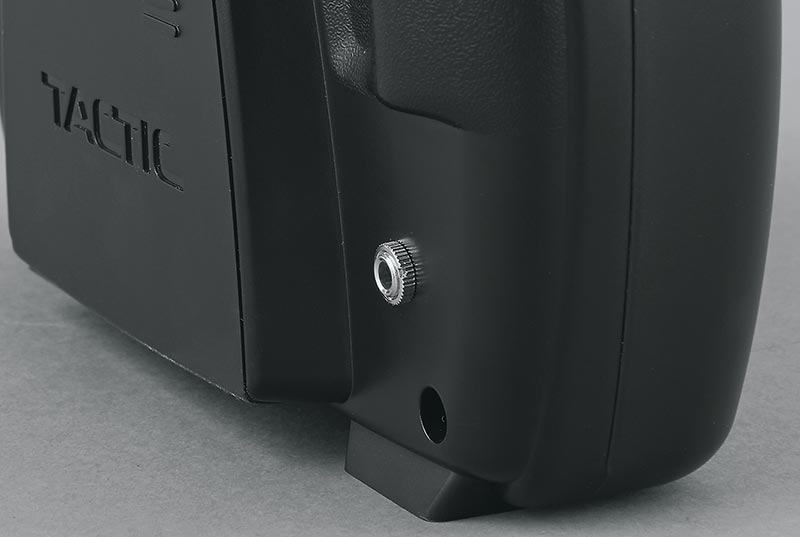

Wireless trainer system, plus wired system with a 3.5mm round jack
Factory-set fail-safes for aileron, elevator & rudder
User-settable throttle fail-safe
Charge jack for optional rechargeable batteries
All channel servo reversing
Ball bearing supported gimbals
Internal antenna
One year limited warranty through manufacturer beginning at date of
purchase

INCLUDES: Tactic TTX410 2.4GHz 4-Channel Transmitter
TR625 6-Channel Receiver, TACL0625
On/off switch harness with built-in charge lead
Four cell AA battery holder for receiver
Tactic neck strap
Instruction manual

REQUIRES: AA Batteries: Eight, 4 for transmitter and 4 for receiver
Servos of modeler's choice

SPECS: Transmitter-
Channels: 4
Frequencies: 2.403 - 2.480GHz
Modulation: FHSS spread spectrum
Input Power: Four "AA" alkaline, NiCD or NiMH cells, not included
Output Power: <0.1W
Power Indicators: LED, with low voltage alarm
Reversing Switches: DIP switches, all channels
Trims: Digital for each channel
Antenna: Built-in, non-removable
Charge Jack: Futaba compatible, for use with optional NiCd or NiMH
cells
Trainer Function: Wired and wireless (compatible with Tactic brand
transmitters only) We do NOT carry the Trainer cord for this tx.
Trainer Jack: 3.5mm mono headphone socket
Optional Mixes: Elevon, V-tail

Receiver-
Channels: 6
Frequencies: 2.403 - 2.480GHz
Modulation: SLT 2.4GHz FHSS spread spectrum
Input Power: Four "AA" alkaline, NiCd or NiMH cells (4.0 - 6.0V,
not included)
Failsafe: Programmable; reduces throttle to a user-selected setting
Dimensions: 1.80 x 1.00 x 0.50" (45 x 26 x 13mm)
Weight: 0.34 oz (9.5g)

COMMENTS: 2.4GHz FHSS is not compatible with FASST systems.

jxs 11/06/14
