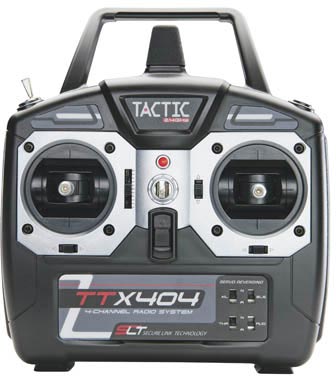

      This is the Tactic TTX404 2.4GHz 4-Channel Radio System on Mode 2
with the TR624 6-Channel Receiver.
Transmitter and Receiver only, servos not included.

**This system is only available as a Mode 2 configuration with the**
**left stick controlling throttle and the right stick**
**controlling elevator function.**
**Cannot be converted to Mode 1.**

FEATURES: FHSS (Frequency Hopping Spread Spectrum) eliminates frequency pins
and signal interference-pushbutton transmitter/receiver linking
with no binding plugs
Digital aileron, elevator and rudder trim, analog throttle trim
Red LED power on indicator, flashes at low voltage
Audible tones for low voltage and digital trim lever adjustments
Futaba compatible charge jack
Programmable fail-safe
Wireless link trainer function compatible with Tactic aircraft
transmitters
Slide servo reversing switches for all channels
One year limited warranty through manufacturer beginning at date of
purchase

INCLUDES: Tactic TTX404 2.4GHz 4-Channel Transmitter on Mode 2
TR624 6-Channel Receiver, TACL0624
On/off switch harness with built-in charge lead
Four cell AA battery holder for receiver
Tactic neck strap
Instruction manual

REQUIRES: AA Batteries: Eight, 4 for transmitter and 4 for receiver
Servos of modeler's choice

SPECS: Transmitter-
Channels: 4
Frequencies: 2.403 - 2.480GHz
Modulation: FHSS spread spectrum
Input Power: Four "AA" alkaline, NiCD or NiMH cells (4.0 - 6.0V)
Output Power: <0.1W
Antenna: Built-in, non-removable
Charge Jack: Futaba compatible, 2.5mm diameter inner terminal,
positive polarity, 5.5mm diameter outer connection, negative
polarity

Receiver-
Channels: 6
Frequencies: 2.403 - 2.480GHz
Modulation: FHSS spread spectrum
Input Power: Four "AA" alkaline, NiCd or NiMH cells (4.0 - 6.0V,
not included)
Failsafe: Throttle reduced, all other channels maintain last
recognized positions
Dimensions: 1.8 x 1.0 x 0.5" (45 x 26 x 13mm)
Weight: 0.29 oz (8.3g)

COMMENTS: 2.4GHz FHSS is not compatible with FASST systems.
