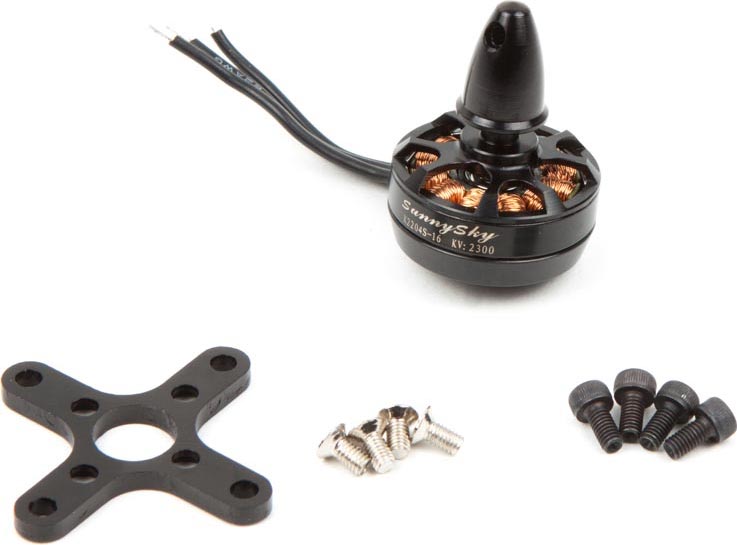

Brushless Motor X2204S-2300kV

Product Info
Brushless Motor X2204S-2300kV
$25.49 CAD    33.99
Save $8.50 (25%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Mutlirotor Motors
But only from... SUNNY SKY MODEL
All items from... SUNNY SKY MODEL

Special Blue Dot Clearance

Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Stratford ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
  • Long-life Japanese NMB ball bearings.
  • Efficient Japanese Kawasaki stator steel.
  • Rare earth magnets stable up to 180℃.
  • Oxygen free pure copper wires.
  • CNC machined aluminum case.
  • Patented balance techniques.

A great motor for micro racing quads (250 class) running 3S LiPo and 5x3 props.

Please note: The only reliably proven SimonK firmware version to work with this motor is 2013-05-05.  Alternately, recent versions of BLHeli (11+) have been proven to work when configured correctly.


Some people have experienced intermittent desync issues with AfroESCs on SimonK, which can be solved by adding a 100uF 16v capacitor across the input side of the ESC.
