SPECIFICATIONS
Minis and Micros
Size Class:
Digital
Type:
Airplane or Heli
Application:
Z Type
Connector Type:
Dual Bearing
Bearing/Bushing:
33.5 mm
Length:
14.9 mm
Width:
29.4 mm
Height:
40 g
Weight:
Metal
Geartrain:
Brushless
Motor Type:
6.0 to 8.4 v
Voltage Range:
10.5 kg-cm (145.82 oz-in)
Torque @ 6.0V:
0.094 sec/60°
Speed @ 6.0V:
13.8 kg-cm (191.6 oz-in)
Torque @ 8.4V:
0.078 sec/60°
Speed @ 8.4V:
FEATURES
High torque both on HV and non-HV applications
Allows BECs of adjustable BEC ESCs to be set higher to increase performance
Acts as a heat sink for the motor and ESC
Low deadband, high resolution, with impressive holding torque for unmatched performance
Durable high performance finish
Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate.

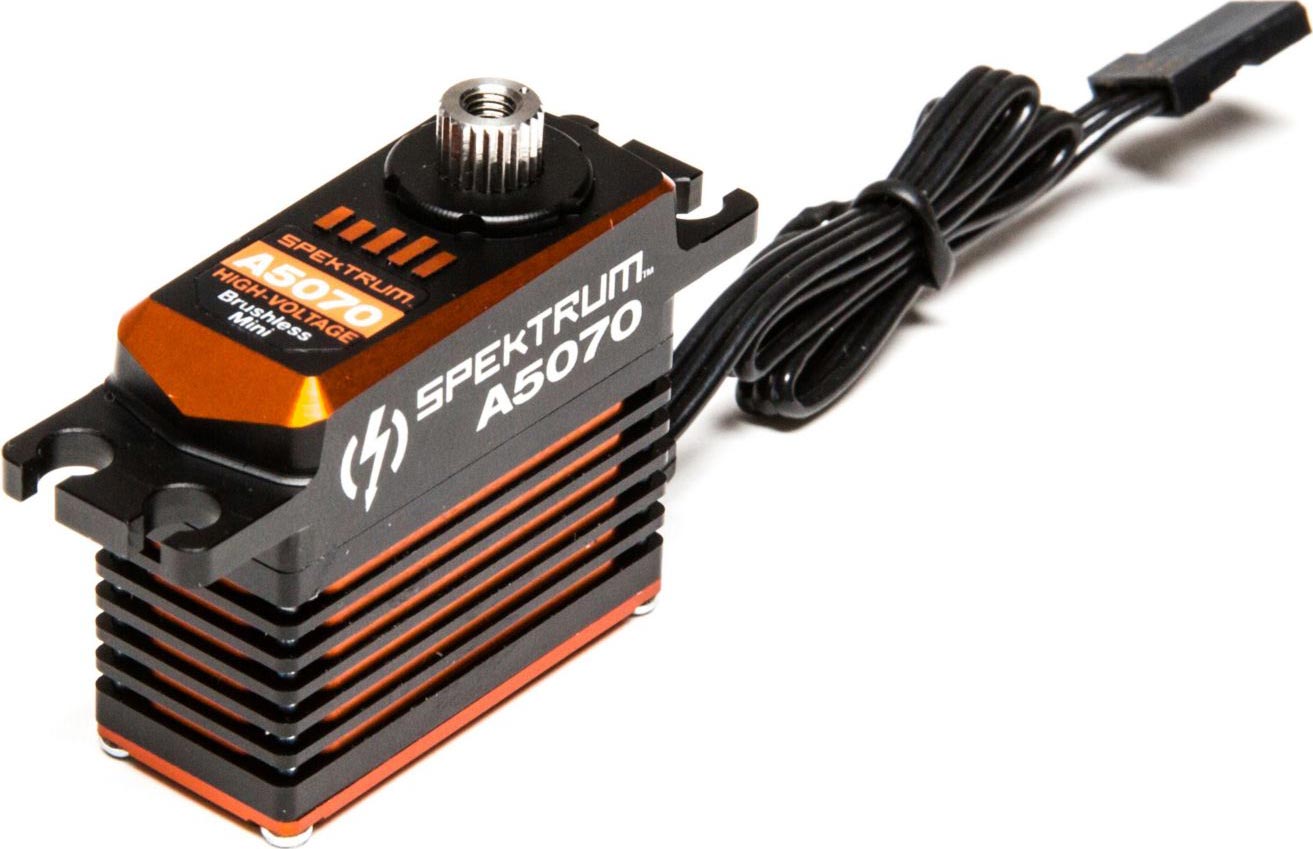

The Spektrum A5070 mini servo uses this solid foundation to achieve a whopping 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of durability, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s an impressive feature combination that makes this mighty servo an outstanding airplane or heli servo choice.
