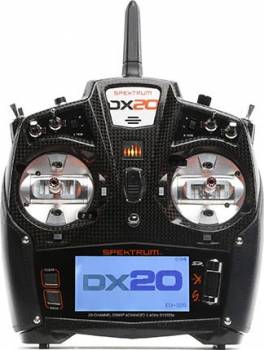

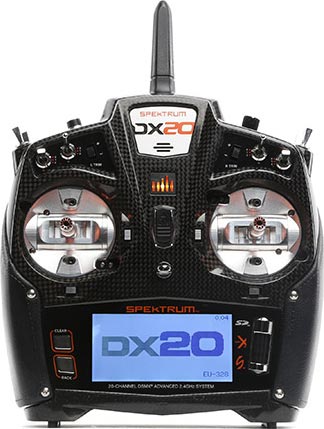

DX20 20Ch Pro System w/AR9020 Receiver (Mode 2)

Powerful AirWare™ Software for Expert Pilots
The Spektrum™ AirWare™ software that comes in the DX20 gives expert pilots all the programming features they could want along with a few they never knew they needed. And its intuitive SimpleScroll™ interface makes navigating menus and changing settings as simple as "roll and click."

Multi-Engine Control
The airplane programming includes a multi-engine control option that, when activated, allows you to independently adjust and control up to four engines or motors. You could use it to make individual run-up checks on the ground or synch propeller speeds in flight. It also makes it possible to use asymmetric thrust to tighten the turning radius of large models during ground operations.

ProTrim In-Flight Adjustments
When active, ProTrim will allow you to make small dual rate, expo, mix and differential adjustments in flight.

Programmable Voice Alerts
With voice alerts, you can keep tabs on important functions without ever taking your eyes off what you’re flying. They can be programmed to call out what flight mode you’ve chosen or report telemetry information on demand. If an alarm goes off, you won’t have to look at the transmitter display to see what’s happening. The DX20 will tell you.

Pro-Class Programming for Sailplanes
In addition to extensive airplane and heli programming, the DX20 has the most impressive sailplane programming features you'll find in any handheld transmitter. Ten available flight modes, 5 wing types, 3 tail types, 2 motor types, flap delay with elevator compensation – it has it all. You even have the ability to adjust individual servo characteristics (end points, travel, center, etc.) for all 20 channels.

Built-In Sequencer
Program a sequence of switch-activated events with time delays between each event. For instance, with a flip of the gear switch you could have an auxiliary channel open landing gear doors, then have the retract channel lower the landing gear, followed by the auxiliary channel closing the gear doors after the gear is extended.

Built-In Servo Balancer
No more will you need a complicated network of little boxes littering your fuselage if you want to balance servos. You can precisely balance the output of swashplate servos or multiple servos on a single control surface with the transmitter using a 7-point curve mix.

Wireless Trainer Link
This exclusive Spetkrum technology gives DX20 users the ability to wirelessly link up with other Spektrum transmitters and specially-equipped Spektrum FPV headsets. Once bound to another transmitter or component, ModelMatch™ technology will allow the DX20 to re-link without having to go through the bind process again.

With Wireless Trainer Link, you could:

• Wirelessly ''buddy box'' with another DSM2®/DSMX® transmitter when teaching someone to fly.

• Assign gimbal functions to a 2nd ‘camera’ transmitter when flying a camera drone so you can focus on avoiding obstacles and maintaining visual contact while someone else lines up the shot.

• Link with specially-equipped Spektrum FPV headsets to wirelessly control head tracking and remotely change video frequencies on the fly.

250-Model Memory
The enormous capacity of the DX20’s on-board memory means you will rarely, if ever, need to juggle models between transmitter memory and your SD card. The model memory menu is easier to navigate too. Only memory slots with model settings saved to them will appear. You won't have to scroll through empty slots or move models around if one is deleted.

Because the DX20 uses the same AirWare™ software as many other Spektrum transmitters, you can share model setups across platforms with almost any Spektrum pilot.

Stay Up to Date
Register your DX20 and receive alerts whenever Spektrum Airware software updates are available. You also gain access to a growing library pre-set model setups for the most popular Horizon Hobby aircraft.

Programming Features
The DX20 has all the programming functions you need to fly everything from collective pitch helis and multi-rotor aircraft to competition sailplanes and giant-scale jets.
