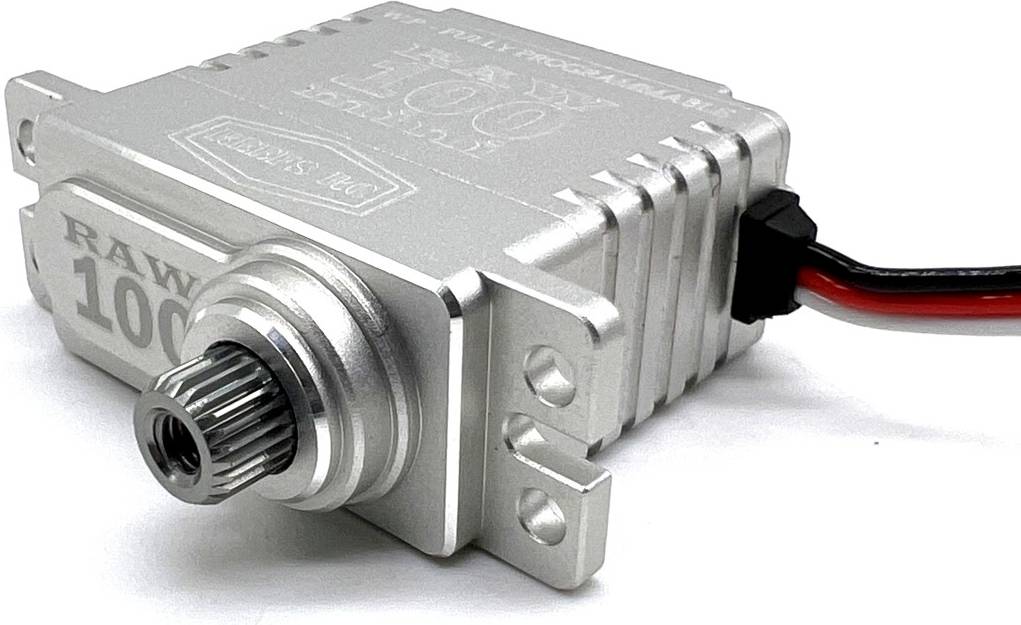

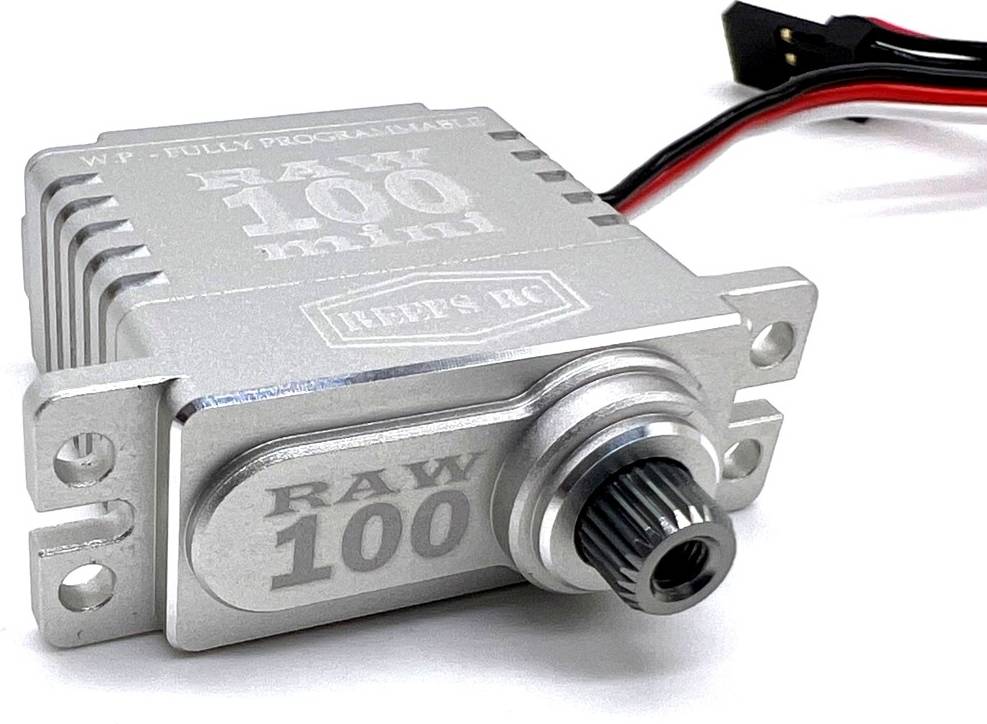

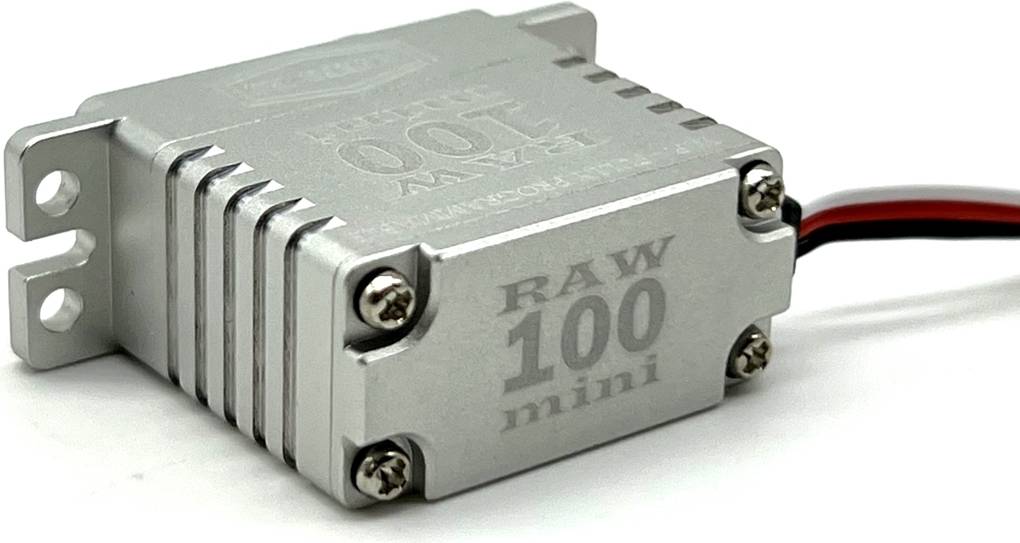

Servo RAW 100 Mini Servo Programmable Silver
|
click to enlarge
|
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Mini
Size Class:
Dual Ball Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
29.5 mm
Length:
14 mm
Width:
29 mm
Height:
30 g
Weight:
Metal
Geartrain:
6 - 8.4 v
Voltage Range:
6.12 kg-cm (85 oz-in)
Torque @ 6.0V:
.11 sec/60°
Speed @ 6.0V:
6.84 kg-cm (95 oz-in)
Torque @ 7.4V:
0.10 sec/60°
Speed @ 7.4V:
7.4 kg-cm (103 oz-in)
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:
FEATURES
- High Torque High Speed
- Mini Coreless Servo
- SUBMARINE WATERPROOF
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- REEFS LINK required for optional Programming
