SCOHK40041

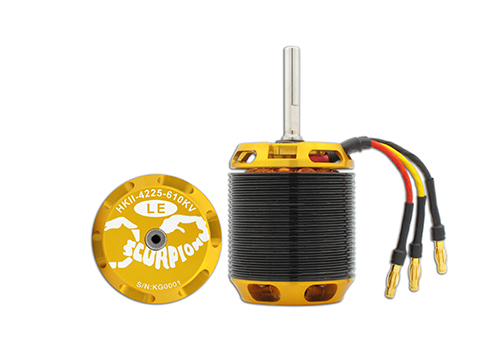

Scorpion HKII-4225-610Kv Motor 6mm Shaft

Product Info
SCORPION POWER SYSTEMS

SCOHK40041
Scorpion HKII-4225-610Kv Motor 6mm Shaft
By SCORPION POWER SYSTEMS
$404.59 CAD    475.99
Save $71.40 (15%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Helicopter Motors
But only from... SCORPION POWER SYSTEMS
All items from... SCORPION POWER SYSTEMS

Special Blue Dot Clearance

Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.

 Inventory Status Legend
StockStock availability for on-line ordering
3
$404.59
Warehouse ?
StockStock availability for pick up
3
$404.59
Warehouse ?
0
$404.59
Store - Charlottetown ?
0
$404.59
Store - Edmonton ?
0
$404.59
Store - Mississauga ?
0
$404.59
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • Stator Diameter 42 mm (1.65 in)
  • Stator Thickness 25 mm (0.98 in)
  • No. of Stator Arms 12
  • No. of Stator Poles 10
  • Motor Wind 10 Turn Delta
  • Motor Wire 1-Strand 1.4 mm
  • Motor Kv 610KV RPM/Volt
  • No-Load Current (Io/10V) 2.33 Amps
  • Motor Resistance (RM) 0.013 Ohms
  • Max Continuous Current 80 Amps
  • Max Continuous Power 3550 Watts
  • Weight 393 Grams (13.77 oz)
  • Outside Diameter 52.3 mm (2.06 in)
  • Shaft Diameter 5.98 mm (0.24 in)
  • Body Length 51.50 mm (2.03 in)
  • Overall Shaft Length 91.5 mm (3.60 in)
  • Max Lipo Cell 12s
  • Max Peak Current 130 Amps (5 seconds)
  • Max Peak Power 5770 Watts (5 seconds)
  • Motor Timing 5deg
  • Drive Frequency 8kHz

The Scorpion HKII-4225-610* Limited Edition motor for use on 600 class helicopters running on 12-cell Li-Po power. This motor represents the most technologically advanced power source ever offered for a 600 class electric helicopter. Each of the new HKII-4225 Limited Edition motor is wound with a single strand of 1.4mm wire for the highest possible efficiency. This motor is capable of running continuously at an input power of 3550 watts at 80 amps, and can handle peak inputs of 5770 watts and 130 amps.

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Plated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!

*This motor is using 30mm bolt spacing on the mounting
