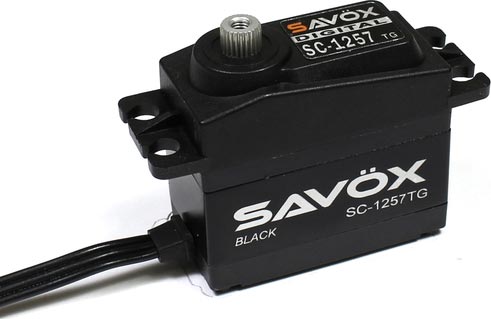

Coreless Digital Servo Black Edition Std Size
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

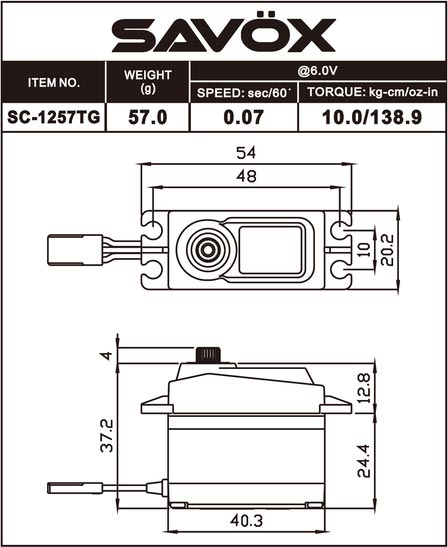

SPECIFICATIONS
40.3 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
52.4 g
Weight:
8 kg-cm (111.1 oz-in)
Torque @ 4.8V:
0.09 sec/60°
Speed @ 4.8V:
10 kg-cm (138.9 oz-in)
Torque @ 6.0V:
0.07 sec/60°
Speed @ 6.0V:
FEATURES
- Sleek new unique black design with laser etching and a shorter 200mm black shielded lead wire
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears
- Coreless motor provides high speed, incredible efficiency, and low power consumption
- The aluminum case design not only looks good but also allows for lower operating temperatures
- Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies
The SC1257TG is the perfect servo for your 1/10 scale buggy. With its strong and durable titanium gears it can push some serious speed! It is coreless which provides .07 oz. of speed while staying incredibly efficiently with low energy consumption. Black anodized in order to match any color scheme.
click image to enlarge
ADDITIONAL PHOTOS
|
4710006993225 4710006993225
SAVSC1257TG-BE
