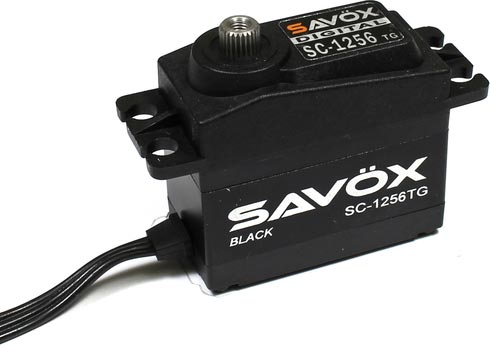

Coreless Digital Servo Black Edition Std Size
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

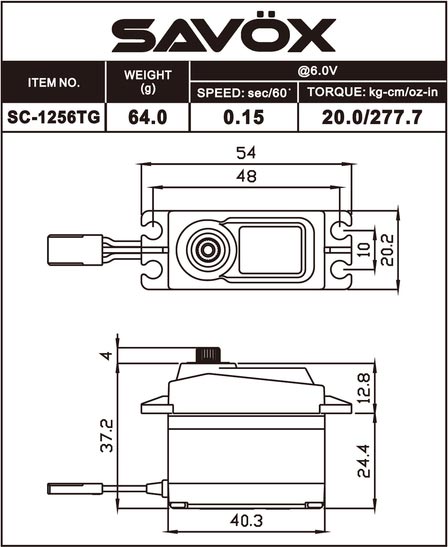

SPECIFICATIONS
40.3 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
52.4 g
Weight:
16 kg-cm (222.2 oz-in)
Torque @ 4.8V:
0.18 sec/60°
Speed @ 4.8V:
20 kg-cm (277.75 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
FEATURES
- Ideal for steering applications in 1/8 scale buggies, monster trucks and rock crawlers.
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
- Coreless motor provides high speed, incredible efficiency, and low power consumption.
- Titanium gears ensure long life and durability.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Super light-weight.
Sleek new unique black design with laser etching and a shorter 200mm black shielded lead wire. This servo pushes 277.2 oz of torque and this servo is perfect for those who are running a 4x4 short course truck and don't want to blow their whole wad on their servo. The SC-1256TG sports titanium and metal gears to keep things strong and running smooth. Black anodized to better match any color scheme.
click image to enlarge
ADDITIONAL PHOTOS
|
4710006993218 4710006993218
SAVSC1256TG-BE
