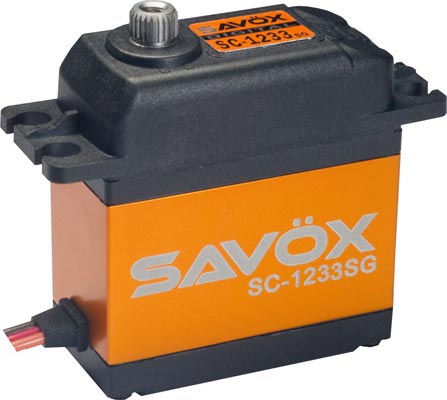

Tall Coreless Digital Servo .07/180oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
40.3 mm
Length:
20.2 mm
Width:
45.0 mm
Height:
79 g
Weight:
Steel Gear
Geartrain:
Coreless
Motor Type:
4.8 - 6.0 V
Voltage Range:
138.9 oz-in
Torque @ 4.8V:
0.08 sec/60°
Speed @ 4.8V:
180.5 oz-in
Torque @ 6.0V:
0.07 sec/60°
Speed @ 6.0V:
FEATURES
- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Super light-weight.
- Coreless motor provides extremely high speed, incredible efficiency, and low power consumption.
- Extremely strong unique steel gears ensure long-life and durability.
- The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Ideal for 1/10th scale trucks and buggies and every control surface for giant scale aircraft.
PRODUCT RESOURCES
