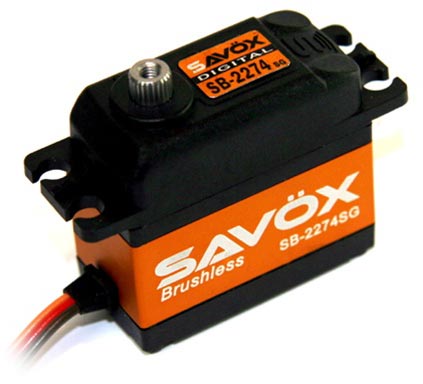

HV Brushless Digital Hi-Spd/Torq .08/347oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Aircraft, Heli, 1/8 & 1/10th Vehicles, Boats
Application:
Universal
Connector Type:
Dual BB
Bearing:
40.3 mm
Length:
20.2 mm
Width:
38.5 mm
Height:
69 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
6.0 - 7.4 v
Voltage Range:
20 kg-cm (277.75 oz-in)
Torque @ 6.0V:
0.105 sec/60°
Speed @ 6.0V:
25 kg-cm (347.18 oz-in)
Torque @ 7.4V:
0.080 sec/60°
Speed @ 7.4V:
FEATURES
- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Super light-weight.
- Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
- The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.
This high speed brushless servo is all you will ever need for 1/8th and 1/10th scale trucks and buggies (electric and nitro). The SA-2274SG is the servo that always performs like a champion. Pushing .08 oz. you will leave everyone in your dust. What more could you ask for really?
