Tall HV Brushless Digital Hi-Torq .10/555oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||
SPECIFICATIONS
Ultra Torque Tall
Size Class:
Giant Scale Aircraft, Monster Truck, Crawlers, 1/8 scale
Application:
Universal
Connector Type:
Dual BB
Bearing:
Dual BB
Bearing:
40.3 mm
Length:
20.2 mm
Width:
45.0 mm
Height:
84 g
Weight:
Unique Steel
Geartrain:
Brushless
Motor Type:
6.0 - 7.4 v
Voltage Range:
444.4 oz-in
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
555.5 oz-in
Torque @ 7.4V:
0.10 sec/60°
Speed @ 7.4V:
FEATURES

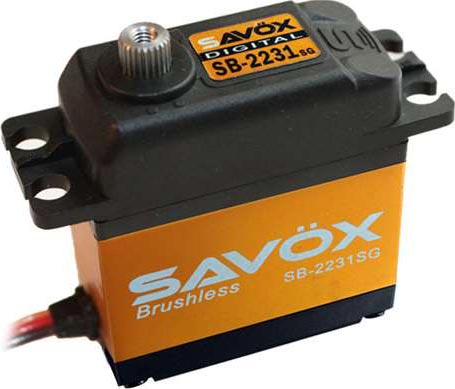

This is the Savox SB-2231SG Ultra Torque, High Speed, Brushless, Tall Size, & Steel Gear Digital Servo.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Brushless motor provides longer life and cooler operating temps.
- Extremely strong unique steel gears ensure long-life and durability.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for giant scale aircraft, monster truck, rock crawlers, and 1/8 scale.
