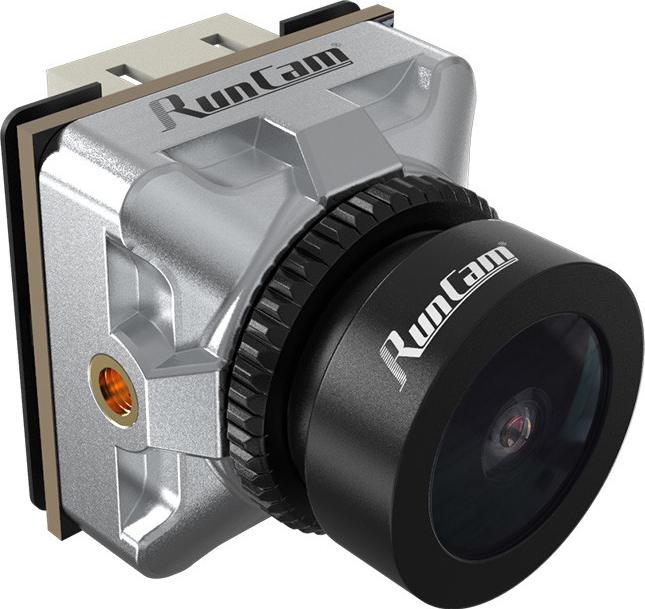

RunCam Phoenix 2 Joshua Bardwell Edition UART Control Version.
The top left corner of the screen will shortly display the current control mode. The default is Joystick control mode.
Day&Night ƒ/2.0 big aperture freestyle camera.
· 1/2'' big image sensor · ƒ/2.0 big aperture · Excellent low light performance · Less digital image shimmer
Rich yet natural color.
With upgraded CPU and upgraded 1/2'' high-performance image sensor,
the RunCam Phoenix 2 produces vivid high-resolution pictures.
Excellent low light performance thanks to the 1/2'' super global WDR image sensor, Phoenix 2's low light performance is even better than the RunCam Eagle.
ƒ/2.0 big aperture lens. Less red lens flare.
The high quality 6 layers of glass lens has a ƒ/2.0 aperture which brings less red lens flare and less purple fringing effect.
Less digital shimmer compared to the RunCam Eagle, the RunCam Phoenix 2 has way less digital shimmer and a much cleaner image.
Low latency.
This camera is on the same latency level of the RunCam Eagle
and is wonderful for freestyle flying!
Thanks Joshua for demonstrating his favorite camera Phoenix 2 Joshua Edition!
Specifications
Product Name RunCam Phoenix 2
Image Sensor 1/2" CMOS Sensor
Horizontal Resolution 1000TVL
Lens 2.1mm ?(M12)? FOV155° (4:3)
Screen Format 4:3 / 16:9 switchable
Mirror/Flip Available
Signal System PAL / NTSC Switchable
S/N Ratio >50dB (AGC OFF)
Electronic Shutter Speed Auto
Auto Gain Control (AGC) Auto
Min. Illumination 0.001Lux@1.2F
WDR Global WDR
Day/Night Color/BW/EXT/Auto
Menu Control Cable Control
Power DC 5-36V
Current
200mA@5V 85mA@12V
Housing Material ABS
Net Weight 9g
Dimensions 19mm*19mm*19mm
