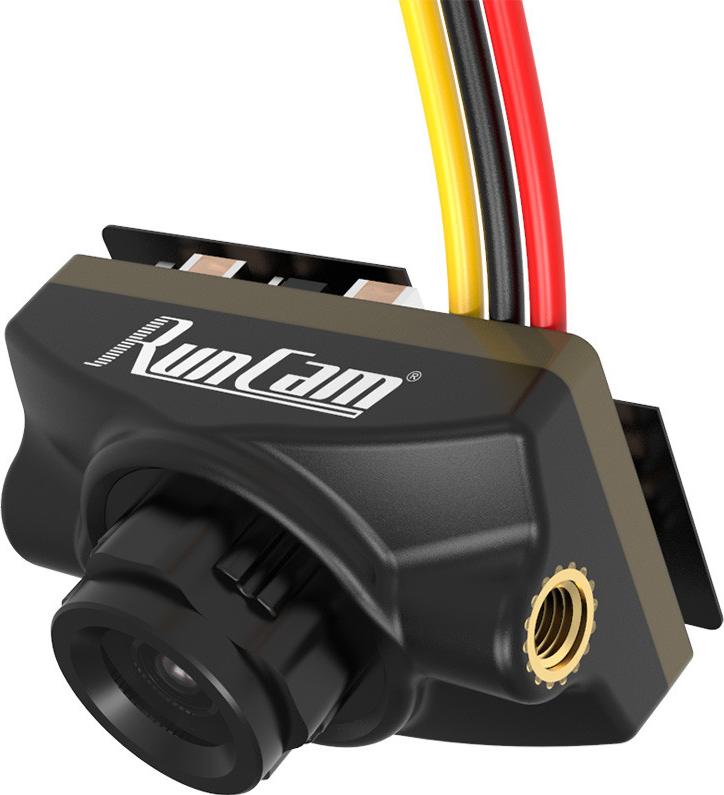

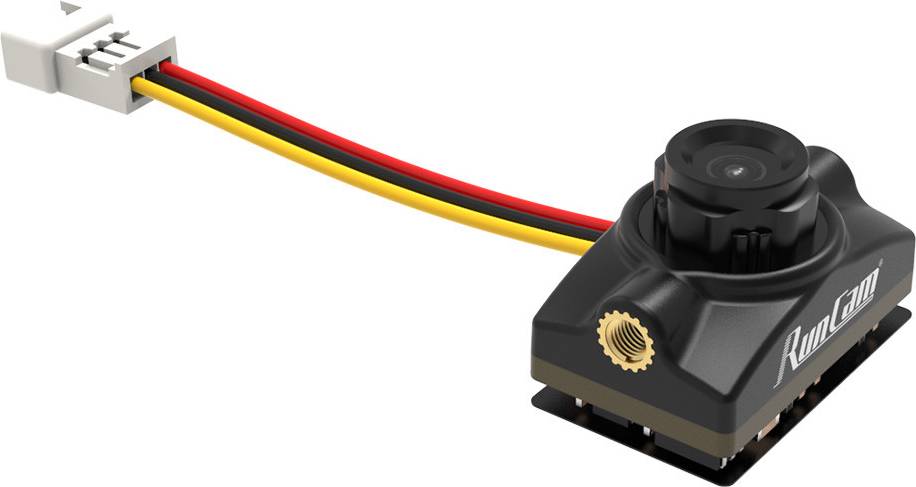

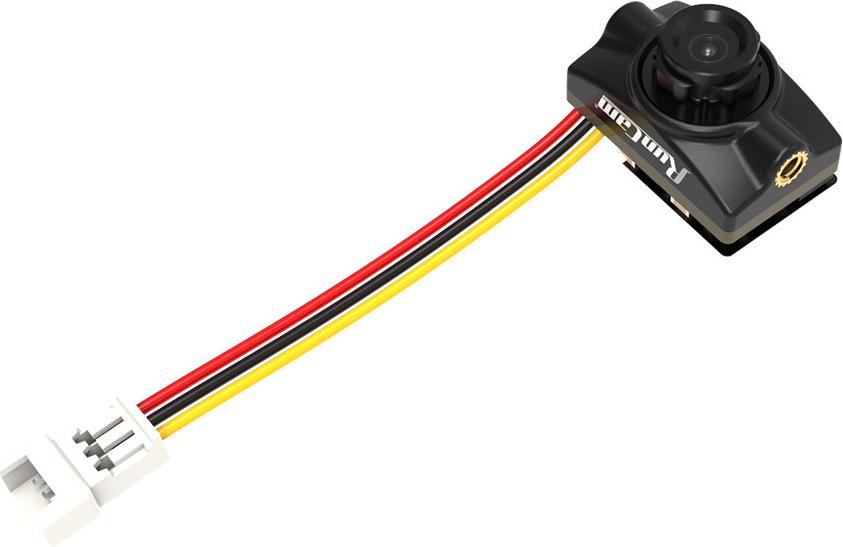

RunCam Atom-W 1/3" 800TVL 16x10mm
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Video Equipment Accessory, FPV Camera
But only from... RUNCAM
All items from... RUNCAM
But only from... RUNCAM
All items from... RUNCAM
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1/3" CMOS
Image Sensor:
800TVL
Horizontal Resolution:
FOV 130ยบ
Lens:
NTSC
Signal System:
>50dB
S/N Radio:
Auto
Electronic Shutter Speed:
Auto
Auto Gain Control (AGC):
0.01Lux@1.2F
Min. Illumination:
Auto
D-WDR:
Color
Day/Night:
DC 3.3-5.5V
Power:
160mA@5V / 180mA@3.3V
Current:
ABS with M1.4 Copper nut
Housing Material:
1.7g (including cables)
Net Weight:
L16mm*W10mm*H10mm
Dimensions:
click image to enlarge
ADDITIONAL PHOTOS
|
|
|

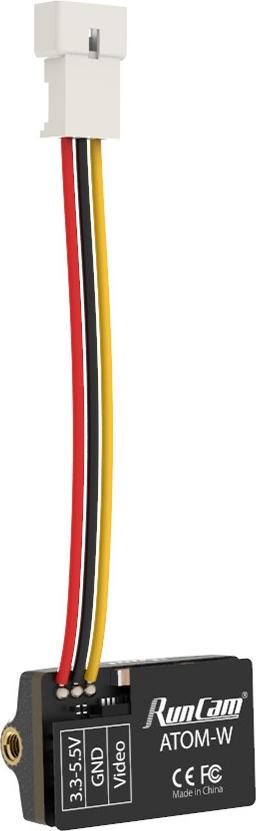

ATOM-W
