1/10 Trail Finder 2 Truck Chassis Kit w/o Body

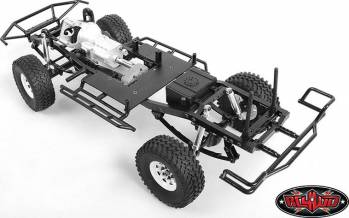

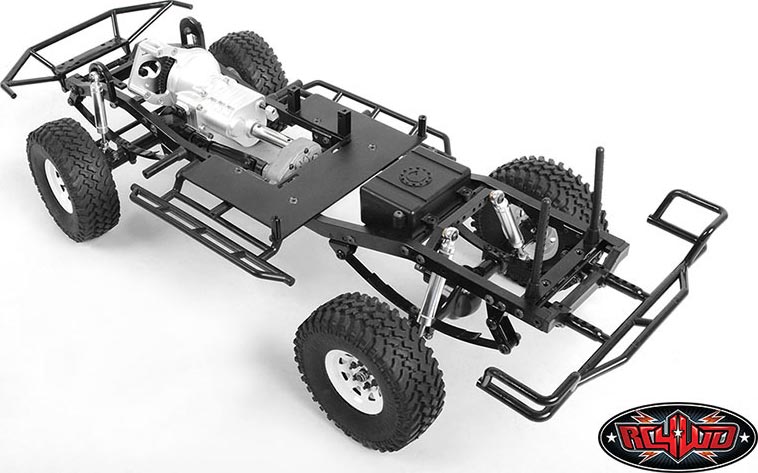

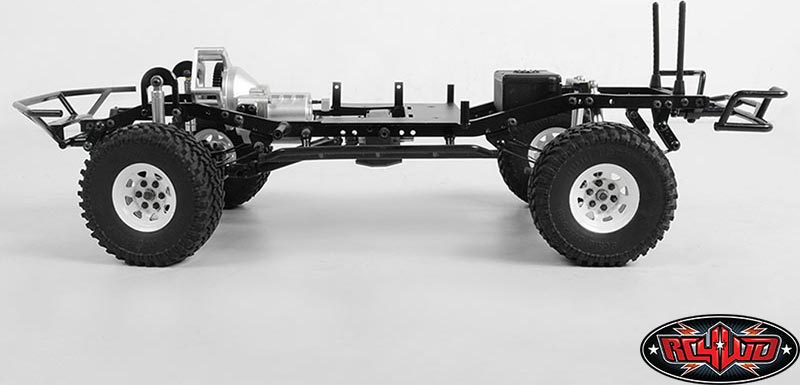

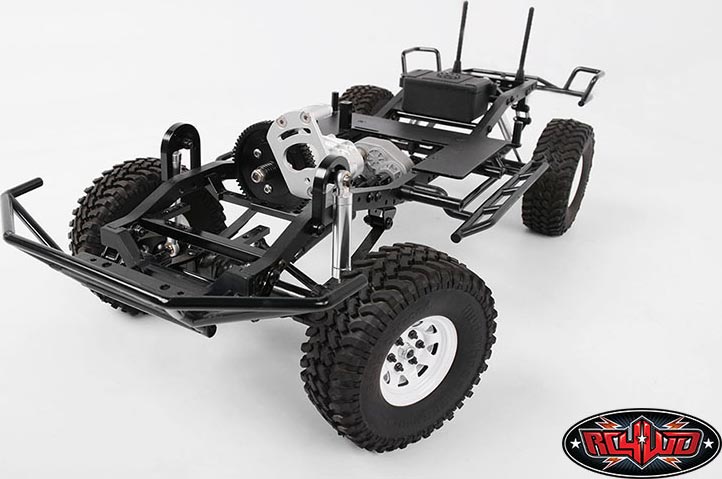

1/10 Trail Finder 2 Truck Chassis Kit w/o Body
$509.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Scale Trail & Scale Truck Kits
But only from... RC FOUR WHEEL DRIVE (RC4WD)
All items from... RC FOUR WHEEL DRIVE (RC4WD)

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
540 Crawler Brushed 35t
540 Crawler Brushed Motor 20T
540 Crawler Brushed Motor 27T
Scale Steel Punisher Shaft (100-135mm) 5mm
1/10 Warn 9.5CTI Winch
540 Crawler Brushed 55t
90mm Old Man Emu Nitrocharger Sport Shock
King Off-Road Dual Spring Shocks 90mm
486 mm
215 mm
210 mm
57 mm
Ground Clearance:
287 mm
4WD Shaft Driven
3+ channel
Radio Requirements:
35t, 45t, 55t
Motor Requirements (brushed):
To suit motor and battery
ESC Requirements:
6 cell NiMH or 2s lipo
Battery Requirements:

  • Super Grip High Performance Mud Thrasher Tires
  • Realistic Tube Bumpers - Rock Rails - Skid Plate
  • 1.55 Stamped Steel Beadlock Wheels with Lug Nuts
  • Highly Detailed Body with Dropped Bed and More
  • True to Scale Leaf Spring Suspension
  • Cast Metal Axles with Locked Differentials
  • Center Mounted Realistic 4x4 Transfer Case
  • 2 Speed Remote Selectable Transmission
  • Realistic Billet Aluminum Ladder Frame Chassis
  • Custom Designed for True-to-Scale Looks

Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow, or mud than the Trail Finder 2. Part scale truck, part adventurer, your TF2 is ready for your mud kicking trail-loving lifestyle! The TF2 has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2. Performance of the TF2 is smooth and with its 2 speed selectable transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout. The TF2 is truly a work of art in both appearance and performance.Every TF2 is compatible with a full range of option and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The Trailfinder 2. Your adventure awaits....

All New Hammer Transfer Case

Ratio - 1.47:1 Gears - Wide 32P steel gears Features - 8 bearings, cast casing, hardened gears

All New R3 2 Speed Transmission

Ratios Pinion/spur 14/64 = 4.57:1 1st gear

3.47:1 2nd gear 1.27:1

Gears - Wide steel 32P, Delrin spur, slipper clutch

Features - Machined billet aluminum casing, scale looking, Motor mount can be rotated to 10 different positions, compatible with other brand spurs (Axial, Traxxas, Robinson)

Cast Yota Axles

Ratio: 15/40 = 2.67:1 Width at hex (using 4mm TF2 hexes): 176.5mm

All New Trailfinder 2 Chassis

Features - Billet aluminum constriction Adjustable shock hoops


High quality plastic material, very durable High quality steel Yokes


1.55 OEM beadlock wheels

Hub: 12mm hex

Width: 22mm Back spacing: 9mm

Features: Stamped steel, aluminum hub, internal beadlock, very scale looking, 6 bolt pattern


Tough Armor TF2 Winch front bumper Tough Armor TF2 Rear Bumper Tough Armor TF2 Side Sliders Authentic looking crawler style tube bumper. Very high quality flexible plastic, very durable, very scale.
