PREAC2190

Quantum Pro EVO 80A ESC w/HV SBEC

Product Info
PRECISION AEROBATICS

PREAC2190

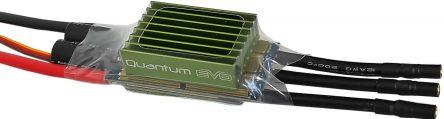

Quantum Pro EVO 80A ESC w/HV SBEC
By PRECISION AEROBATICS
$159.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Aircraft Electronic Speed Controls (ESC)
But only from... PRECISION AEROBATICS
All items from... PRECISION AEROBATICS


 Inventory Status Legend
StockStock availability for on-line ordering
1
$159.99
Warehouse ?
StockStock availability for pick up
1
$159.99
Warehouse ?
0
$159.99
Store - Stratford ?
0
$159.99
Store - Edmonton ?
1
$159.99
Store - Mississauga ?
1
$159.99
Store - Ottawa ?
1
$159.99
Store - Oshawa ?
1
$159.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES

Quantum Pro adjustable HV SBEC

This is the latest edition of our Quantum Pro Electronic Speed Control (ESC) featuring a high output SBEC capable of delivering 6v, 7.4v or 8.4v. It ships preconfigured for plug-and-play use with Thrust brushless motors. Years of R&D and experience has culminated in this extremely reliable, efficient and robust ESC.



Features:

  • Selectable high voltage switching BEC (Battery Eliminator Circuit)
  • Powerful and reliable SBEC – capable of 8 Amp peak
  • Smooth and accurate throttle linearity
  • New design larger efficient heat sink
  • Designed, tuned and optimized for Thrust™ motors
  • Fully programmable Microprocessor Controlled for all applications
  • User friendly interface for quick and easy hassle free programming
  • Exceptionally low resistance for efficient cool operation
  • High rate switching with high RPM brushless motor support
  • Advanced programming software
  • Excellent warranty and support
  • Rugged surface mount industry grade components for added reliability and crash durability

Quantum ESC allows you to program all functions to fit your specific needs, which makes it very efficient and user friendly:

  • Brake setting (we recommend using brake only for folding props applications)
  • Battery type (LiPo or NiCd/NiMh)
  • Low voltage cutoff setting
  • Factory default setup restore
  • Switching frequency
  • Low Voltage Cutoff type – LVC (power reduction or immediate shutoff)
  • Timing settings (to enhance ESC efficiency and smoothness)
  • Soft acceleration start ups (for delicate gearbox and helicopter applications)
  • Motor rotation (clockwise\counterclockwise)
  • Governor mode (for helicopter applications)

Built-in safety features:

  • Thermal overload protection
  • Automatic throttle shut-off if signal is lost
  • Power arming protection (to prevent accidental motor spool-up when switched ON)
  • ESC is equipped with audible alert tones to indicate abnormal conditions
