PHDWP23KG

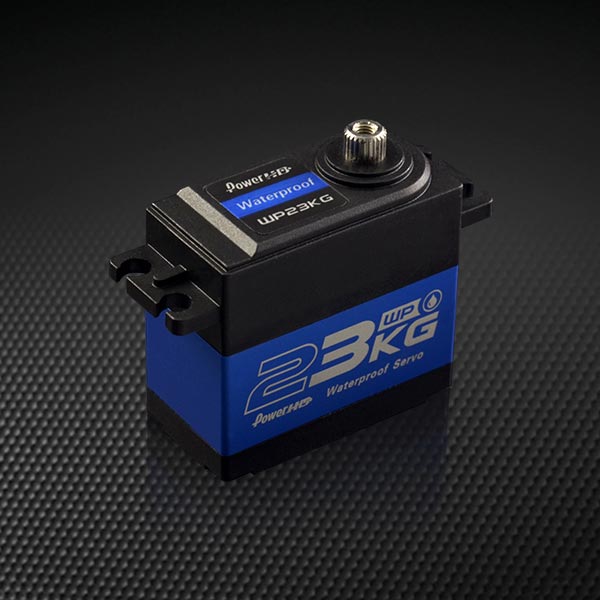

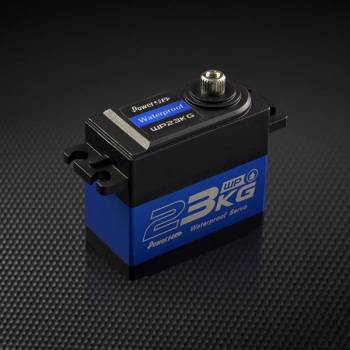

Power HD Waterproof Servo 320oz-in (23kg-cm) 0.12sec@6.0V

Product Info
PHDWP23KG
Power HD Waterproof Servo 320oz-in (23kg-cm) 0.12sec@6.0V
By POWERHD SERVOS
$79.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Analog
But only from... POWERHD SERVOS
All items from... POWERHD SERVOS


 Inventory Status Legend
StockStock availability for on-line ordering
1
$79.99
Warehouse ?
StockStock availability for pick up
1
$79.99
Warehouse ?
0
$79.99
Store - Stratford ?
1
$79.99
Store - Edmonton ?
1
$79.99
Store - Mississauga ?
1
$79.99
Store - Ottawa ?
1
$79.99
Store - Oshawa ?
1
$79.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
25 Tooth
Output Spline:
41 mm
Length:
21 mm
Width:
39 mm
Height:
75 g
Weight:
Titanium & Steel
Geartrain:
4.8 - 6.0 v
Voltage Range:
18 kg-cm (250 oz-in)
Torque @ 4.8V:
0.14 sec/60°
Speed @ 4.8V:
23 kg-cm (319.4 oz-in)
Torque @ 6.0V:
0.12 sec/60°
Speed @ 6.0V:

FEATURES

Please note: Power HD Servos use standard 25T spline (Futaba) servo arms. However we have found that some aluminum servo horns fit so tight, we had to use the servo horn screw to help seat it onto the servo. We suggest clamping type aluminum servo arms to help with this.
