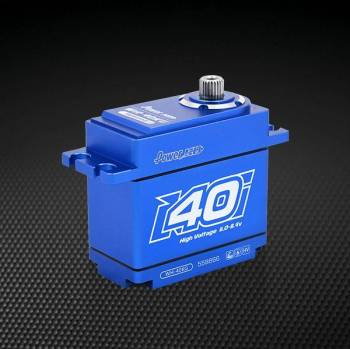

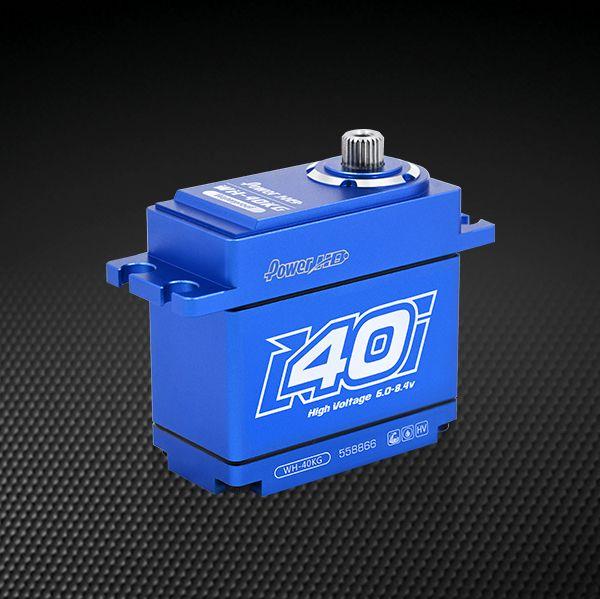

PowerHD WH-40KG Waterproof Servo 402oz/in @6V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Waterproof
Type:
Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
40.7 mm
Length:
20.5 mm
Width:
38.5 mm
Height:
82 g
Weight:
Titanium & Steel
Geartrain:
Coreless
Motor Type:
6.0 - 8.4 v
Voltage Range:
29 kg-cm (402.7 oz-in)
Torque @ 6.0V:
0.20 sec/60°
Speed @ 6.0V:
35 kg-cm (486.1 oz-in)
Torque @ 7.4V:
0.18 sec/60°
Speed @ 7.4V:
40 kg-cm (556 oz-in)
Torque @ 8.4V:
0.17 sec/60°
Speed @ 8.4V:
click image to enlarge
