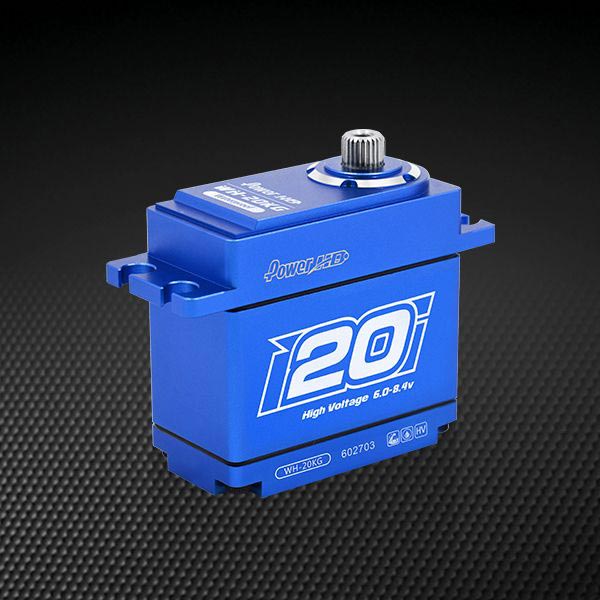

WH-20KG Waterproof Servo 20KG
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Ball Bearing x 2
Bearing:
40.7 mm
Length:
20.5 mm
Width:
38.5 mm
Height:
82 g
Weight:
Titanium & Steel

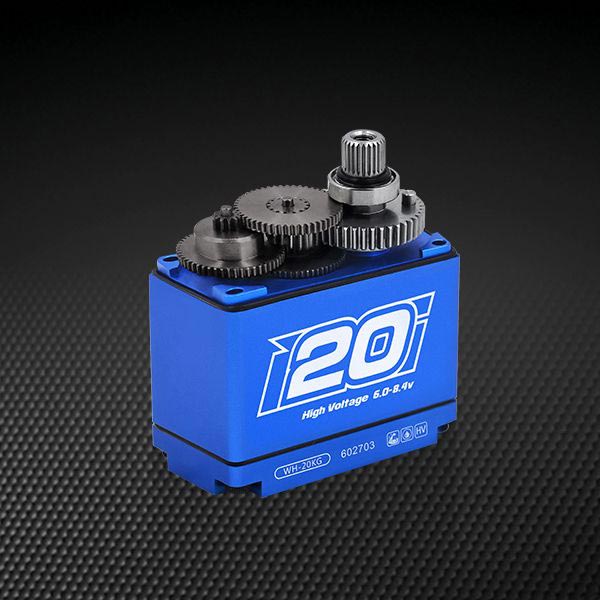

Geartrain:
Coreless
Motor Type:
6.0 ~ 8.4 v
Voltage Range:
15 kg-cm (208 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
18 kg-cm (250 oz-in)
Torque @ 7.4V:
0.09 sec/60°
Speed @ 7.4V:
20 kg-cm (277.75 oz-in)
Torque @ 8.4V:
0.08 sec/60°
Speed @ 8.4V:
click image to enlarge

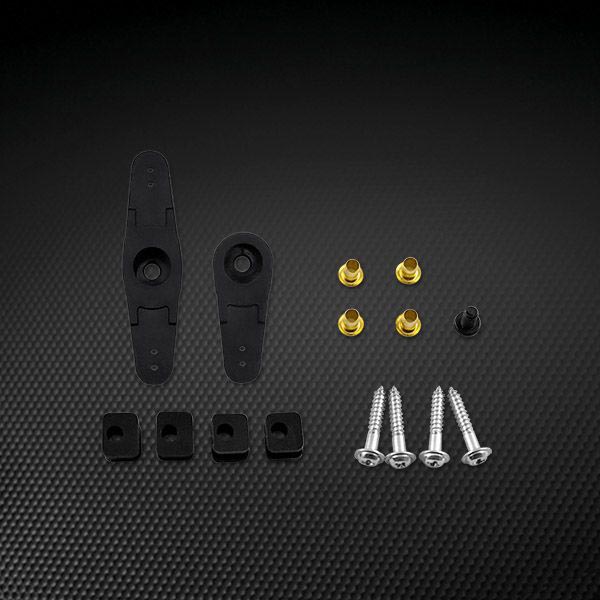

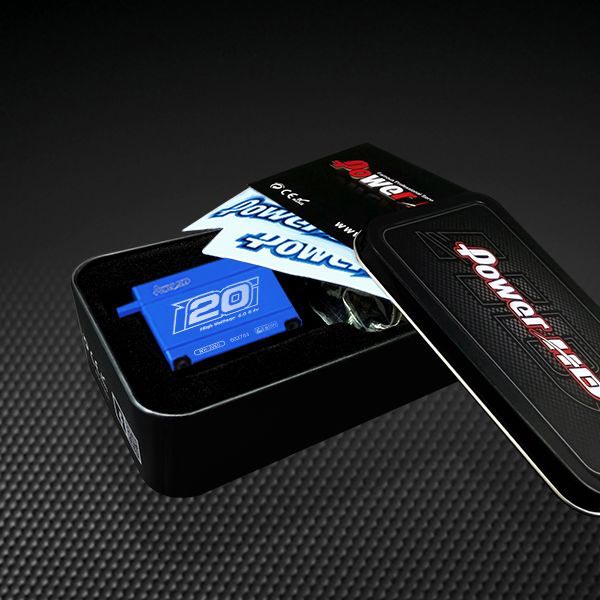

ADDITIONAL PHOTOS
|
|
|
PRODUCT RESOURCES
6929130020204 6929130020204
PHDWH-20KG
