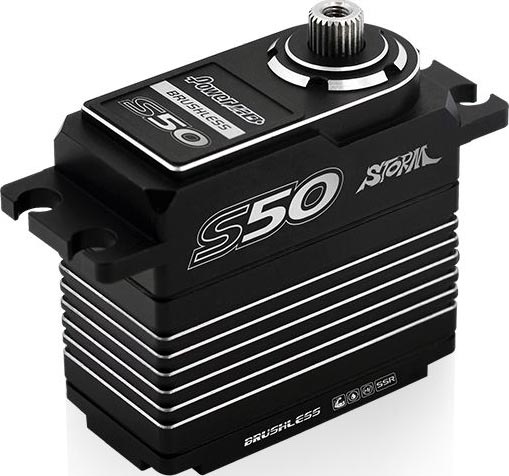

Storm S50 HV Brushless Digital Servo w/Titanium Gears 50
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Ball Bearing x 2
Bearing:
40.7 mm
Length:
20.5 mm
Width:
38.2 mm
Height:
75 g
Weight:
Titanium & Steel
Geartrain:
Brushless
Motor Type:
6.0 - 8.4 v
Voltage Range:
38 kg-cm (528 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
45 kg-cm (625 oz-in)
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:
50 kg-cm (694.4 oz-in)
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:
click image to enlarge

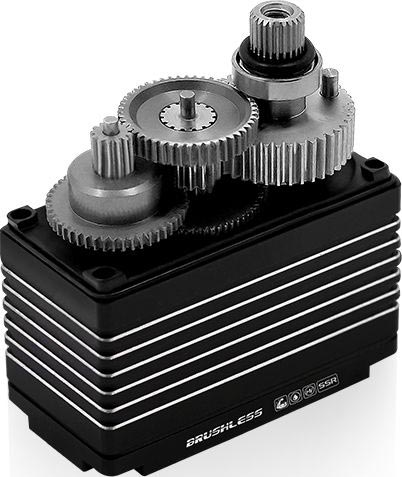

ADDITIONAL PHOTOS
|
6929138050012 6929138050012
PHDSTORM-S50
