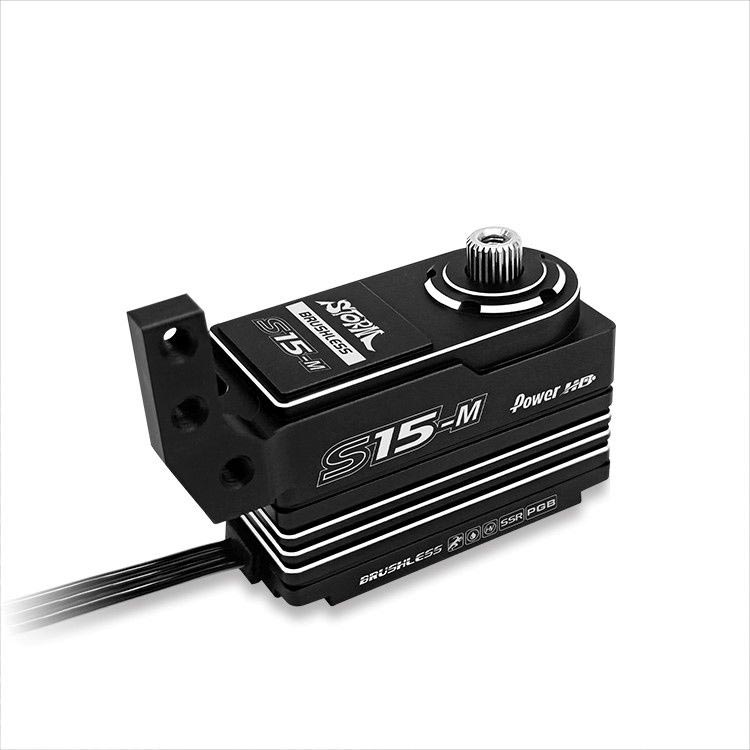

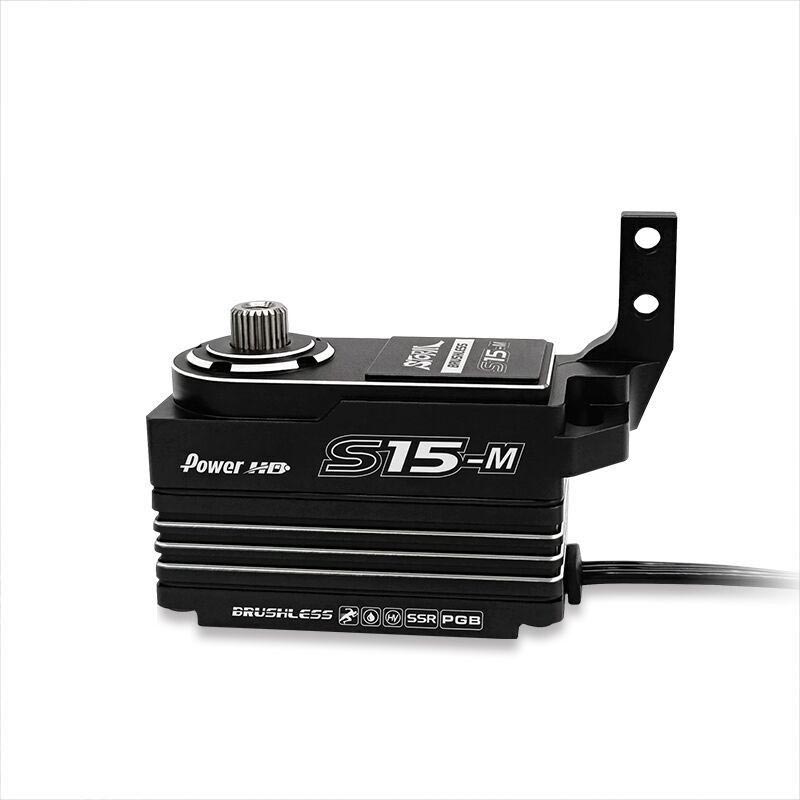

Storm S15-X Low Profile HV Brushless Digital Servo w/Tit
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
41 mm
Length:
20 mm
Width:
26 mm
Height:
58 g
Weight:
Titanium & Steel
Geartrain:
6.0 - 8.4 v
Voltage Range:
11.5 kg-cm (159.71 oz-in)
Torque @ 6.0V:
0.072 sec/60°
Speed @ 6.0V:
15 kg-cm (208 oz-in)
Torque @ 7.4V:
0.060 sec/60°
Speed @ 7.4V:
16.5 kg-cm (229.1 oz-in)
Torque @ 8.4V:
0.05 sec/60°
Speed @ 8.4V:
click image to enlarge
ADDITIONAL PHOTOS
|
PHDSTORM-S15-M
