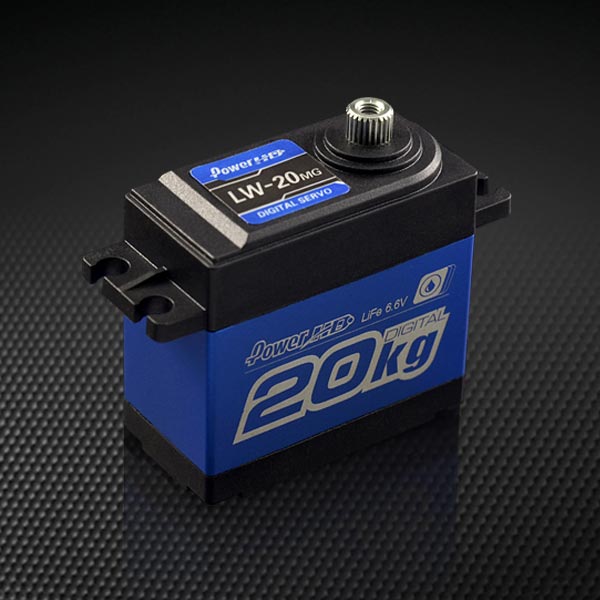

Power HD Digital Waterproof Servo 277oz-in (20kg-cm) 0.16sec@6.0V
|
click to enlarge
|
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital Waterproof
Type:
Dual ball bearing
Bearing:
25 Tooth
Output Spline:
40.7 mm
Length:
20.5 mm
Width:
39.5 mm
Height:
60.0 g
Weight:
Copper & Aluminum
Geartrain:
4.8 - 6.6 v
Voltage Range:
16.5 kg-cm (229.1 oz-in)
Torque @ 4.8V:
0.18 sec/60°
Speed @ 4.8V:
20 kg-cm (277.75 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
FEATURES
Please note: Power HD Servos use standard 25T spline (Futaba) servo arms. However we have found that some aluminum servo horns fit so tight, we had to use the servo horn screw to help seat it onto the servo. We suggest clamping type aluminum servo arms to help with this. Additionally, due to distributor warranty policy, Power HD servos are considered "deal direct", where customers will have to contact the manufacturer directly to request help with warranty repairs and replacements.
