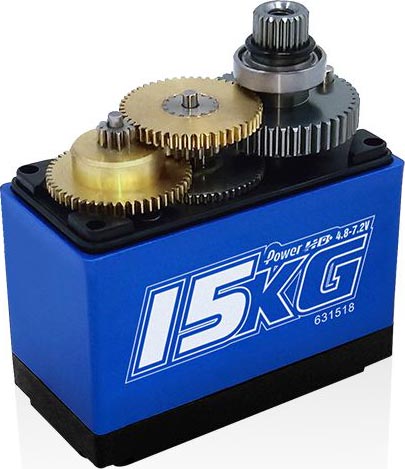

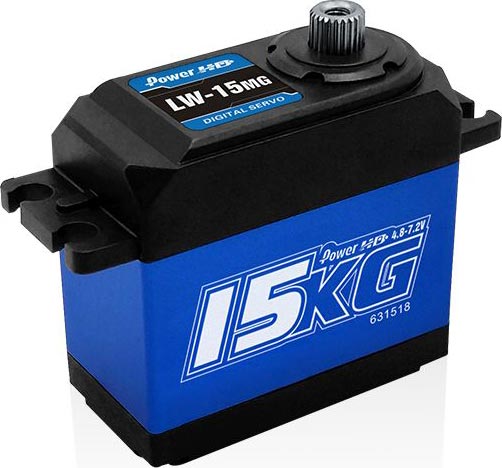

LW-15MG Digital Waterproof Servo 15KG 0.11sec@7.2V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
40 mm
Height:
62 g
Weight:
Copper & Aluminum
Geartrain:
4.8 - 7.2 v
Voltage Range:
12.5 kg-cm (173.6 oz-in)
Torque @ 6.0V:
0.13 sec/60°
Speed @ 6.0V:
15 kg-cm (208 oz-in)
Torque @ 7.2V:
0.11 sec/60°
Speed @ 7.2V:
