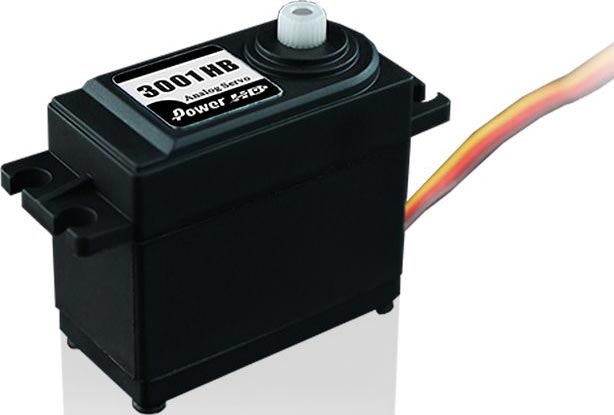

HD-3001HB Analog Servo 4.4KG 0.12Sec@6.0V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Ball Bearing x 2
Bearing:
40.7 mm
Length:
20.5 mm
Width:
39.5 mm
Height:
43 g
Weight:
Plastic
Geartrain:
4.8 - 6.0
Voltage Range:
3.5 kg-cm (48.61 oz-in)
Torque @ 4.8V:
0.14 sec/60°
Speed @ 4.8V:
4.4 kg-cm (61.1 oz-in)
Torque @ 6.0V:
0.12 sec/60°
Speed @ 6.0V:
click image to enlarge

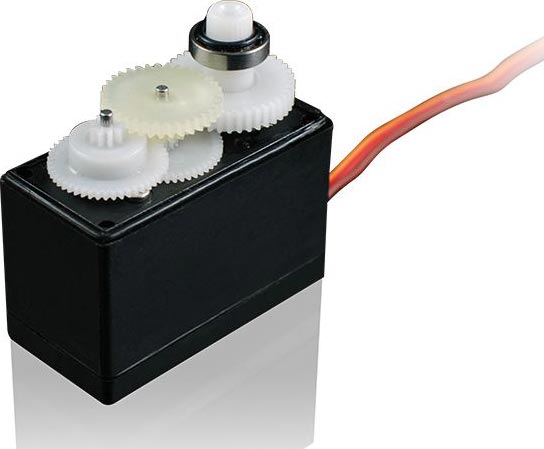

ADDITIONAL PHOTOS
|
A693957020098 A693957020098
PHDHD-3001HB
