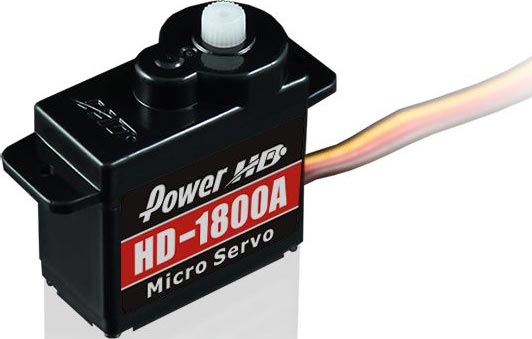

HD-1800A Analog Micro Servo 1.3KG 0.08Sec@6.0V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Bushing
Bearing/Bushing:
20.8 mm
Length:
11.6 mm
Width:
26.5 mm
Height:
8 g
Weight:
Plastic
Geartrain:
Coreless
Motor Type:
4.8 - 6.0 v
Voltage Range:
1 kg-cm (13.8 oz-in)
Torque @ 4.8V:
0.11 sec/60°
Speed @ 4.8V:
1.3 kg-cm (18 oz-in)
Torque @ 6.0V:
0.08 sec/60°
Speed @ 6.0V:
6953524540085 6953524540085
PHDHD-1800A
