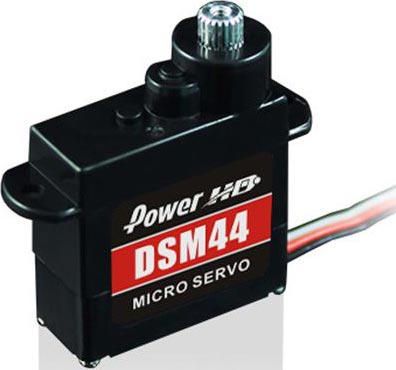

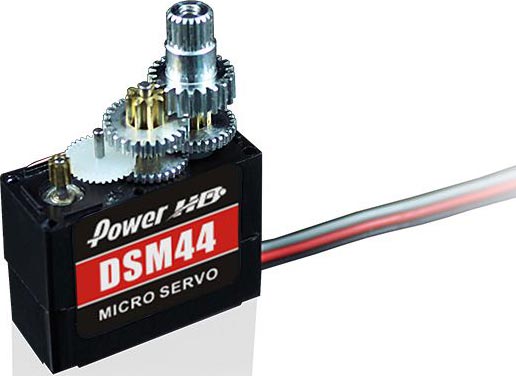

DSM44 Digital Micro Servo 1.6KG 0.07Sec@6.0V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Ball Bearing x 1
Bearing/Bushing:
20.2 mm
Length:
8.7 mm
Width:
24.0 mm
Height:
5.8 g
Weight:
Aluminum
Geartrain:
Coreless
Motor Type:
4.8 - 6.0 v
Voltage Range:
1.2 kg-cm (16.7 oz-in)
Torque @ 4.8V:
0.09 sec/60°
Speed @ 4.8V:
1.6 kg-cm (22 oz-in)
Torque @ 6.0V:
0.07 sec/60°
Speed @ 6.0V:
