OSMFT160

OS FT-160 Twin 4-C

OS ENGINES

OSMFT160
OS FT-160 Twin 4-C
By OS ENGINES
$1,529.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... 4-C Glow Aircraft Motors Multi-Cylinder
But only from... OS ENGINES
All items from... OS ENGINES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$1,529.99
Warehouse ?
StockStock availability for pick up
0
$1,529.99
Warehouse ?
0
$1,529.99
Store - Stratford ?
0
$1,529.99
Store - Edmonton ?
0
$1,529.99
Store - Mississauga ?
0
$1,529.99
Store - Ottawa ?
0
$1,529.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Piston Pin Ret - 61RXSX
$5.99

Exh/In Pipenut - F90-240
$5.99

Carb O-Rings - FS48 Surpass
$5.99

Woodruff Key - 120-240
$5.99
Int Manifold - T120/160
$54.99

Cylinder Liner - F91 160 320
$54.99

Exhaust Pipe - 120-240
$24.99

4-Cycle Gauges & Tools Kit
$18.99
SPECIFICATIONS
2 x 0.809 cu in
Displacement:
1.091 in
Bore:
0.866 in
Stroke:
38.8 oz
Weight:
2,000 to 10,000 rpm
RPM Range:
5/16-24
Crankshaft Thread:

FEATURES

This is a large bore version of the FT-120 II Gemini Twin. these two engine, superseding the original FT-120 Gemini model, were completely redesigned to take advantage of five years experience with the manufacture and operation of the original model. The Gemini FT-160 has a displacement of 26.5cc (1.62 cu in) and offers greatly improved performance. Features include: pushrod over-head valve; five ball bearings; ringed pistons; and special propeller locknut assembly. Glow plugs are included.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

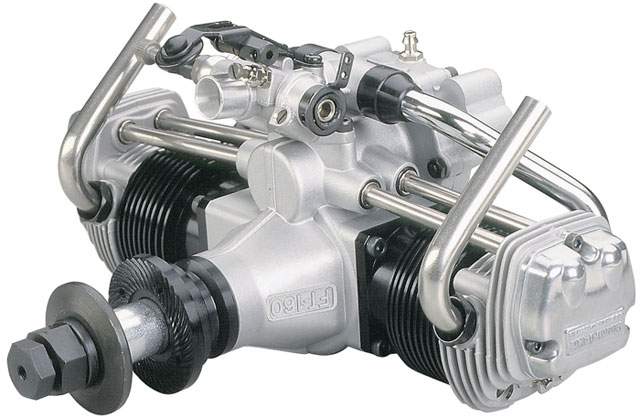

         This is a FT-160 Twin-Cylinder 4-Stroke Engine from O.S. Max.
This Engine is a Flat (Opposed) Twin-Cylinder Engine, called the "Gemini-160".
It is Scale-Like in Appearance when Installed in a Piper Cub or Citabria.

FEATURES: 3-Crankshaft ball bearings
2-Camshaft ball bearings
Twin opposed cylinders
Ringed piston
Geared camshaft (geared timing)
New Two needle carb (OSMG2538)
Two-year warranty

INCLUDES: One Assembled FT-160 Twin Engine
One Motor Mount (OSMG2804) with mounting hardware
One Instruction Manual w/Decals and Poster
One Dual Glow Plug Extension Cable
One Locking Prop Nut Assembly
Two #F Glow Plugs (installed)
One gauge tools set
One choke valve extension (rod)

SPECS: Construction: Aluminum and Aluminum alloys
Displacement: 13.26cc (x2) or .809 cu in (x2)
Bore: 27.7mm (1.09")
Stroke: 22.0mm (.866")
Power Output: 2.0 BHP at 10,000 RPM
Weight: 1100g (38.8oz)
Practical RPM Range: 2,000 - 10,000 RPM
Length: 120mm (4.72") from backplate to front of the drive washer
Width: 196mm (7.72")
Height: 80mm (3.15")
Crankshaft Thread Size: 5/16-24
Suggested Props: 15x8, 16x6, 18x6, 18x7, 18x8, 20x6

Width (outer cylinder jacket to outer cylinder jacket): 120mm (4.72")


Needle Settings: High Speed: 3.5 turns out from fully closed
Mixture Control (low speed): Flush with carb body,then 2 turns
in.

REQUIRES: Glow fuel with at least 16% lubricant content

COMMENTS: No longer includes needle valve extension, knob and hook,
M3x32 propeller slippage screws, motor mount template, or spare
Woodruff key.
7/27/93
ir/jl
updt lmm 4/6/09
