OSMFS62V

OS FS-62V 4-Cycle Engine

Product Info | Replacement Parts
OS ENGINES

OSMFS62V

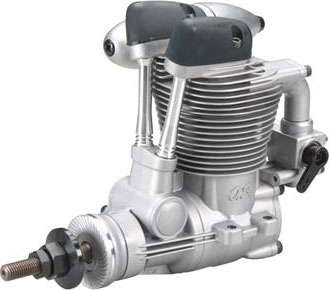

OS FS-62V 4-Cycle Engine
By OS ENGINES
$389.99 CAD
Order Quantity:
No Picture Available

More like this... 4-C Glow Aircraft Motors
But only from... OS ENGINES
All items from... OS ENGINES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$389.99
Warehouse ?
StockStock availability for pick up
0
$389.99
Warehouse ?
0
$389.99
Store - Stratford ?
0
$389.99
Store - Edmonton ?
0
$389.99
Store - Mississauga ?
0
$389.99
Store - Ottawa ?
0
$389.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
OS #F Glow Plug 4-Stroke
$14.99

Throttle Lever
$5.99

O-Ring for Needle Valve (2)
$7.99

Ratchet Spring
$5.99
Carb O-Rings - FS48 Surpass
$5.99

Valve Spring FS70 SII
$5.99

Ball Bearing Front - FS48
$24.99

Prop Locknut - FS40/48 Surpass
$19.99
SPECIFICATIONS
0.617 cu in
Engine Displacement:
0.98 in
Bore:
0.81 in
Stroke:
2,400 - 11,000 RPM
RPM Range:
15.6 oz
Engine Weight:
1.55 oz
Muffler Weight:
1.12 hp 11,000 RPM
Claimed Output:

FEATURES
  • New head design with angled valve layout and individual valve covers
  • Machined aluminum pushrod guides.
  • Jet stream silencer produces an authentic exhaust sound that is ideal for scale airplanes.
  • Same mounting dimensions as the O.S. 56FS-a.
  • Carburetor is reversible 180° and mounted on the center line, making it easy to install in a variety of models.
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
 This is the FS62V Four Stroke Ringed Engine with Muffler from O.S. Engines.

FEATURES: New head design with angled valve layout and individual valve covers
Machined aluminum pushrod guides
Jet stream silencer produces an authentic exhaust sound that is
ideal for scale airplanes
Same mounting dimensions as the O.S. 56FS-a
Carburetor is reversible 180 and mounted on the center line, making
it easy to install in a variety of models
Two year limited warranty beginning at date of purchase

INCLUDES: FS62V Engine with "F" Glow Plug, Jet Stream Silencer, Header and
Instruction Manual

REQUIRES: Fuel: 5-20% nitro with 18% lubricant content
Propeller: Sport & aerobatic; 12x7-8, 13x6
Scale; 13x7-8, 14x6
(break-in engine with prop intended for use on model)
Electric starter, glow starter and field equipment

SPECS: Displacement: 0.617cu in (10.11cc)
Bore: 0.98" (25.0mm)
Stroke: 0.81" (20.6mm)
Practical RPM: 2400 - 11,000
Power Output: 1.1 PS, 1.08 HP/11,000 rpm
Engine Weight: 15.6oz (442g)
Muffler Weight: 1.55oz (44g)
Cranshaft Size: 1/4-28
Distance between Mounting Hole Centers Same Side: 0.69" (17.5mm)
Distance between Mounting Hole Centers Opposite Side: 1.7" (44mm)
Length between Front Mounting Hole and Drive Washer: 2" (51.3mm)
Width at Mounting Tabs: 2" (51mm)
Crankcase Width Below Mounting Tabs: 1.3" (34.1mm)
Height from Mounting Tab to top of Valve Cover: 3.4" (87.4mm)
Height from Crankcase Bottom to top of Valve Cover: 4.1" (105.1mm)
Length from Drive Washer to Center of Engine: 2.4" (60mm)
Length from Drive Washer to Crankshaft End: 1.4" (35.5mm)
Distance/Crankshaft Center to Throttle Lever Center: 1.02" (26mm)
Carburetor Settings-
Needle Valve: 3 - 3.5 turns from fully closed
Mixture Control Valve: 45 clockwise to lean the idle mixture,
turn 90 counterclockwise to substantially enrich mixture, then
back 45
