OSMFS1203

OS FS-120 Surpass III w/Pump

OS ENGINES

OSMFS1203

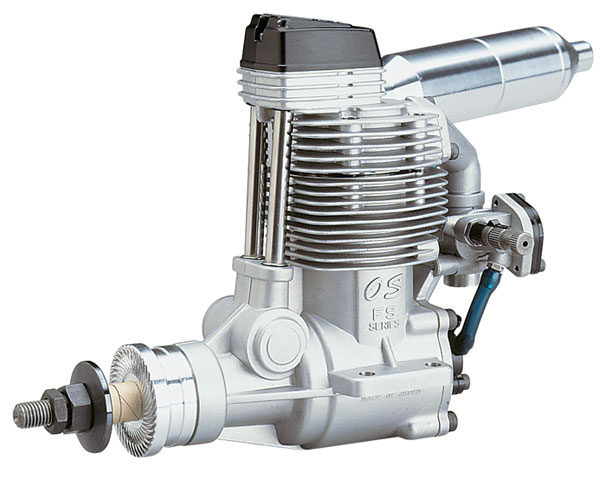

OS FS-120 Surpass III w/Pump
By OS ENGINES
$689.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... 4-C Glow Aircraft Motors 1.10 to 1.50
But only from... OS ENGINES
All items from... OS ENGINES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$689.99
Warehouse ?
StockStock availability for pick up
0
$689.99
Warehouse ?
0
$689.99
Store - Stratford ?
0
$689.99
Store - Edmonton ?
0
$689.99
Store - Mississauga ?
0
$689.99
Store - Ottawa ?
0
$689.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
OS #F Glow Plug 4-Stroke
$14.99

Motor Mount - FS120 Surpass
$59.99

Bearing Rear FS120III
$42.99

Woodruff Key - 120-240
$5.99
4-Cycle Gauges & Tools Kit
$18.99

Locknut Set for Spinner FS91S
$32.99

Rocker Cover FS120III
$24.99

Intake Manifold Assy FS120III
$42.99
SPECIFICATIONS
1.218 cu in
Displacement:
1.197 in
Bore:
1.083 in
Stroke:
34.6 oz
Weight:
2.1 @ 12,000
Output:
2,000 to 12,000 rpm
RPM Range:
5/16-24
Crankshaft Thread:
1.85 in
Beam Width:

FEATURES

OS developed the Surpass Series of 4-cycle engines for discerning fliers who demand more power. All Surpass engines feature a helix gear driven camshaft on the front end and newly designed updraft carbs in the back. Enlarged intake valves and stronger working parts yield superior compression and improved output in the power stroke. OS Surpass 4-cycle engines provide the best performance for your plane, regardless of scale or flying style.

The FS-120 II Surpass is similar to the FS-120SP, but without the supercharger. Like the FS-120SP, however, it is equipped with a fuel pump and a special carburettor with built-in fuel pressure regulator to ensure maximum reliable performance under stringent contest conditions, irrespective of fuel tank position. Features OS Type PG-03 gear type fuel pump; Type C13 carburettor with built-in pressure regular; four ball bearings; and special propeller safety locknut assembly. Muffler and glow plug included.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
     This is one of the O.S. Surpass series of 4-stroke model engines.
The Surpass series is the 2nd series of 4-stroke engines (The 1st series was
the FS series, discontinued and replaced by the Surpass series around 1986-7).
"Surpass" refers to this series gaining 30% more power than the previous
FS series.

FEATURES: Specially developed PD-07 pump
New 70N carb
Ball bearing-supported camshaft and crankshaft
New F-5020 Silencer
Two year warranty

INCLUDES: One Assembled Engine w/Carburetor and #F Glow Plug
One Muffler w/Manifold
One Set of Instructions, O.S. Poster, and Decal
(Mounting Template Is No Longer Included per O.S.)
One additional coarse needle for less sensitive carb adjustment.

REQUIRES: Fuel: 5%-15% nitromethane with 18% lubricant. Synthetic, castor, or
a synthetic/castor blend may be used.
NOTE: Certain four-cycle fuels cannot be used due to low oil content.
However, SOME four-cycle fuels such as the Wildcat 4-Cycle 15%
(CATP9109) may be used because it has 18% oil content.
When choosing fuels for this engine, the modeler must be sure to
select a fuel with at least a 18% lubricant content.
Starting and Field Equipment.
Propeller (see SPECS)

SPECS: Bore: 30.4mm (1.20")
Stroke: 27.5mm (1.08")
Power Output: 2.1 PS, 2.07 HP at 12,000 RPM
Practical RPM Range: 2,000 - 12,000 RPM
Weight-Without Muffler: 32.5oz (921g)
Weight-With Muffler: 35.3oz (1000g)
Crankshaft Thread Size: 5/16-24
Valve Clearance: Between .04mm and .1mm (or between .0015" and .004",
measured between the valve tip and rocker arm)
Length: 102mm (4.09") from backplate to the front of the drive washer
Width: 47mm (1.85") width of engine neglecting the mounting flanges
58mm (2.28") distance between the mounting hole centers
Height: 139.5mm (5.49")
Suggested Prop(s): 14x9, 14x10, 14x11, 15x8, 15x9, 15x10, 16x6,
Construction: Aluminum and Aluminum alloys

Needle Settings: High Speed: 1.5 turns out from fully closed
Low Speed: 2.5 turns out from fully closed with the
throttle fully closed

COMMENTS: Some differences between 2-Stroke and 4-Stroke engines:
4-Strokes are quieter.
4-Strokes get better Fuel Economy
2-Strokes generate More RPM (11,000-13,000 RPM with prop
and 4-Strokes rev to around 9,500 RPM)
4-Strokes generate much more torque and will swing a larger prop.
4-Strokes have a more realistic sound, like a real aircraft engine.

The new Surpass engines (Version II and III) have more power than
their predecessors and they also have more corrosion prevention
on the inside of the crankcases.
5-7-97 djg
ir/jl
updt lmm 3/31/09
