ONXP2343

LiPo 3S 11.1V 3300mAh 30C Star Plug

Product Info | Optional Items
ONXP2343
LiPo 3S 11.1V 3300mAh 30C Star Plug
By ONYX
$69.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Lithium Batteries, 3 Cell
But only from... ONYX
All items from... ONYX

Special Blue Dot Clearance

Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.
Lithium Polymer Batteries

Lithium Polymer batteries can only be shipped by ground services within Canada.

 Inventory Status Legend
StockStock availability for on-line ordering
1
$69.99
Warehouse ?
StockStock availability for pick up
1
$69.99
Warehouse ?
0
$69.99
Store - Charlottetown ?
0
$69.99
Store - Edmonton ?
0
$69.99
Store - Mississauga ?
0
$69.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Li-Po Voltage Checker w/ Integrated Alarm
$11.99

Team Great Hobbies Li-Po Charging Bag
$19.99

Li-Po Voltage Checker w/ 5V USB Out
$16.99





click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

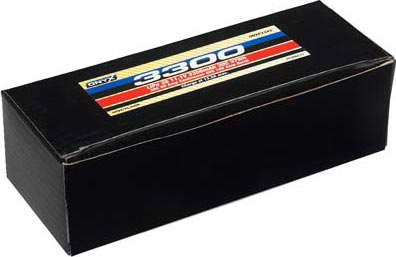

    This is the Onyx LiPo 3S 11.1V 3300mAh 30C Battery with Star Connector.

FEATURES: Ultrasonically welded cell tabs and balancing wires
2-year limited warranty-Onyx brand batteries are warranted to be
free from defects in materials and workmanship for a period of two
years from the date of purchase. During the first twelve months,
ONYX will, at our discretion, repair or replace without service
charge any product deemed inoperable due to those causes.
After the first full year of warranty coverage ONYX will provide
extended warranty coverage for another 12 months covering only
defects in materials and workmanship. Extended coverage is limited
and does not cover problems caused by abuse, misuse, and improper
maintenance, failure to follow instructions, ordinary wear, or use
past the battery's maximum rated number of cycles.

INCLUDES: Onyx LiPo 3S 11.1V 3300mAh 30C Battery with Star Connector and JST-XH
Balancing Connector

REQUIRES: LiPo compatible charger
LiPo charging bag

SPECS: Voltage Rating: 11.1V
Rated Capacity: 3300mAh
Maximum Charge Rate: 13.2A/4C
Discharge Rate: 30C
Burst Rate: 60C, 198A
Dimensions, L, W, H: 5.2 x 1.7 x 0.87 (132 x 43 x 22mm)
Weight: 9.5oz (270g)
Discharge Lead Wire Size: 12AWG
Discharge Lead Length: 4" (102mm) not including connector
Discharge Connector: Star
Balancing Connector: JST-XH
Watt Hours: 37

COMMENTS: ALWAYS use a LiPo-approved Charger and Cell Balancer
NEVER Charge over 4.2V per cell
NEVER Charge at currents greater than 4C
NEVER Trickle Charge
NEVER allow to Discharge below 2.5V per cell
NEVER disassemble or modify pack wiring in any way or puncture cells
NEVER place on combustible materials or leave unattended during
charging
ALWAYS Charge in a fireproof location
ALWAYS set charger's output volts to match battery volts
ALWAYS keep out of reach of children
All weights include wire leads and plugs
All weights +/- 1 g
All measurements +/- 1 mm

jxs 02/20/18
