ONXP1790

LiPo 3S 11.1V 800mAh 25C Star Plug

Product Info | Optional Items
ONXP1790
LiPo 3S 11.1V 800mAh 25C Star Plug
By ONYX
$29.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Lithium Batteries, 3 Cell
But only from... ONYX
All items from... ONYX

Lithium Polymer Batteries

Lithium Polymer batteries can only be shipped by ground services within Canada.

 Inventory Status Legend
StockStock availability for on-line ordering
4
$29.99
Warehouse ?
StockStock availability for pick up
4
$29.99
Warehouse ?
0
$29.99
Store - Charlottetown ?
0
$29.99
Store - Edmonton ?
0
$29.99
Store - Mississauga ?
0
$29.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Li-Po Voltage Checker w/ Integrated Alarm
$11.99

Team Great Hobbies Li-Po Charging Bag
$19.99

Li-Po Voltage Checker w/ 5V USB Out
$16.99





click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

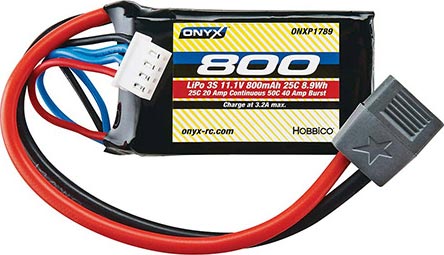

    This is the Onyx 3S 11.1V 800mAh 25C LiPo Battery with Star Connector.

FEATURES: Ultrasonically welded cell tabs and balancing wires
2-year limited warranty-Onyx brand batteries are warranted to be
free from defects in materials and workmanship for a period of two
years from the date of purchase. During the first twelve months,
ONYX will, at our discretion, repair or replace without service
charge any product deemed inoperable due to those causes.
After the first full year of warranty coverage ONYX will provide
extended warranty coverage for another 12 months covering only
defects in materials and workmanship. Extended coverage is limited
and does not cover problems caused by abuse, misuse, and improper
maintenance, failure to follow instructions, ordinary wear, or use
past the battery's maximum rated number of cycles.

INCLUDES: Onyx 3S 11.1V 800mAh 25C LiPo Battery with Star Connector and JST-
XH Balancing Plug

REQUIRES: LiPo compatible charger
LiPo charging bag

SPECS: Voltage Rating: 11.1V
Rated Capacity: 800mAh
Maximum Charge Rate: 3.2A/3C
Discharge Rate: 25C
Burst Rate: 50C, 40A
Dimensions, L, W, H: 2.04 x 1.2 x 0.94" (52 x 30 x 24mm)
Weight: 2.8oz (80g)
Discharge Lead Wire Size: 14AWG
Discharge Lead Length: 4" (102mm) not including connector
Discharge Connector: Star
Balancing Connector: JST-XH
Watt Hours: 8.9

COMMENTS: ALWAYS use a LiPo-approved Charger and Cell Balancer
NEVER Charge over 4.20V per cell
NEVER Charge at currents greater than 3C
NEVER Trickle Charge
NEVER allow to Discharge below 2.5V per cell
NEVER disassemble or modify pack wiring in any way or puncture cells
NEVER place on combustible materials or leave unattended during
charging
ALWAYS Charge in a fireproof location
ALWAYS set charger's output volts to match battery volts
