ONXP0981

LiPo 1S 3.7V 850mAh 25C JST RCY Plug

Product Info
ONXP0981
LiPo 1S 3.7V 850mAh 25C JST RCY Plug
By ONYX
$13.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Lithium Batteries, 1 Cell
But only from... ONYX
All items from... ONYX

Lithium Polymer Batteries

Lithium Polymer batteries can only be shipped by ground services within Canada.

 Inventory Status Legend
StockStock availability for on-line ordering
6
$13.99
Warehouse ?
StockStock availability for pick up
6
$13.99
Warehouse ?
1
$13.99
Store - Charlottetown ?
3
$13.99
Store - Edmonton ?
2
$13.99
Store - Mississauga ?
4
$13.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.




VENDOR TECHNOTES

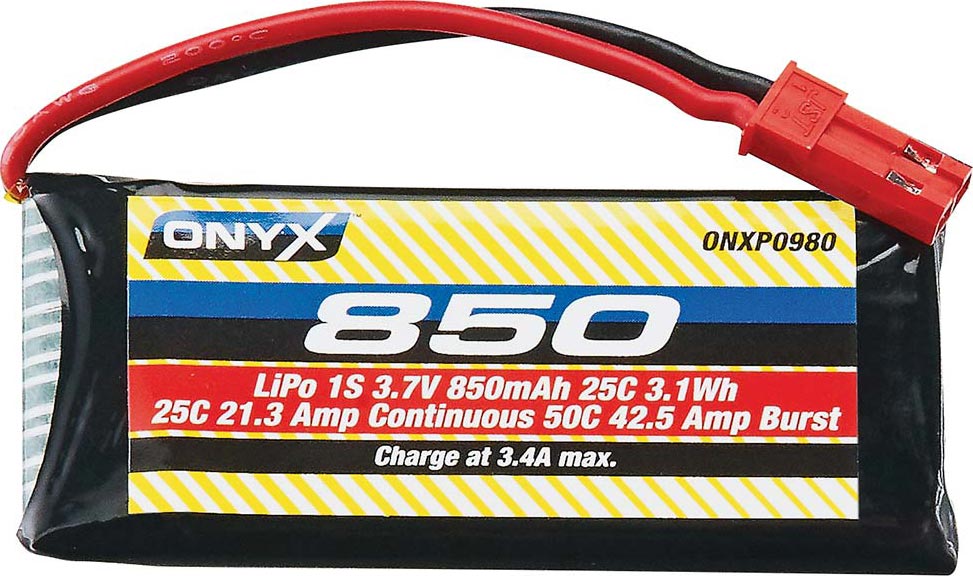

   This is the Onyx 1S 3.7V 850mAh 25C LiPo Battery with JST RCY Connector.

FEATURES: Ideal replacement battery for the Dromida Vista UAV and the Vista FPV
Ultrasonically welded cell tabs and balancing wires
2-year limited warranty-Onyx brand batteries are warranted to be
free from defects in materials and workmanship for a period of two
years from the date of purchase. During the first twelve months,
ONYX will, at our discretion, repair or replace without service
charge any product deemed inoperable due to those causes.
After the first full year of warranty coverage ONYX will provide
extended warranty coverage for another 12 months covering only
defects in materials and workmanship. Extended coverage is limited
and does not cover problems caused by abuse, misuse, and improper
maintenance, failure to follow instructions, ordinary wear, or use
past the battery's maximum rated number of cycles.

INCLUDES: Onyx 2S 11.1V 850mAh 25C LiPo Battery with JST RCY Connector

REQUIRES: LiPo compatible charger such as the 1S USB LiPo Battery Charger
with JST plug, DIDP1121

SPECS: Voltage Rating: 3.7V
Rated Capacity: 850mAh
Maximum Charge Rate: 3.4A
Discharge Rate: 25C
Burst Rate: 50C, 42.5A
Dimensions, L, W, H: 2.3 x 0.96 x 0.35" (58 x 24.5 x 9mm)
Weight: 0.88oz (25g)
Discharge Lead Wire Size: 20AWG
Discharge Lead Length: 2" (51mm) not including connector
Discharge Connector: JST RCY
Balancing Connector: None
Watt Hours: 3.1

COMMENTS: ALWAYS use a LiPo-approved Charger and Cell Balancer
NEVER Charge over 4.20V per cell
NEVER Trickle Charge
NEVER allow to Discharge below 2.5V per cell
NEVER disassemble or modify pack wiring in any way or puncture cells
NEVER place on combustible materials or leave unattended during
charging
ALWAYS Charge in a fireproof location
ALWAYS set charger's output volts to match battery volts
ALWAYS keep out of reach of children
All weights include wire leads and plugs
All weights +/- 1 g
All measurements +/- 1 mm

jxs 02/20/18
ir/jxs
