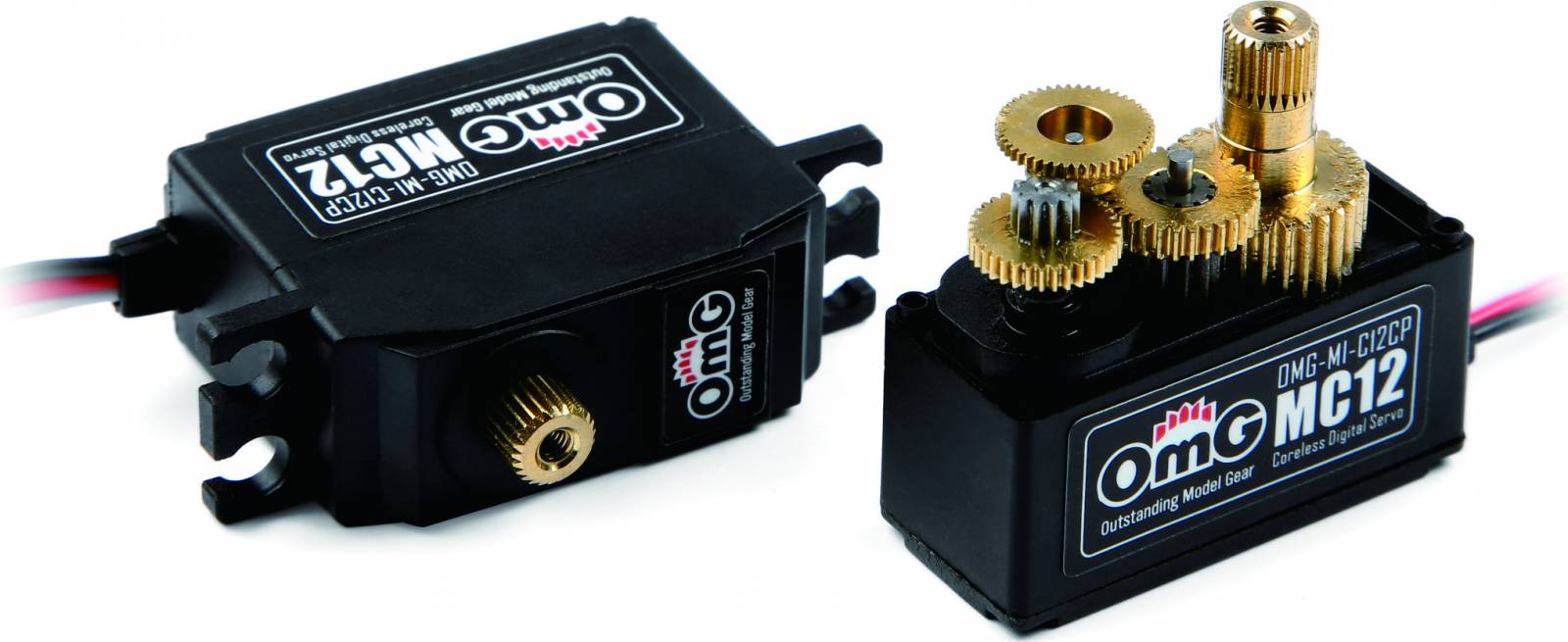

Servo Digital Coreless Mini CG 5.5KG Aircraft 30g
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Foam or Lightwood aircraft
Application:
25 Tooth
Output Spline:
35.9 mm
Length:
15.2 mm
Width:
28.6 mm
Height:
30 g
Weight:
Copper
Geartrain:
4.8 - 6.0 v
Voltage Range:
4.5 kg-cm (63 oz-in)
Torque @ 4.8V:
0.14 sec/60°
Speed @ 4.8V:
5.5 kg-cm (76 oz-in)
Torque @ 6.0V:
0.12 sec/60°
Speed @ 6.0V:
FEATURES
Fit for foam plane, Light wood aircraft .Full plastic cover, low voltage,mini cooper gear coreless digital servo.
MI-C12CP
