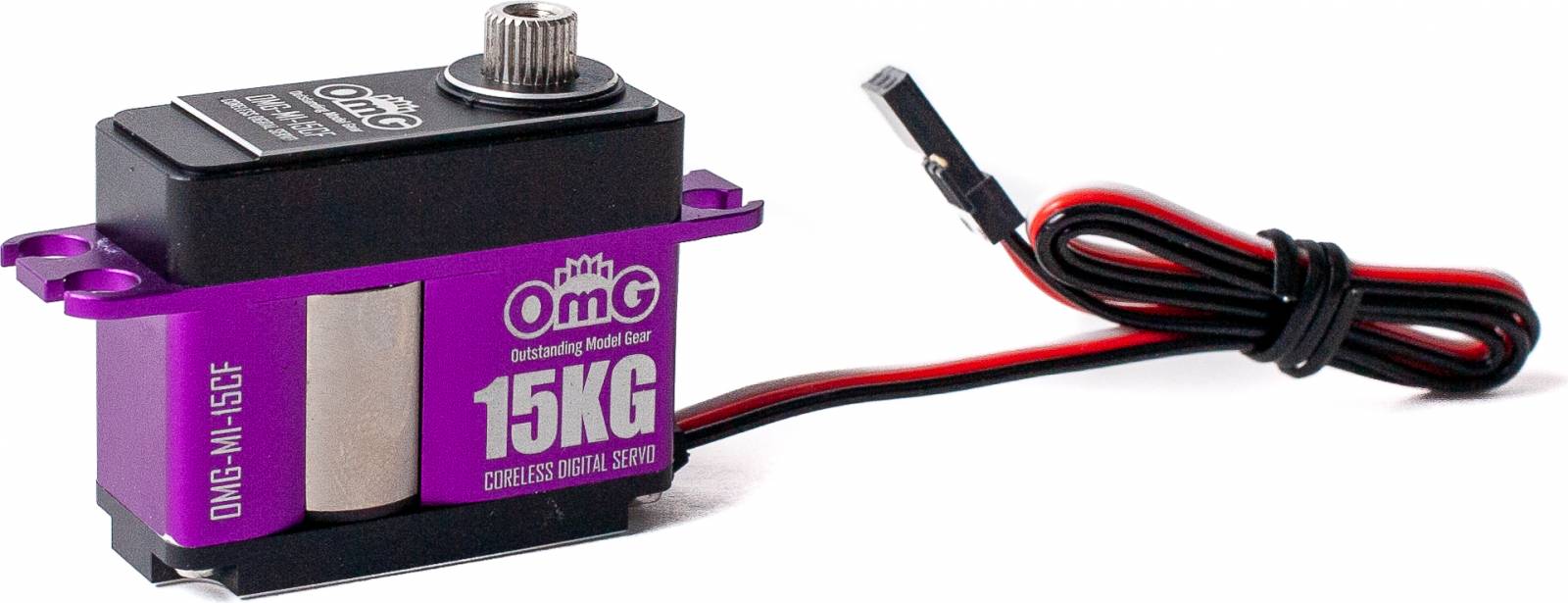

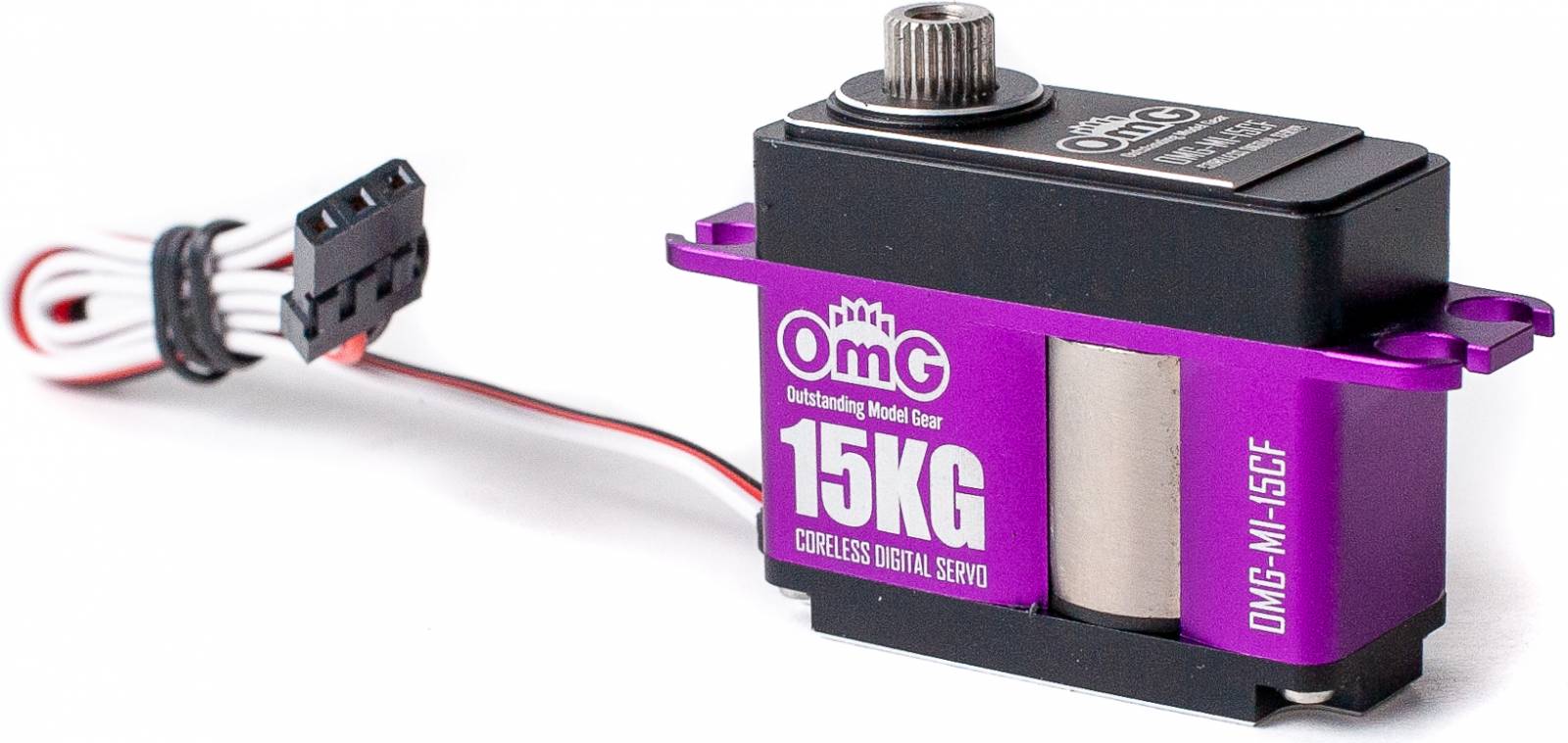

Servo Digital Coreless Mini MG 15KG Aircraft/Heli 41g
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Mini
Size Class:
Turbine Aircraft & Large scale glider
Application:
25 Tooth
Output Spline:
36 mm
Length:
15 mm
Width:
29 mm
Height:
41 g
Weight:
Alum/Titanium
Geartrain:
6.0 - 7.4 v
Voltage Range:
14.5 kg-cm (201 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
15.8 kg-cm (219 oz-in)
Torque @ 7.4V:
0.09 sec/60°
Speed @ 7.4V:
FEATURES
Fit for Turbine Aircraft & Large scale glider. Full metal coreless high voltage servo. Steel gear,middle scale.
