  • Two Decal Sheets Included: “Racer” and “Fighter”
  • Durable, Elapor® Foam Construction
  • Detachable Wing For Easy Transport
  • Crisp Handling and Accurate Response for Precise Aerobatics
  • Low Minimum Airspeed

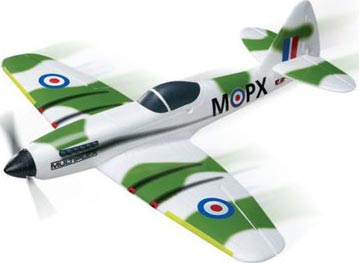

A fast and agile racer, the DogFighter, brings the old fashioned art of aerial combat to your local flying field. With crisp handling and precise response, this sporty flyer will tear through the skies with aerobatic mastery. Inspired by the classic warbirds of WWII, this compact speed demon was designed with the intermediate and sport flier in mind. Whether you are making striking runs at the club field or engaging in ferocious aerial combat, seize air superiority with the Multiplex DogFighter!

               This is the radio controlled, electric powered,
DogFighter Airplane Kit from Multiplex.
For intermediate to advanced fliers.

FEATURES: Construction: Elapor foam
Wing: One-piece, detachable for easy transport
Aileron Control: Dual servo
Spinner: Elapor foam, 2.5" (63.5mm) diameter, black in color
Decals: Two sheets, "Racer" or "Fighter" designs

INCLUDES: DogFighter Airplane Kit with Spinner, two Decal Sheets, Linkages,
Hardware and Instruction Manual

REQUIRES: Radio: 6-channel
Servos: Three micro (2-aileron, 1-elevator) one for optional rudder
control if desired
Extensions: Two 6" (150mm)
Motor: Brushless, Multiplex makes a Brushless Motor Power Pack
that includes a Himax Outrunner Brushless Motor with
Mounting Hardware, ESC and 10x7 prop specifically for this kit
Note, if using this Power Pack, three 4mm Female Bullet Connectors
(GPMM3119) must be soldered to the ESC motor leads to connect the
ESC to the existing connectors on the motor
Battery: 3S LiPo, at least 2200mAh
Battery Charger: Comptible with selected battery
Connector for ESC to mate with selected battery, see COMMENTS
Field equipment

SPECS: Wingspan: 35" (889mm)
Wing Area: 296 sq in (19.12 sq dm)
Wing Loading: 14.6oz/sq.ft (42.7g/sq.dm)
Fuselage Length: 32" (813mm)
Weight: 30oz (850.4g)
Center of Gravity (CG): 2.7" (68mm) from the leading edge of the
wing at the fuselage side
Control Throws-
Elevator, Up and Down: 0.27" (7mm)
Rudder, Left and Right: 0.79" (20mm)
Ailerons, Up 0.55" (14mm), Down 0.31" (8mm)

COMMENTS: When using the recommended FlightPower LiPo battery, solder a Deans
Male Ultra plug, WSDM1302 to the ESC. This connector will plug into
the Ultra Female plug on the FlightPower battery.

This model is NOT made of styrofoam and it is not possible to glue
Elapor foam using white or epoxy glue. Medium CA glue used with
an activator is the only method of gluing recommended by the

jxs 09/28/11
