MMWCL0820-171

8.5x20mm Micro Plane Motor "Insane" w/9T Pinion (1

Product Info | Substitutions
MMWCL0820-171

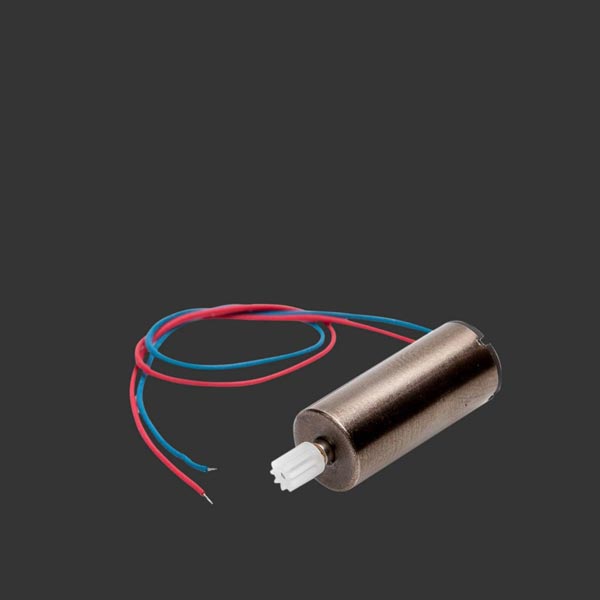

8.5x20mm Micro Plane Motor "Insane" w/9T Pinion (1
By MICRO MOTOR WAREHOUSE
$11.89 CAD    13.99
Save $2.10 (15%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Mutlirotor Motors
But only from... MICRO MOTOR WAREHOUSE
All items from... MICRO MOTOR WAREHOUSE

Special Blue Dot Clearance

Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.

 Inventory Status Legend
StockStock availability for on-line ordering
27
$11.89
Warehouse ?
StockStock availability for pick up
27
$11.89
Warehouse ?
2
$11.89
Store - Charlottetown ?
4
$11.89
Store - Edmonton ?
2
$11.89
Store - Mississauga ?
2
$11.89
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

Upgrade your UMX Plane.

The insane 0820-17, with 9T polymer pinions.

Compatible to micro planes with a 8.5mm motor mount and 9 teeth on the motor pinion.

With speed rating of 17.000Kv, this motors puts out more power than any other coreless motor of this size. Make sure your batteries and pilot skills are up to the challenge ;)

performance data:

speed: 17.000Kv
rotation direction: CW
operating voltage: 1.5-3.7V
factory lifetime rating: 5-6 hours

dimensions:

can diameter: 8.5mm
can length: 20mm
shaft diameter: 1mm
shaft length: 5mm
weight: 4.9g
