LEM0086T

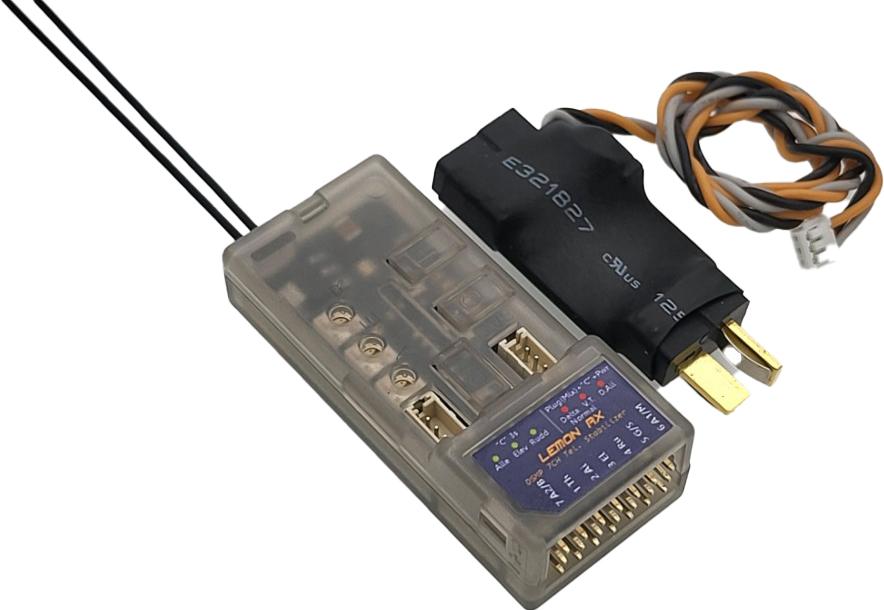

DSMP/X/2 7-Ch Receiver Tele/Stab/Energy T-Plug

Product Info
LEM0086T
DSMP/X/2 7-Ch Receiver Tele/Stab/Energy T-Plug
By LEMON RX
$59.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Radio System Accessories, Aircraft Receivers
But only from... LEMON RX
All items from... LEMON RX


 Inventory Status Legend
StockStock availability for on-line ordering
4
$59.99
Warehouse ?
StockStock availability for pick up
4
$59.99
Warehouse ?
0
$59.99
Store - Stratford ?
1
$59.99
Store - Edmonton ?
1
$59.99
Store - Mississauga ?
1
$59.99
Store - Ottawa ?
1
$59.99
Store - Oshawa ?
1
$59.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
55 mm
Length:
15 mm
Width:
23 mm
Height:
7 Channels
Channels:
DSMP
Modulation:
3.9 to 8.5 (2S LiPo capable) V
Voltage Range:

FEATURES
  • DSMX / DSM2 compatible, 7-channel full-range telemetry stabilizer with full telemetry features including a built-in barometer, altimeter, energy meter (Current, Voltage, mAh), and internal temperature sensor
  • High sensitivity gyro with proprietary stabilization algorithm ensures responsive airplane control for both electric and gasoline engine application
  • BEC1 and BEC2 dual inputs allow high-reliability operation while improving setup for high current drain performance servo
  • Built-in Delta, V-tail and Normal Wing mixer
  • Supports stabilization with separated channel dual aileron operation
  • Stabilization always-on feature
  • Real-time variable stabilization gain control on channel 8
  • All-channel failsafe
  • Firmware health monitoring software stack and ultra-low operational voltage (3.6V) ensure the highest hardware reliability
  • Generation 2 SDR stack ensures the fastest channel searching and advanced algorithm for signal recovery with ultra-low-latency experience
  • Antenna diversity improves the reliability of the wireless link
  • Satellite port for additional signal diversity
  • Gyro stabilization activation with either AUX2 or Gear channel
  • 3 potentiometers for individual gain tuning

The generation 2 DSMP 7-channel telemetry stabilizer is a complete redesign that provides the ultimate reliability, features and performance.
