SPECIFICATIONS
All-Star Versatility
Spray Performance Category:
Eclipse
Series:
Fine to Wide
Spray Scale:
25-35 psi
Optimal Working Pressure:
E3 - Needle, Nozzle, Nozzle Cap
Head System:
Compression Fit
Nozzle Type:
Side
Feed Style:
1.25 ml
Paint Capacity:
Dual
Action:
Single Cut
Handle Type:
0.19 lbs
Net Weight:
0.09 kg
Net Weight:
0.75 x 5.71 x 1.81 in
Assembled Dimensions:
19 x 145 x 46 mm
Assembled Dimensions:
FEATURES
Iwata Eclipse Series airbrushes are known for their versatility. Eclipse's high flow allows it to atomize a wider variety of liquids with less need for reducing or thinning. Eclipse Series offers a broad spray range, as compaired to other airbrushes, where it is possible to achieve a controlled fine line to controlled wide spray.

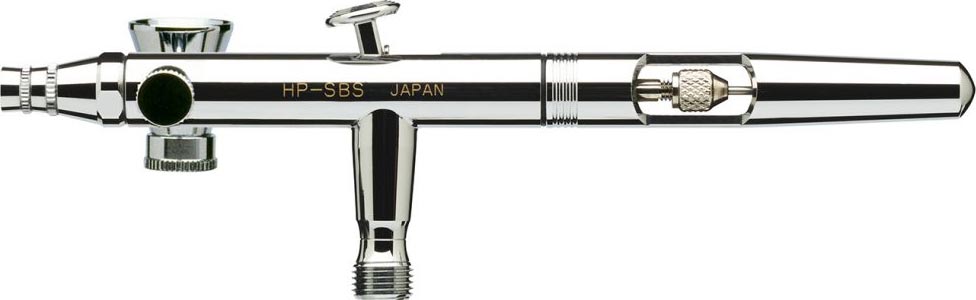

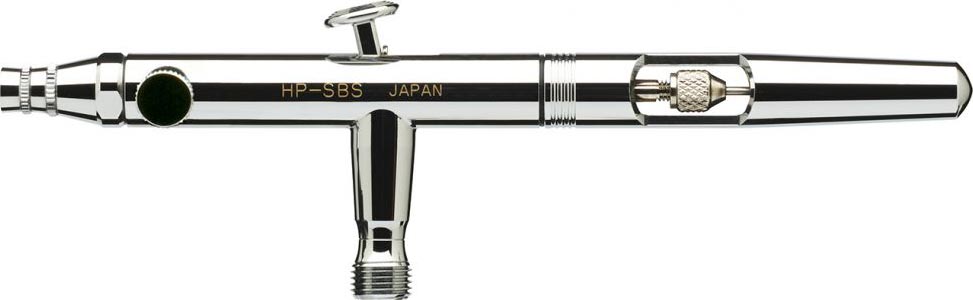

Iwata Eclipse HP-BS Gravity Feed Dual Action Airbrush has a 0.04 oz 1.25 ml fluid cup that is ideal when using small amounts of spray medium.

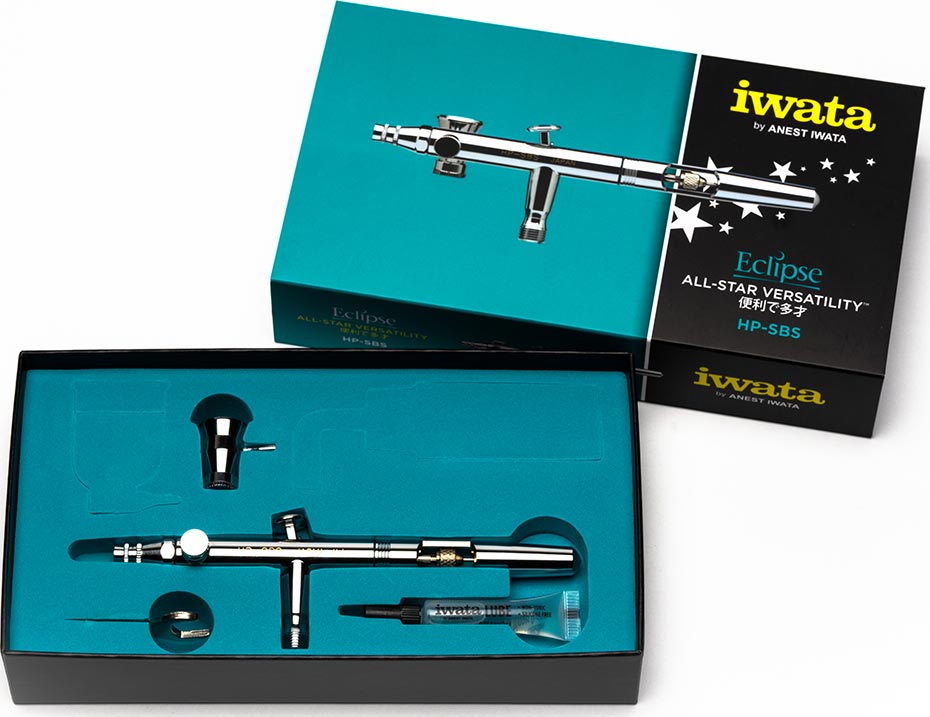

Iwata Eclipse Series airbrushes feature an exclusive compression fit nozzle that is easy to clean and assemble. The quick flush cutaway handle allows easy access to the needle so that you can quickly empty the paint reservoir for cleaning. Iwata's spring-steel needle resists breakage and our needle packings are solvent resistant for longevity. Iwata Eclipse airbrushes come with a head cap spanner that is used to remove the head cap when accessing the nozzle. Also included is Iwata Lube, which is used to lubricate the needle and main lever mechanism. Hugely popular, Iwata Eclipse Series airbrushes offer all-star versatility.
