IMRSN5G8RHLZR

SpiroNET 5.8GHz 13dBi LZR RHCP Antenna

Product Info
IMRSN5G8RHLZR
SpiroNET 5.8GHz 13dBi LZR RHCP Antenna
By IMMERSION RC
$39.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Video Equipment Accessory, Antenna
But only from... IMMERSION RC
All items from... IMMERSION RC


 Inventory Status Legend
StockStock availability for on-line ordering
4
$39.99
Warehouse ?
StockStock availability for pick up
4
$39.99
Warehouse ?
0
$39.99
Store - Stratford ?
1
$39.99
Store - Edmonton ?
1
$39.99
Store - Mississauga ?
1
$39.99
Store - Ottawa ?
1
$39.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

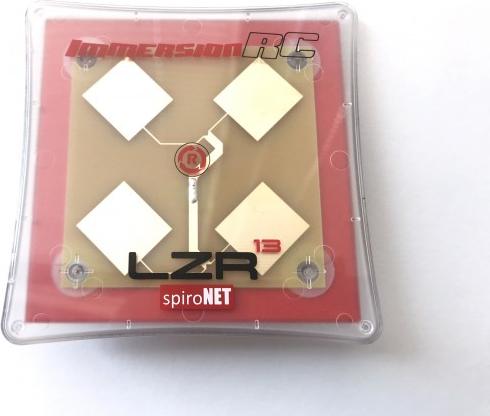

This 5.8GHz Right-Hand (RHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our Uno, or Duo receivers.
This antenna will breathe new life into the CE-Legal 25mW systems, allowing multi-km range with ease. For 600mW systems, its time to start worrying about the range of the control link, since with a combination of this antenna, and a spiroNET omni, the video range can greatly exceed the control range of most 2.4GHz radios.

Precision manufactured with very tight tolerances, *each antenna* is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance.

SMA male connector compatible with FatShark/ImmersionRC 5.8GHz products
Right-Hand circular polarization
5.8GHz ISM Band
13dBi gain
Beam width 35 degrees (H + V)
F/B Ratio 26dB
VSWR < 1.5:1 (5740 - 5860MHz)
Impedance 50ohms


click image to enlarge

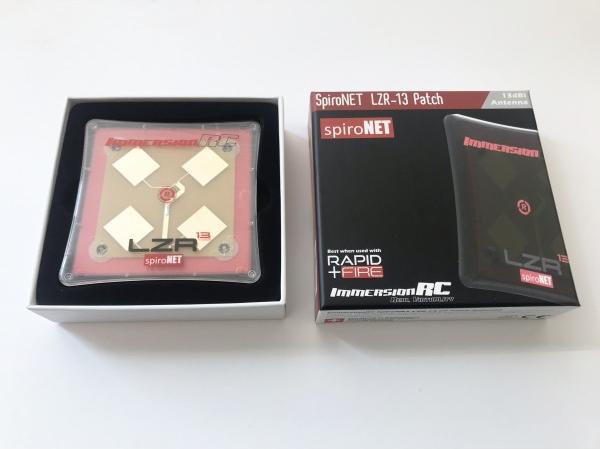

ADDITIONAL PHOTOS
