IMRRFIREO1

RapidFIRE 5.8GHz Receiver Module Only for FatShark Goggles

Product Info
IMRRFIREO1
RapidFIRE 5.8GHz Receiver Module Only for FatShark Goggles
By IMMERSION RC
$209.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Video Equipment Receivers, 5.8GHz
But only from... IMMERSION RC
All items from... IMMERSION RC


 Inventory Status Legend
StockStock availability for on-line ordering
0
$209.99
Warehouse ?
StockStock availability for pick up
0
$209.99
Warehouse ?
0
$209.99
Store - Charlottetown ?
1
$209.99
Store - Edmonton ?
1
$209.99
Store - Mississauga ?
0
$209.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • Compatibility: All Dominator LCD goggles, including V1, V2, V3, SE, HD1, HD2, HD3, HDO. Plus Attitude V3, V4
  • Auxiliary Power: Included kit + flat flex cable for goggles that cannot provide enough power (Attitude and Dom HDO do not require this)
  • Accessories Included: Module doors for Dominator and Attitude, Aux power PCB for Headtracker slot, and flat flex cable.
  • Sensitivity: Better than -96dBm
  • Power: 5V @ ~350mA
  • Alarms: Internal beeper to warn of marginal reception
  • Modes: rapidFIRE, Classic Diversity, or Upper/Lower Rx options (single Rx modes increase battery life)

The rapidFIRE technology the rapidFIRE module is named after 'fuses' together the images from two 5.8GHz A/V receiver modules into one beautiful, interference-free image. Tearing and rolling are eliminated and our advanced noise-detection algorithms guarantee a clean and stable image at all times. The rapidFIRE module is optimized for use in environments with multi-path interference such as indoor racing, flying in abandoned buildings etc. but also offers superb sensitivity and selectivity outdoors and for long range use.

The rapidFIRE module is compatible with all Dominator LCD goggles including V1, V2, V3, SE, HD1, HD2, HD3, HDO, and Attitude V3 and V4. To guarantee this compatibility is ships with injection molded and beautifully painted module bay doors for Dominator and Attitude goggles.

For Attitude and HDO goggles, the module is plug and play. For others, an included headtracker-bay aux power board, with flat-flex cable, is included which is recommended to be used for best results.

As expected from ImmersionRC we've future-proofed the rapidFIRE module by equipping it with a USB port, allowing future firmware updates and the adding of new features through our Vortex configuration app.

The rapidFIRE module enables easy menu navigation by means of a 5-way joystick which is used to scroll around the menus that are displayed on a responsive OLED display on the outside of the module, with feedback of critical parameters displayed on the OSD.

Key features included are a built-in spectrum analyzer, favorite channels with live single-channel spectrum display for manual tuning, band scanning and many, many more.

When used to time races, the rapidFIRE technology eliminates dropped frames from the FatShark DVR. Finally, DVR footage can reliable be compared for photo-finishes.

click image to enlarge

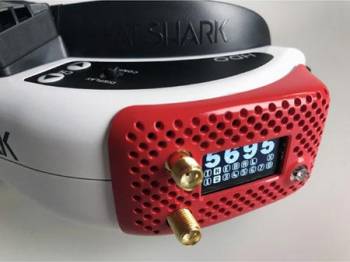

ADDITIONAL PHOTOS
