IMR5G8TX025RB

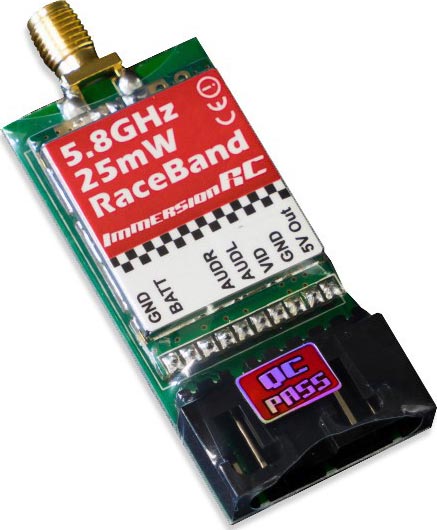

Race Band 5G8 Video Transmitter 5.8GHz 25mW

Product Info
IMR5G8TX025RB
Race Band 5G8 Video Transmitter 5.8GHz 25mW
By IMMERSION RC
Discontinued
Click to Enlarge
click to enlarge

More like this... Video Equipment Transmitters, 5.8GHz
But only from... IMMERSION RC
All items from... IMMERSION RC


 Inventory Status Legend
StockStock availability for on-line ordering
0
$39.94
Warehouse ?
StockStock availability for pick up
0
$39.94
Warehouse ?
0
$39.94
Store - Charlottetown ?
0
$39.94
Store - Edmonton ?
0
$39.94
Store - Mississauga ?
0
$39.94
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
15 ch
Channels:
5.8 GHz
Band:
6-25 V
Operating Voltage:
25 mW
Output Power:
SMA
Antenna Connection:
57 mm
Length:
23 mm
Width:
12 mm
Height:
18 g
Weight:

FEATURES

Many A/V transmitters sold for FPV use have channels which fall outside of the legal bands (ISM, and Amateur Radio). The channel set used ImmersionRC and FatShark all fall within the legal bands, and will not raise the eyebrows of the authorities.
25mW on 5.8GHz is legal for license-free use in many countries.

Available channels

5740, 5760, 5780, 5800, 5820, 5840, 5860 MHz (Band D)

5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917MHz (Raceband)







click image to enlarge

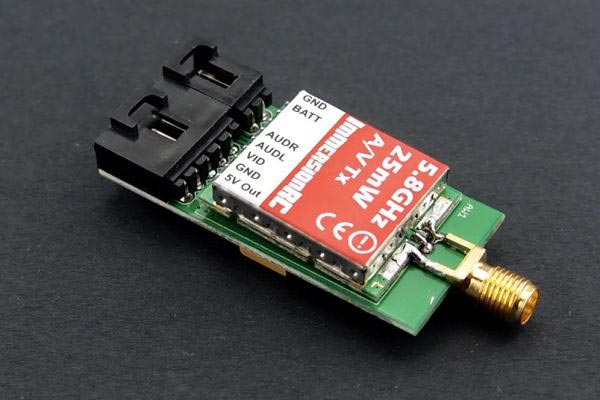

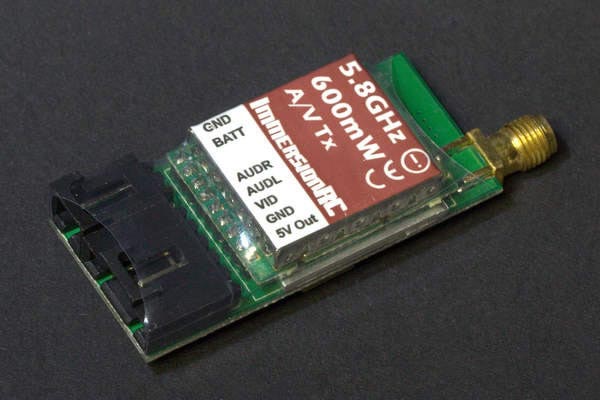

ADDITIONAL PHOTOS
