IMR2G4RHPATCH

SpiroNet 2.4GHz Patch Antenna RHCP VRx 13dBi

Product Info
IMMERSION RC

IMR2G4RHPATCH
SpiroNet 2.4GHz Patch Antenna RHCP VRx 13dBi
By IMMERSION RC
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Video Equipment Accessory, Antenna
But only from... IMMERSION RC
All items from... IMMERSION RC


 Inventory Status Legend
StockStock availability for on-line ordering
0
$159.99
Warehouse ?
StockStock availability for pick up
0
$159.99
Warehouse ?
0
$159.99
Store - Stratford ?
0
$159.99
Store - Edmonton ?
0
$159.99
Store - Mississauga ?
0
$159.99
Store - Ottawa ?
0
$159.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
200 mm
Length:
200 mm
Width:
15 mm
Height:
300 g
Weight:

FEATURES
  • SMA male connector compatible with all FatShark/ImmersionRC 2.4GHz products sold to date.
  • 2.4GHz Band, 13dBi gain
  • 35 degree Beam Width (H+V)
  • F/B Ratio > 35dB, VSWR < 1:1.35 @ Center Freq.
  • Circular Polarization
  • Fully protected against the elements
  • Individually tested
  • Greatly increase usable range compared with a traditional antenna

This 2.4GHz Right-Hand (RHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market.

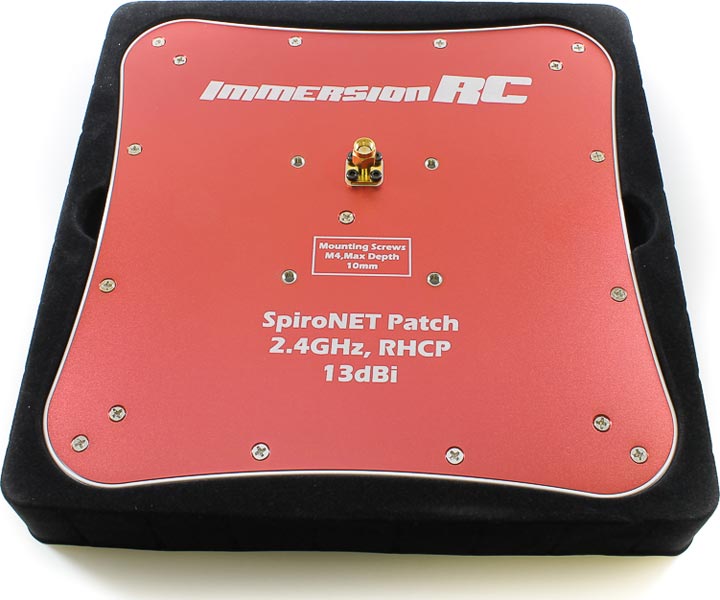

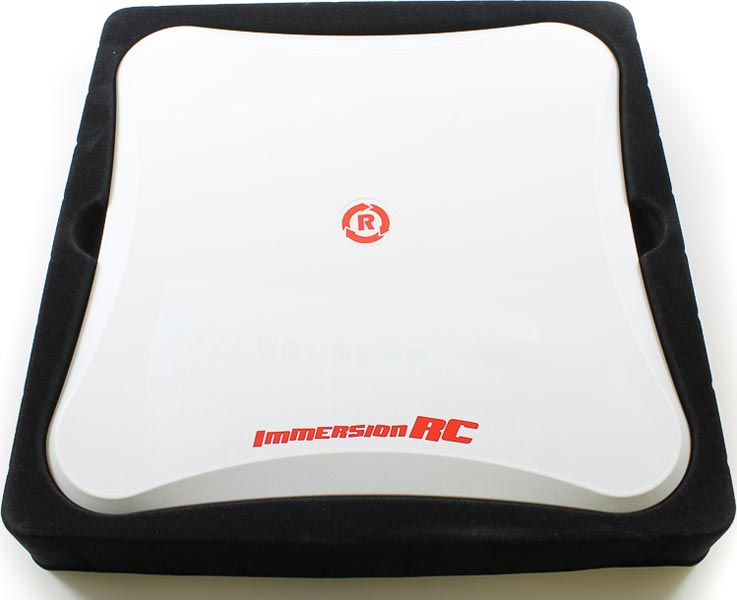

A custom designed plastic radome protects your investment. An anodized aluminium rear panel includes mounting points for tripod mounting.

This antenna will breathe new life into the CE-Legal 2.4GHz 10mW systems, allowing multi-km range with ease. For use with our 2.4GHz 700mW transmitter, its time to start worrying about the range of the control link, since with a combination of this antenna, and a spiroNET omni, the video range will greatly exceed the control range of any 2.4GHz radio. When coupled with our 700mW 2.4GHz transmitter, and the upcoming Uno2400, enjoy estimated downlink range of greater than 10km.

Precision manufactured with very tight tolerances, each antenna is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance.

The SpiroNET 2.4GHz circular polarized patch antenna  offers right-hand circular polarization.  These antennas are far from the run of the mill ‘home brew’ production, these are tried and tested and put through the wringer in order to bring you the best!
