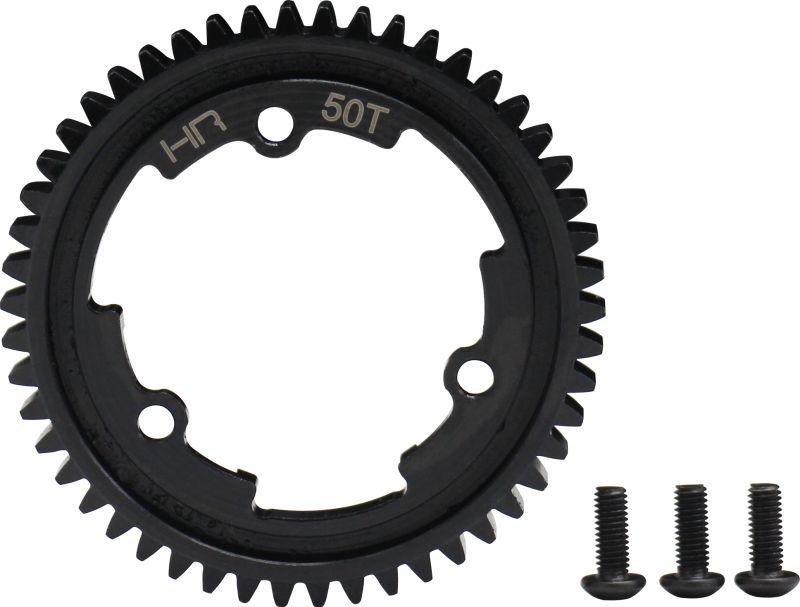

50 Tooth MOD 1 Steel Spur Gear E-Revo 2/X-Maxx/XO-1
|
click to enlarge
|
But only from... HOT RACING
All items from... HOT RACING
Hot Racing 50 tooth hardened steel Mod 1 (1.0 metric pitch) spur gear for the Traxxas E Revo2, X-Maxx 6S and 8S, Maxx 4S and XO-1.
FEATURES:
- CNC machined hardened steel construction
- Black oxide finished
- Laser etched tooth count marking
YOU WILL RECEIVE:
- One (1) 50T, 1 mod steel spur gear
REQUIREMENTS:
- Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 - Adjusting Gear Mesh)
- With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
SPECIFICATIONS:
- Overall diameter: 52.8mm
- Gear face width: 8mm
|
|
|
|
