HPI112609

1/8 Savage XL Flux RTR 6S 4WD

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (129)
Optional Items (12)
HPI

HPI112609
1/8 Savage XL Flux RTR 6S 4WD
By HPI
$899.99 CAD    989.99
Save $90.00 (9%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric 4WD Monster Truck
But only from... HPI


 Inventory Status Legend
Stock availability for on-line ordering
3
$899.99
Warehouse ?
Stock availability for pick up
3
$899.99
Warehouse ?
1
$899.99
Store - Charlottetown ?
0
$899.99
Store - Edmonton ?
0
$899.99
Store - Mississauga ?
0
$899.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
585 mm
Length:
427 mm
Width:
254 mm
Height:
445 mm
Wheelbase:
4WD Shaft Driven
Drivetrain:
Two 2s or 3s 5000mAh+ 50c recommended
Battery Requirements:
To suit selected batteries
Charger Requirements:
HPI TF-40
Radio Included:
FLUX 2200KV
Brushless Motor Included:
FLUX 6S-capable
ESC Included:

FEATURES
  • 2.5mm thick rigid 6061-series aluminum TVP (twin vertical plate) chassis
  • Extra low CG for cornering control and ability

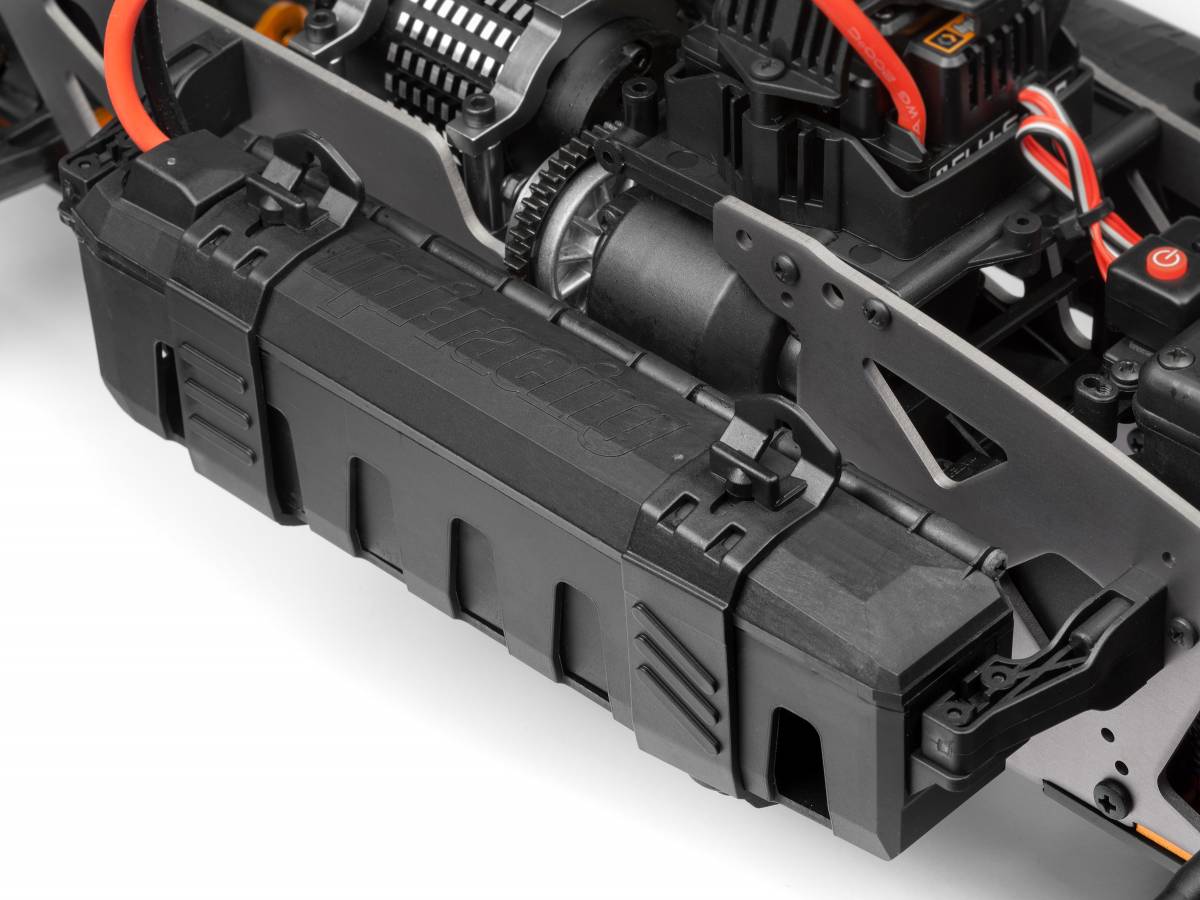

  • Twin battery boxes for a variety of battery types
  • Four wheel shaft drive
  • HPI Flux Tork 2200Kv brushless motor with machined cooling fins
  • 7075 billet aluminum motor mount
  • Waterproof Flux 6S ESC with proportional brake
  • Bib Bore nylon bodied, oil-filled shocks
  • Adjustable front and rear caster and camber
  • All metal gear transmission with rubber-sealed ball bearings
  • Equipped with machined, super heavy duty bevel gears on the differential
  • Machined steel, 44 tooth spur gear
  • Suspension uprights designed for big tires and high weight
  • HPI Warlock tires with chrome finish 3.3” diameter
  • GT-2 on/off-road tires with blocky tread pattern and heavy-duty sidewall teeth
  • Trimmed and painted GT-2 body

The Savage XL FLUX combines the awesome raw power of 6S LiPo brushless power with the stability of a long wheelbase in the legendary Savage HPI monster truck package! The colossally powerful FLUX 2200KV motor is ready for all the power you can run through it, and the FLUX 6S-capable electronic speed controller is fully capable of up to 22.2 volts of power to let you pull off giant stunts and jaw-dropping speed. The Savage XL FLUX is packed with options and ready to rock right out of the box!


VIDEO



click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

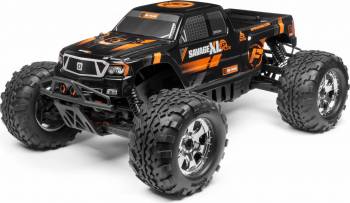

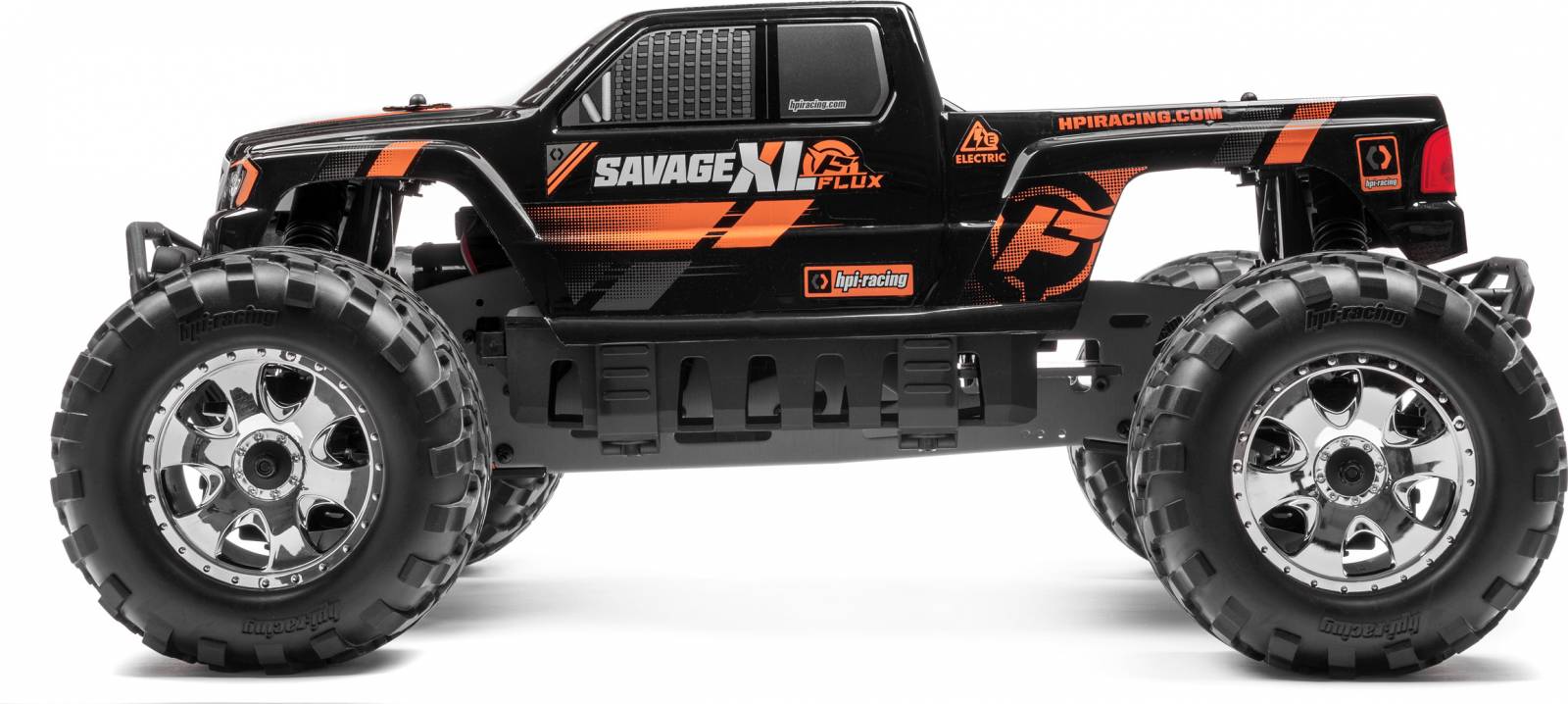

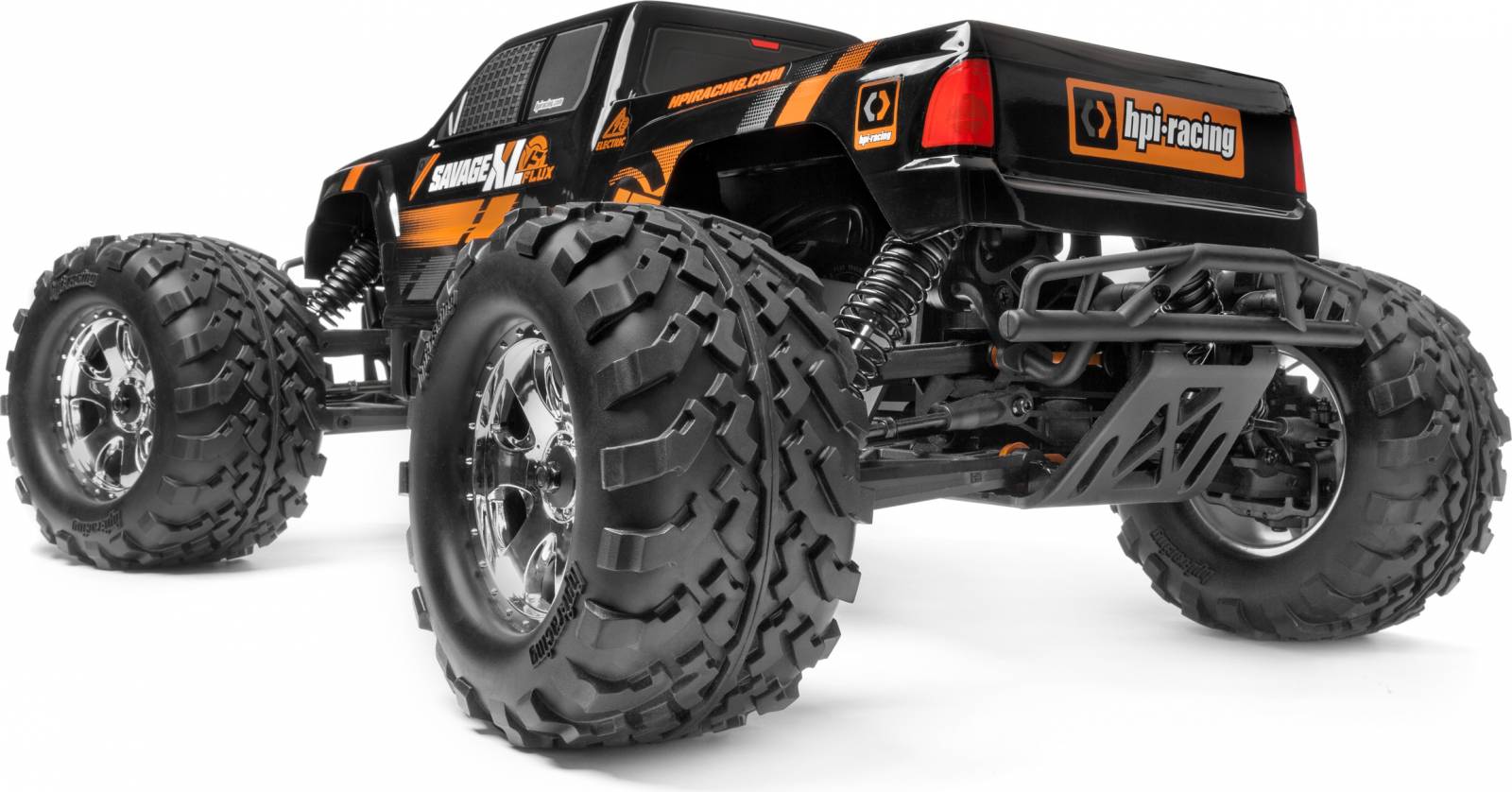

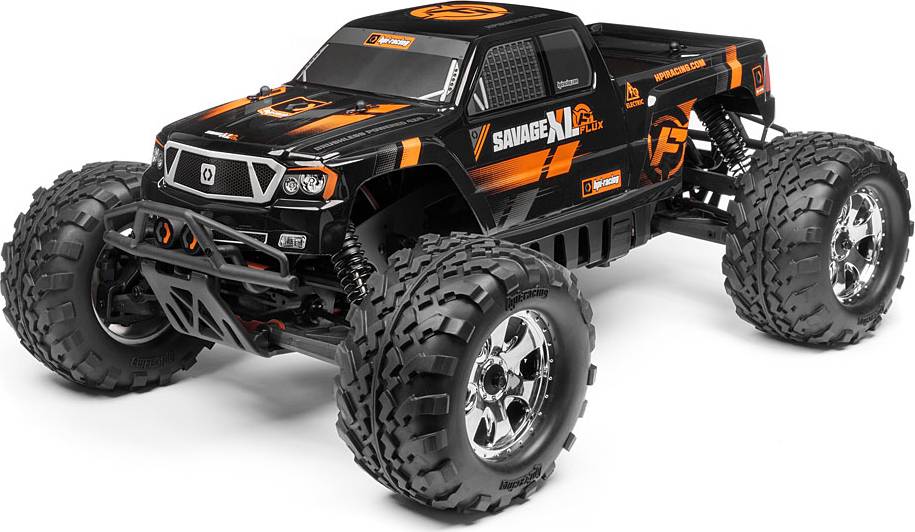

This is the Brushless Electric Powered, 2.4GHz Radio Controlled, Ready to Run
1/8 scale HPI Savage XL Flux 6S Monster Truck.

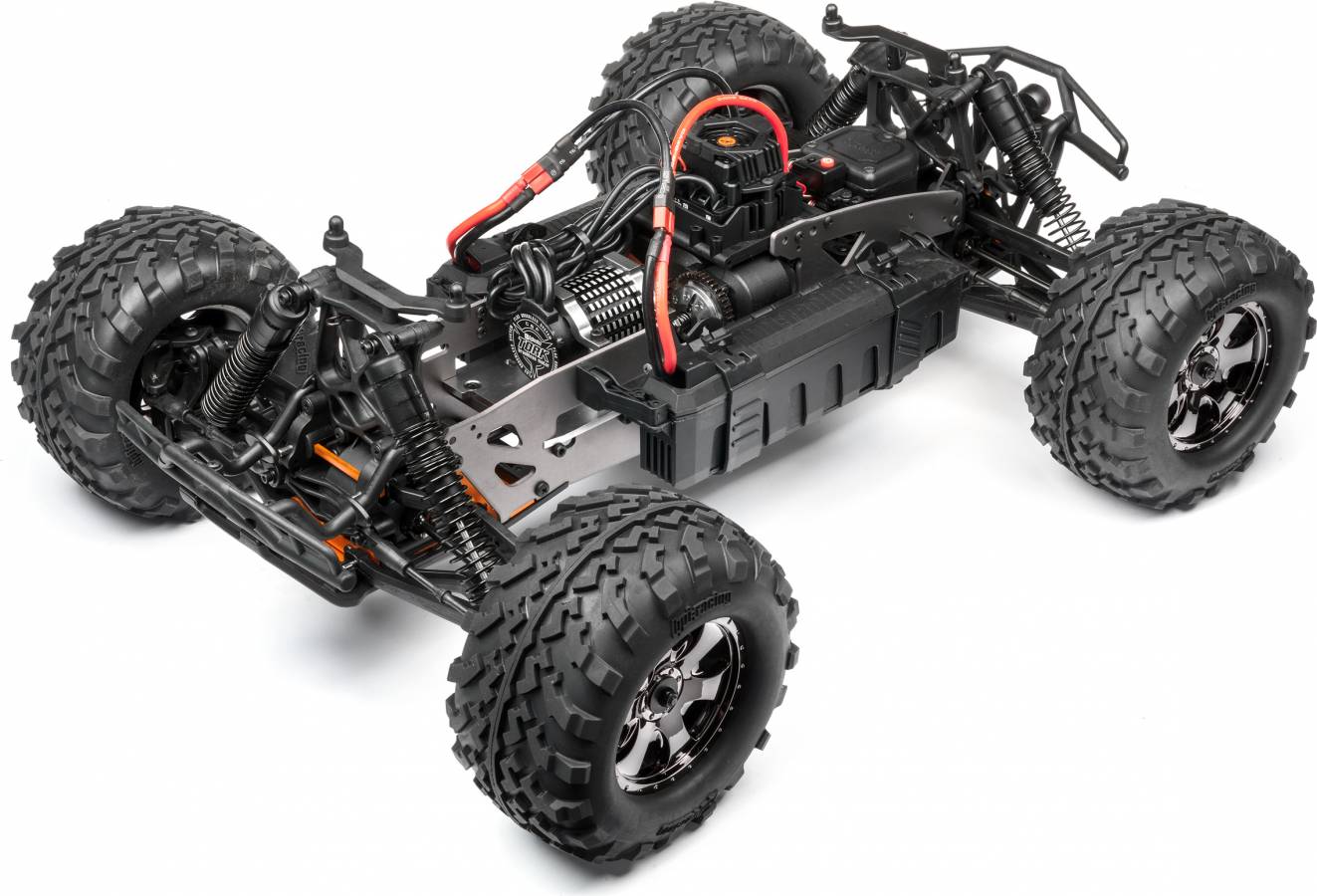

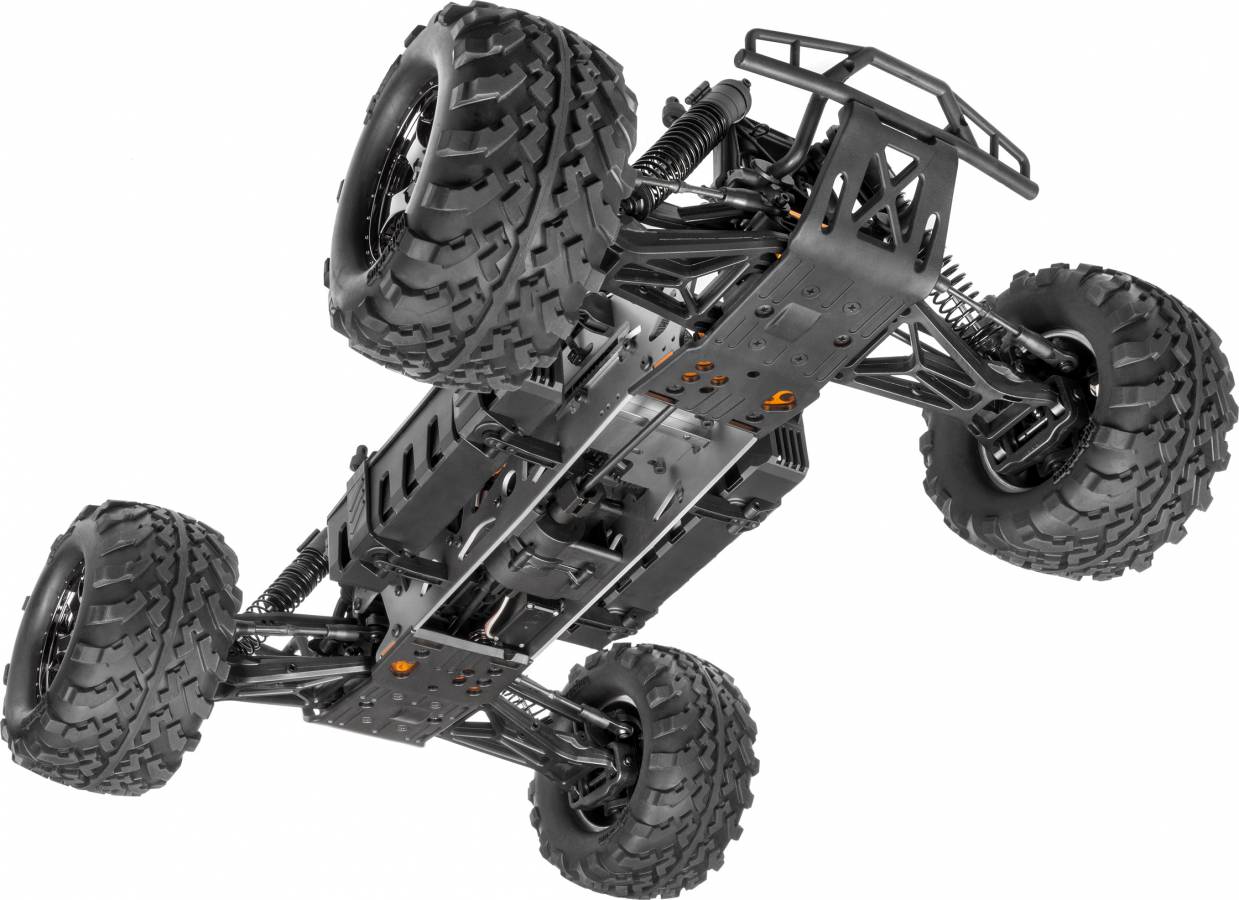

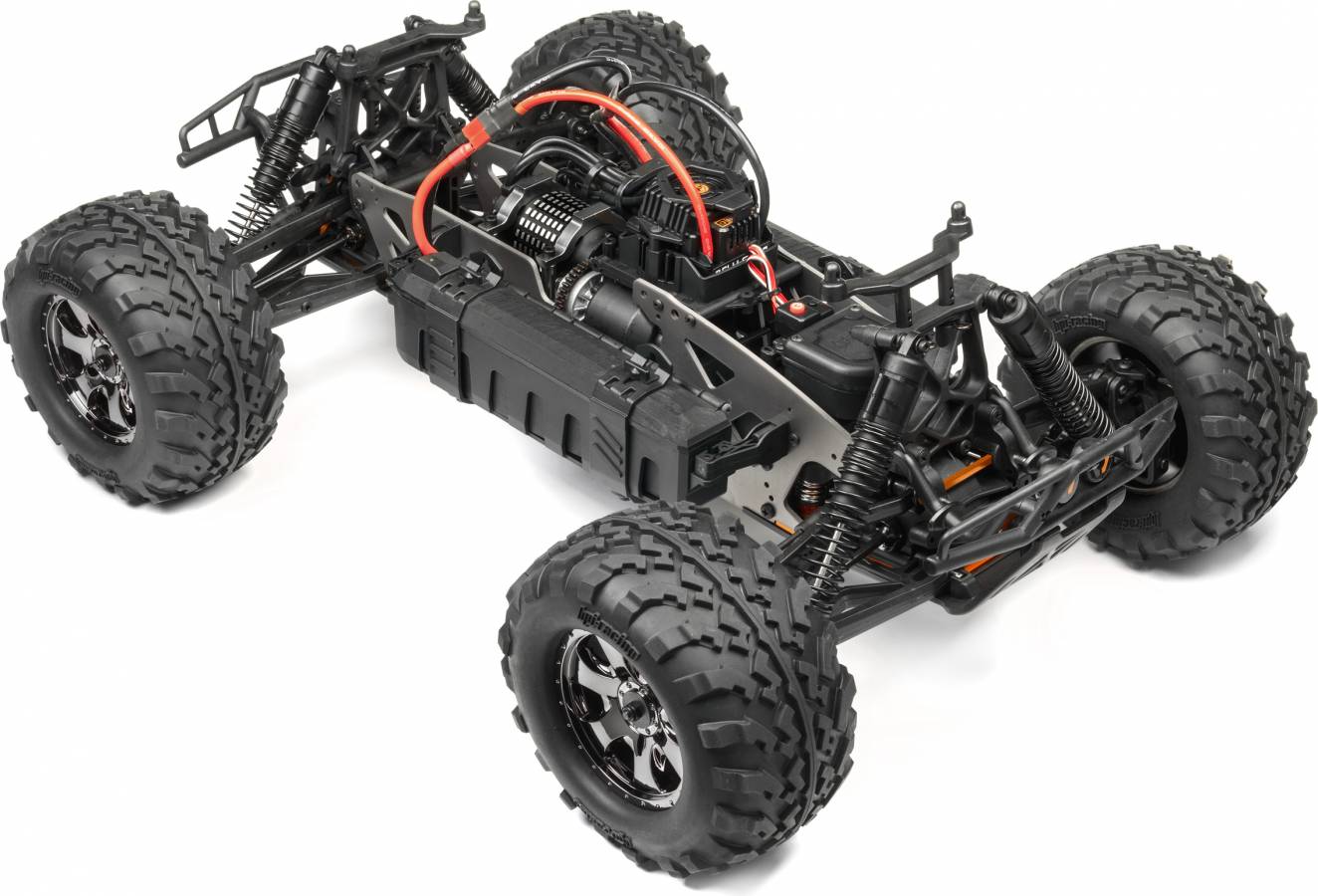

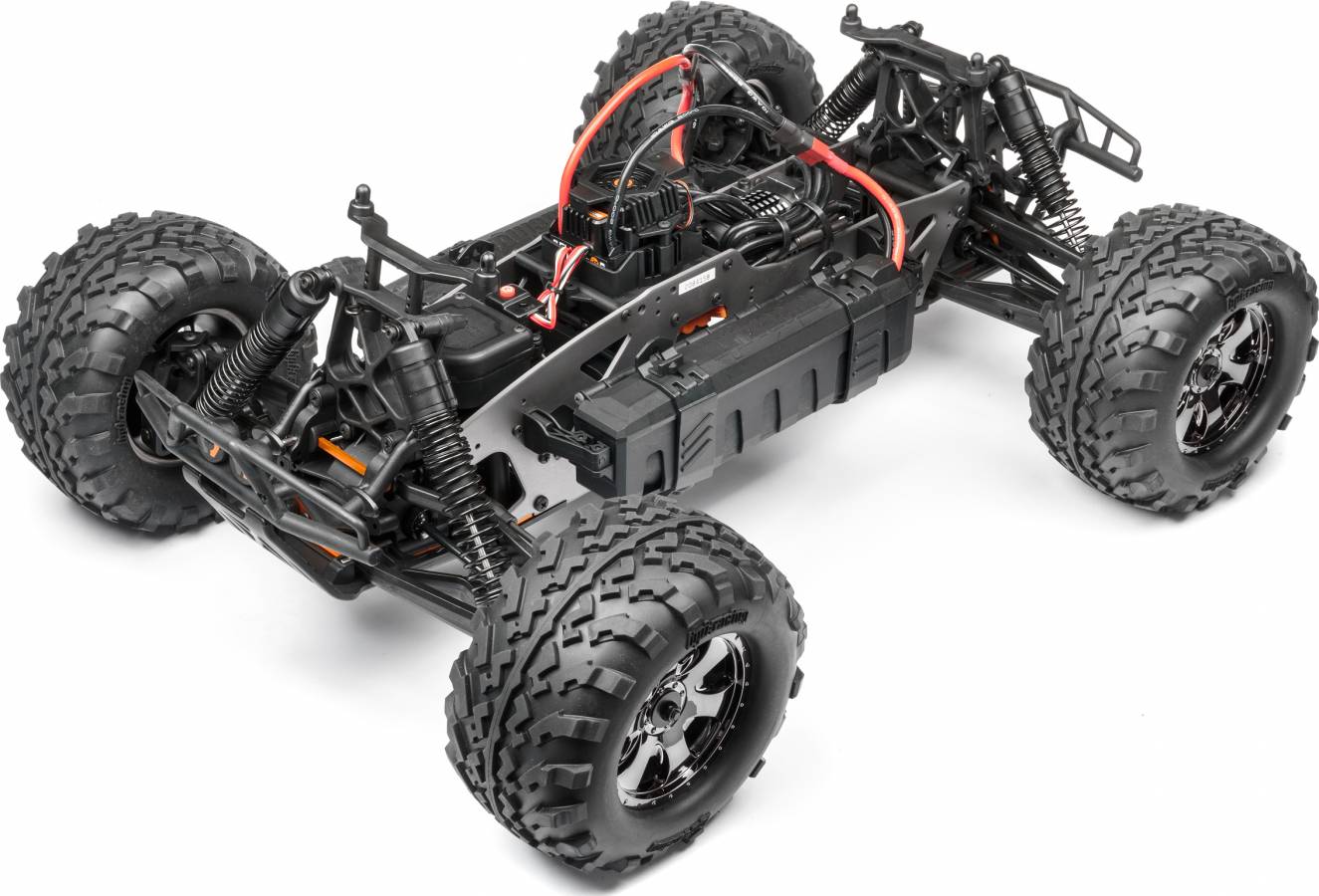

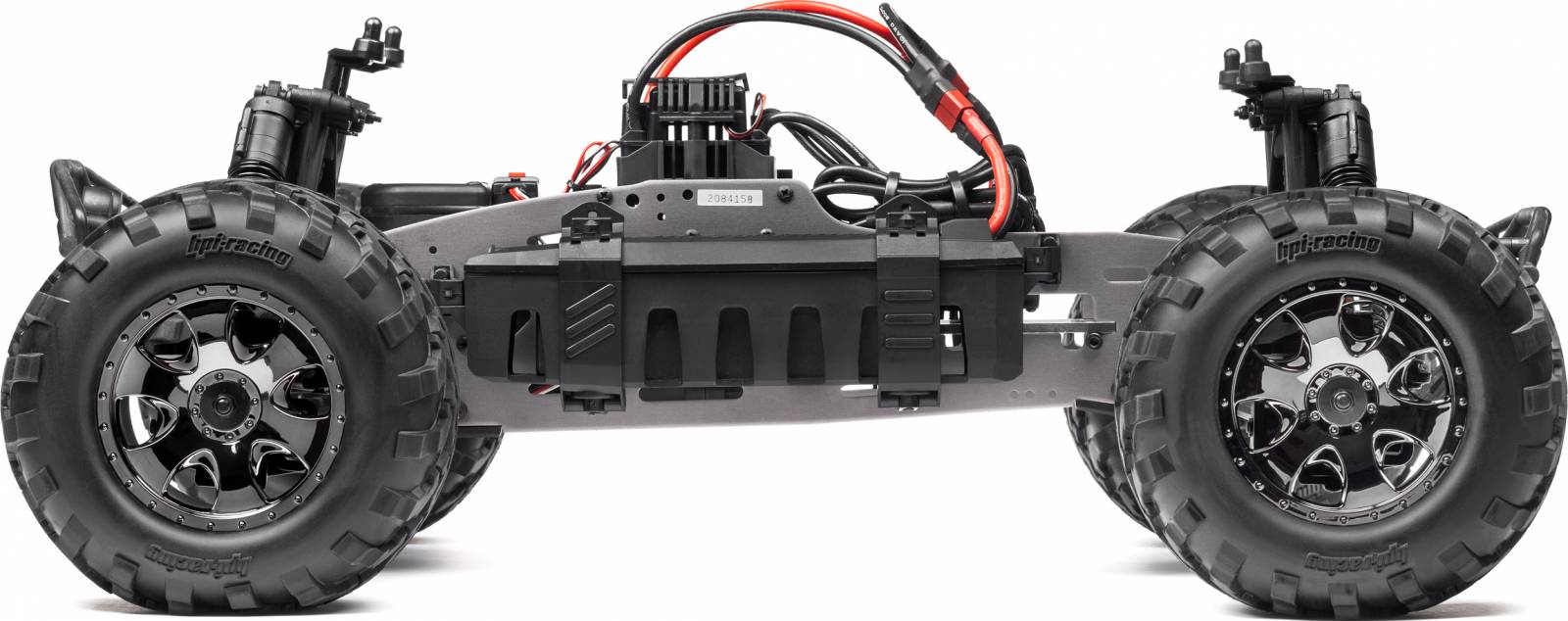

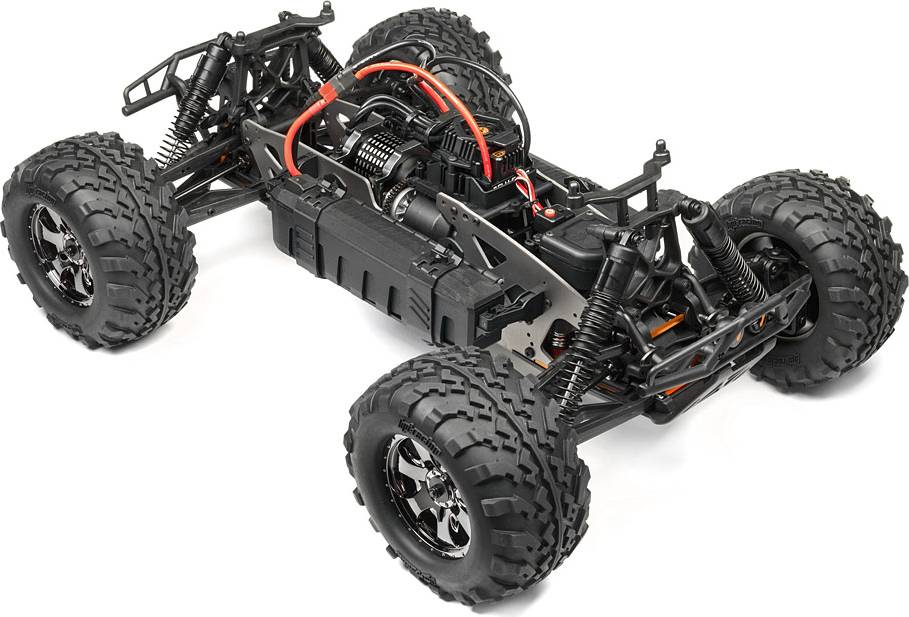

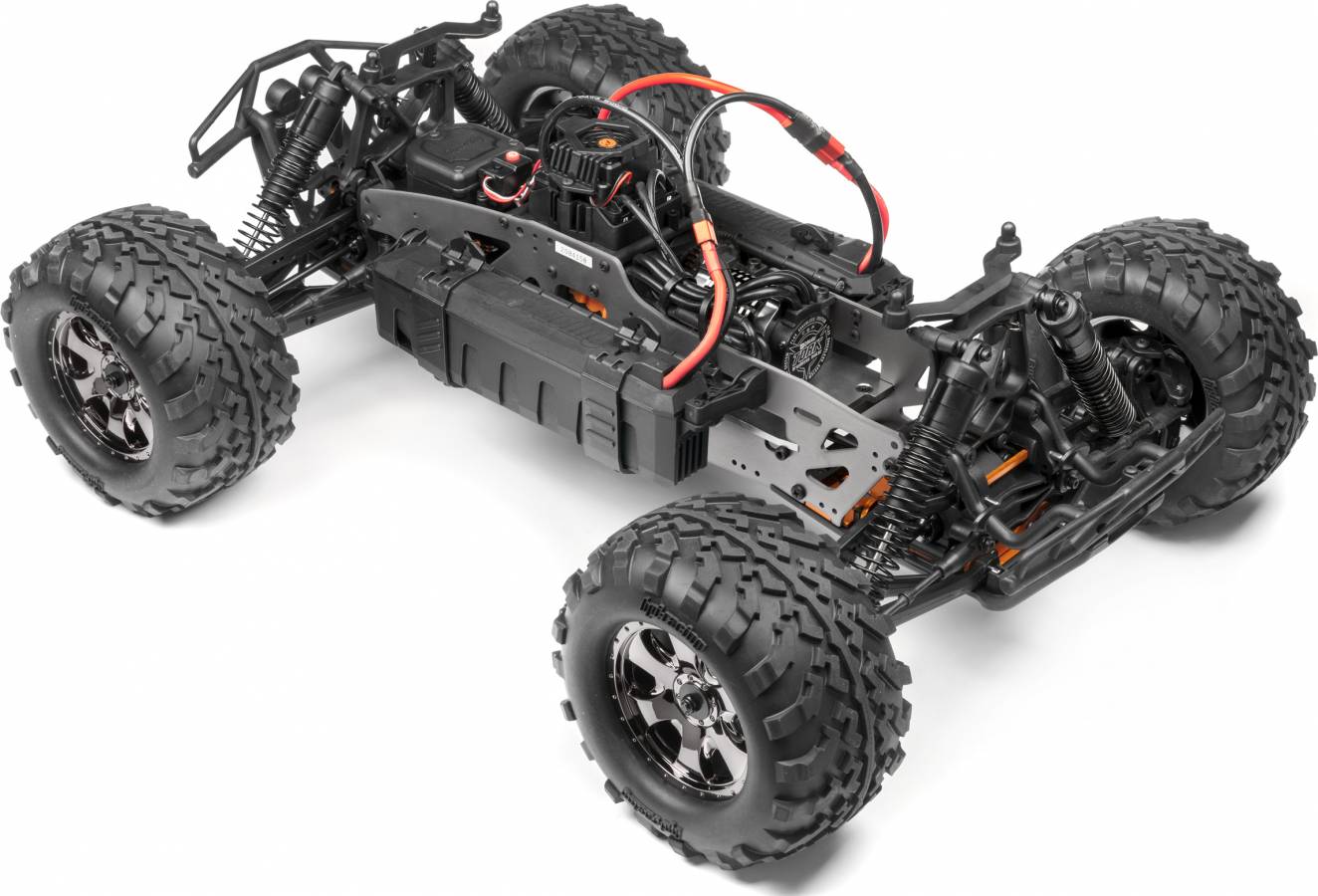

FEATURES: Chassis: Rigid 6061-series aluminum TVP (twin vertical plate) 0.098"
(2.5mm) thick, extra low CG for high degree of control and
cornering ability, twin battery boxes hold a variety of battery
types
Drive: Four wheel shaft

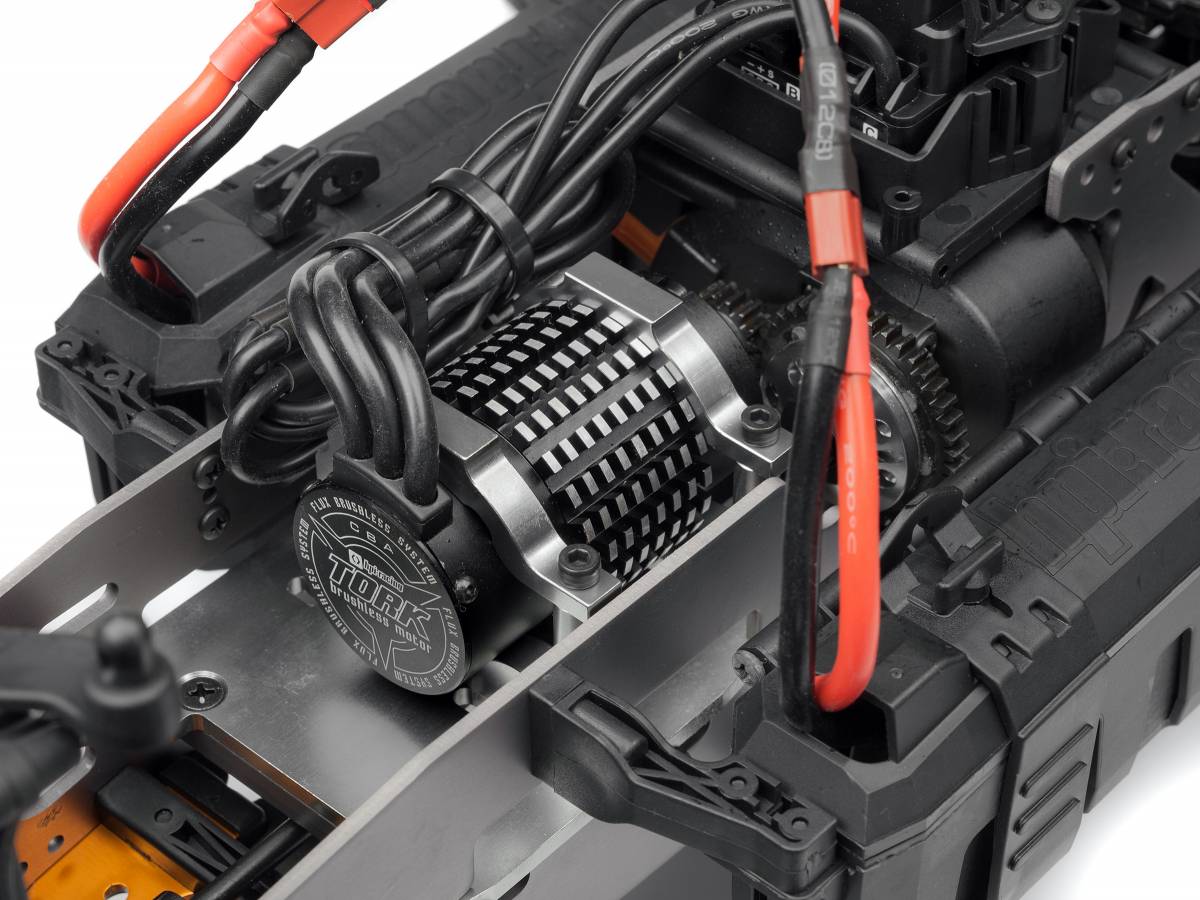

Brushless Motor: HPI Flux Tork 2200Kv with machined cooling fins, 5mm
shaft, handles up to 25V of power, held in place with two machined
8mm billet aluminum clamps and 0.12" (3mm) thick 7075 billet
aluminum motor mount

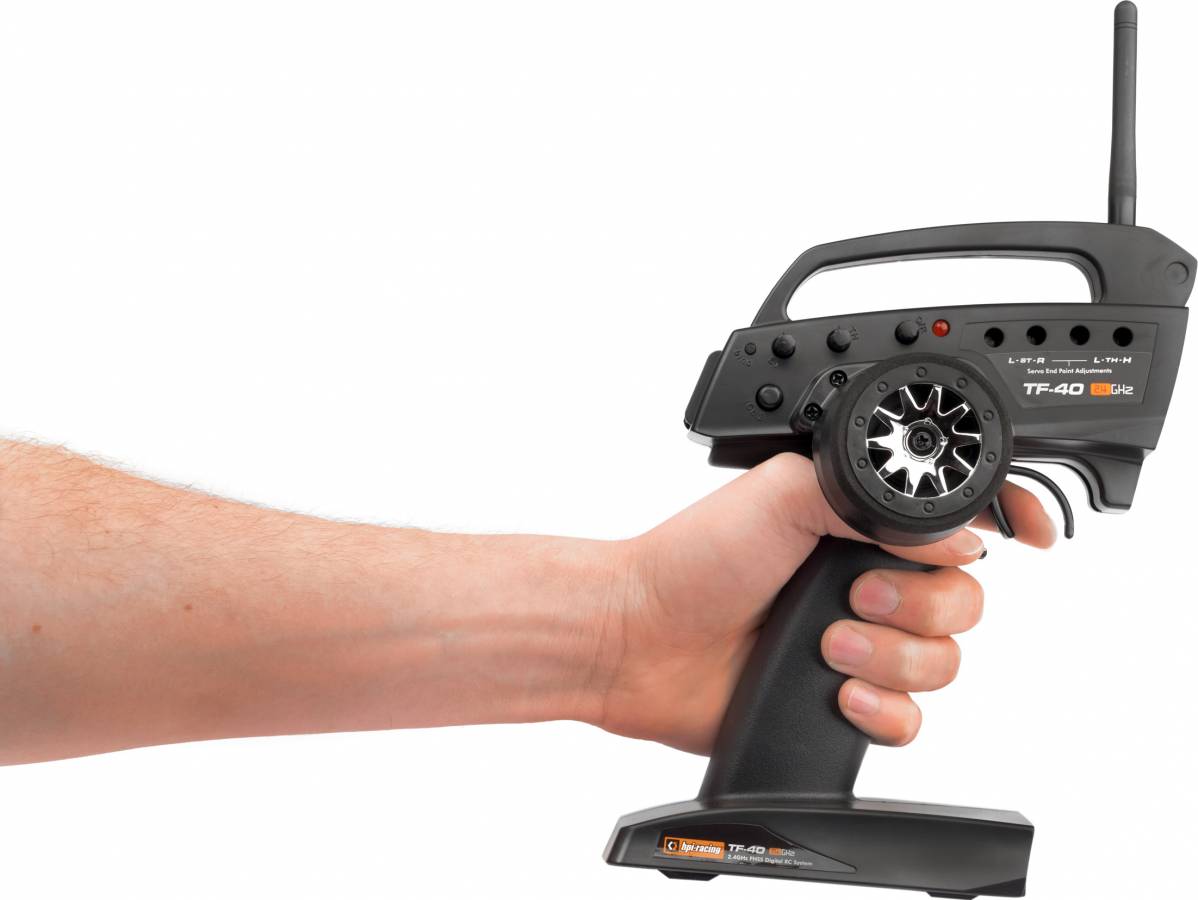

Radio: HPI TF40 2.4GHz

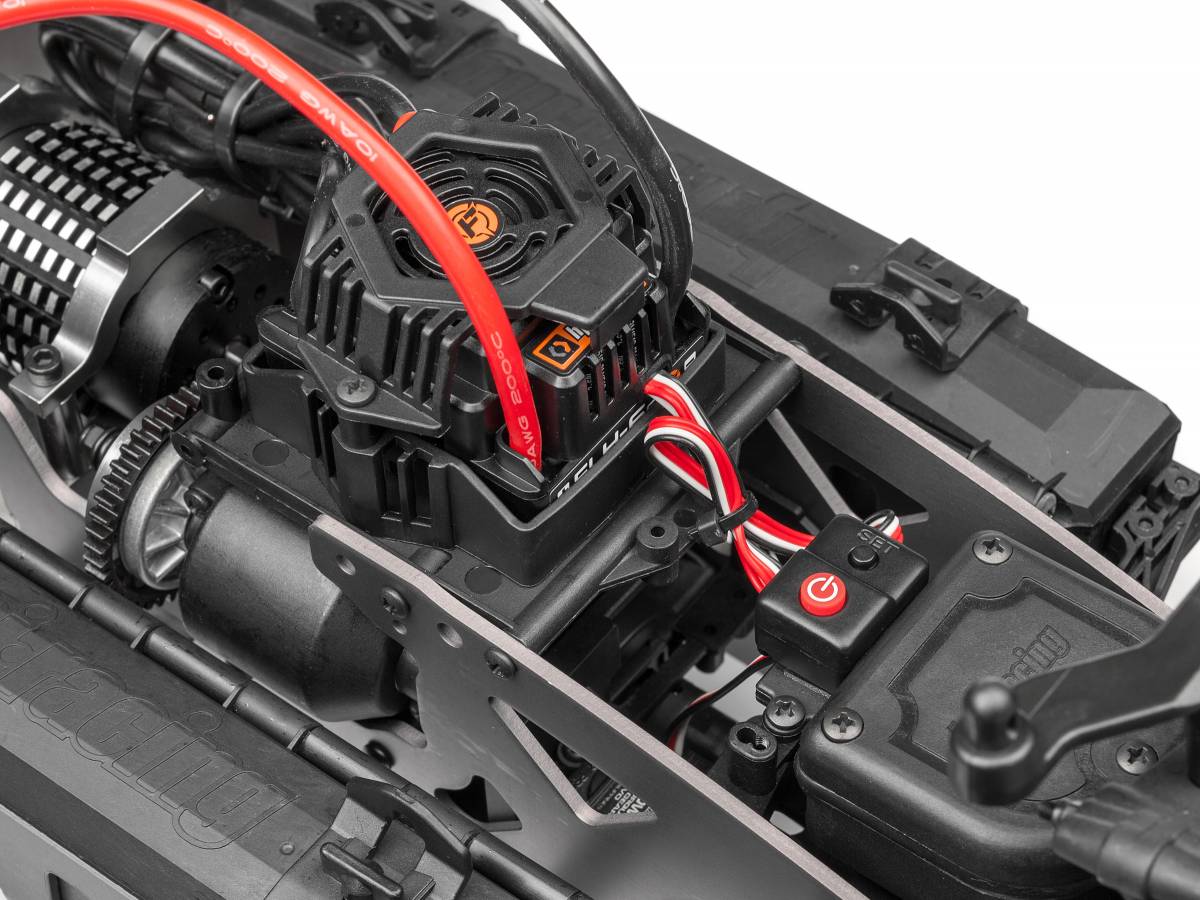

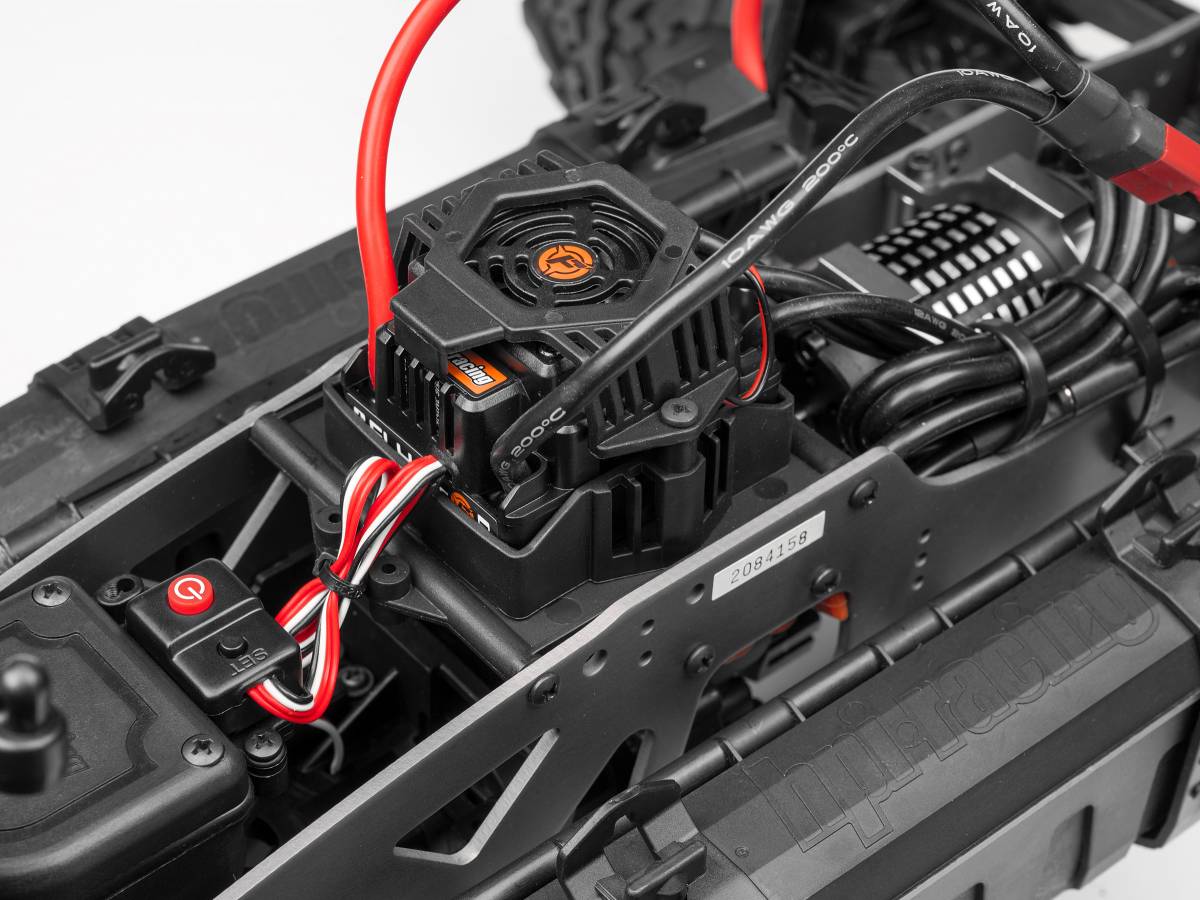

Electronic Speed Control: Flux ELH-6S, waterproof, proportional
brake handles up to two 3S LiPo batteries, preinstalled cooling fan
and T-plug connectors
Steering Servo: SF-5 high torque metal gear
Transmission: All metal gears running on rubber-sealed ball bearings
Differential: Equipped with machined super heavy duty bevel gears,
upgradeable with all Nitro Savage option parts

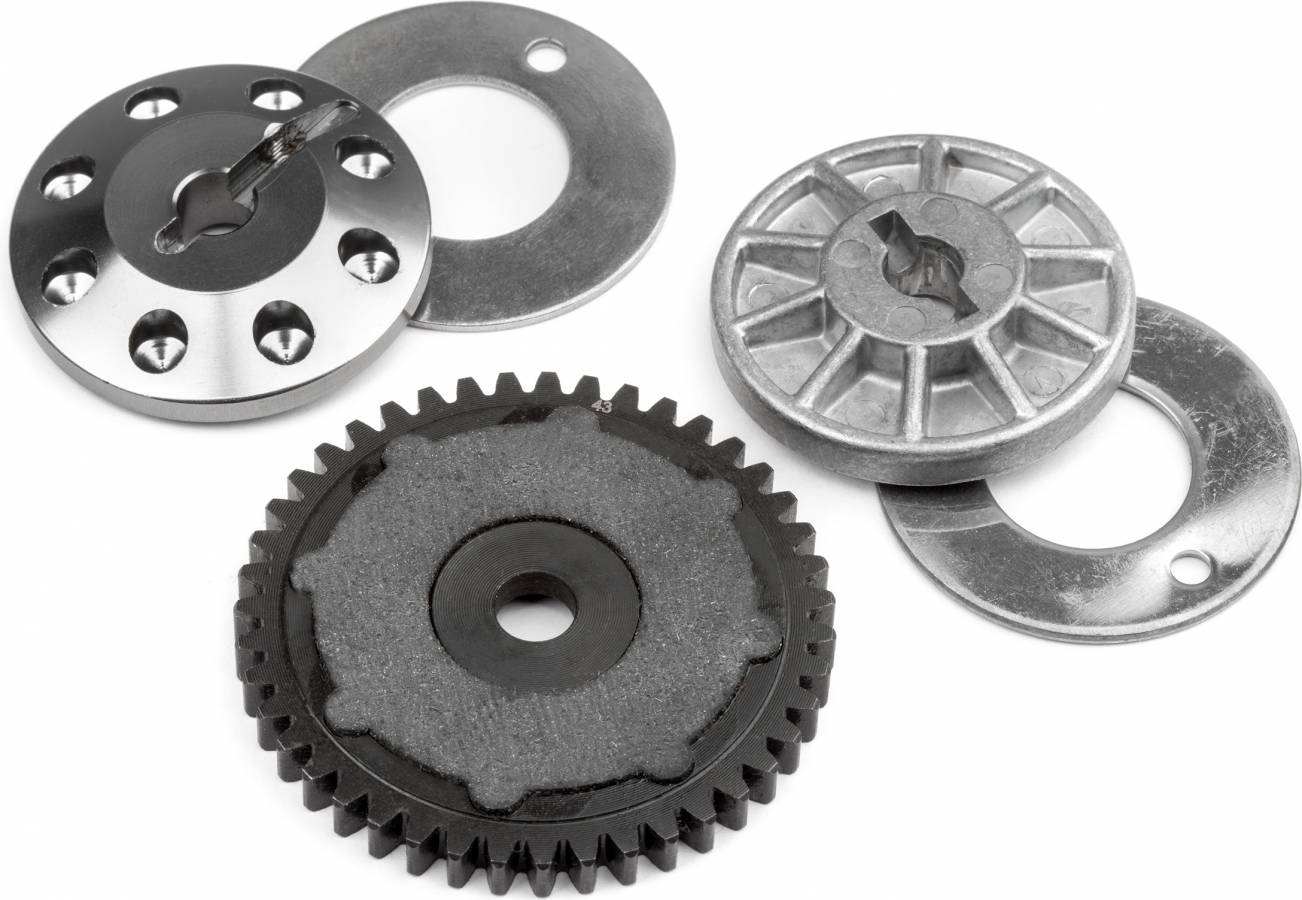

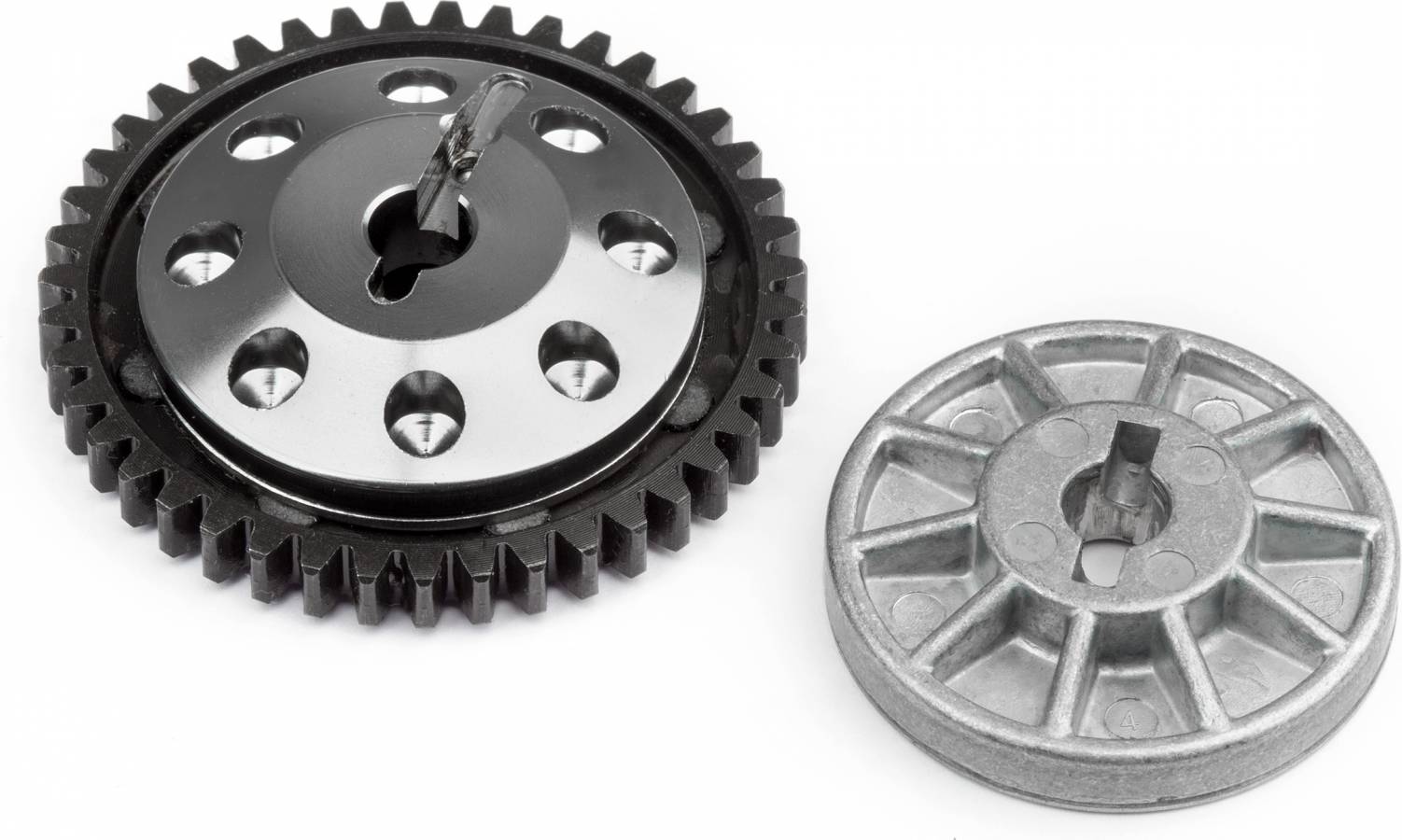

Spur Gear: Machined steel, 44 tooth

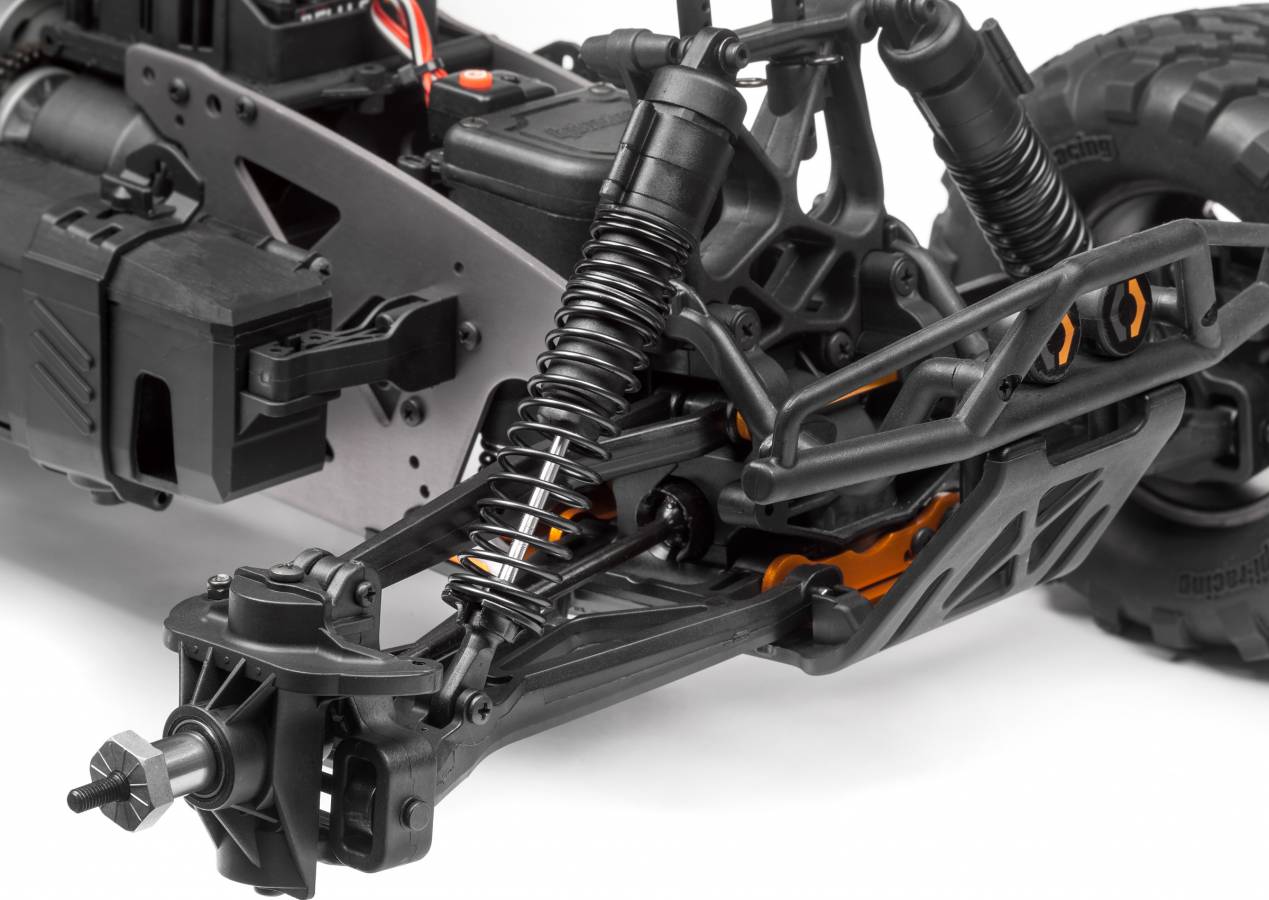

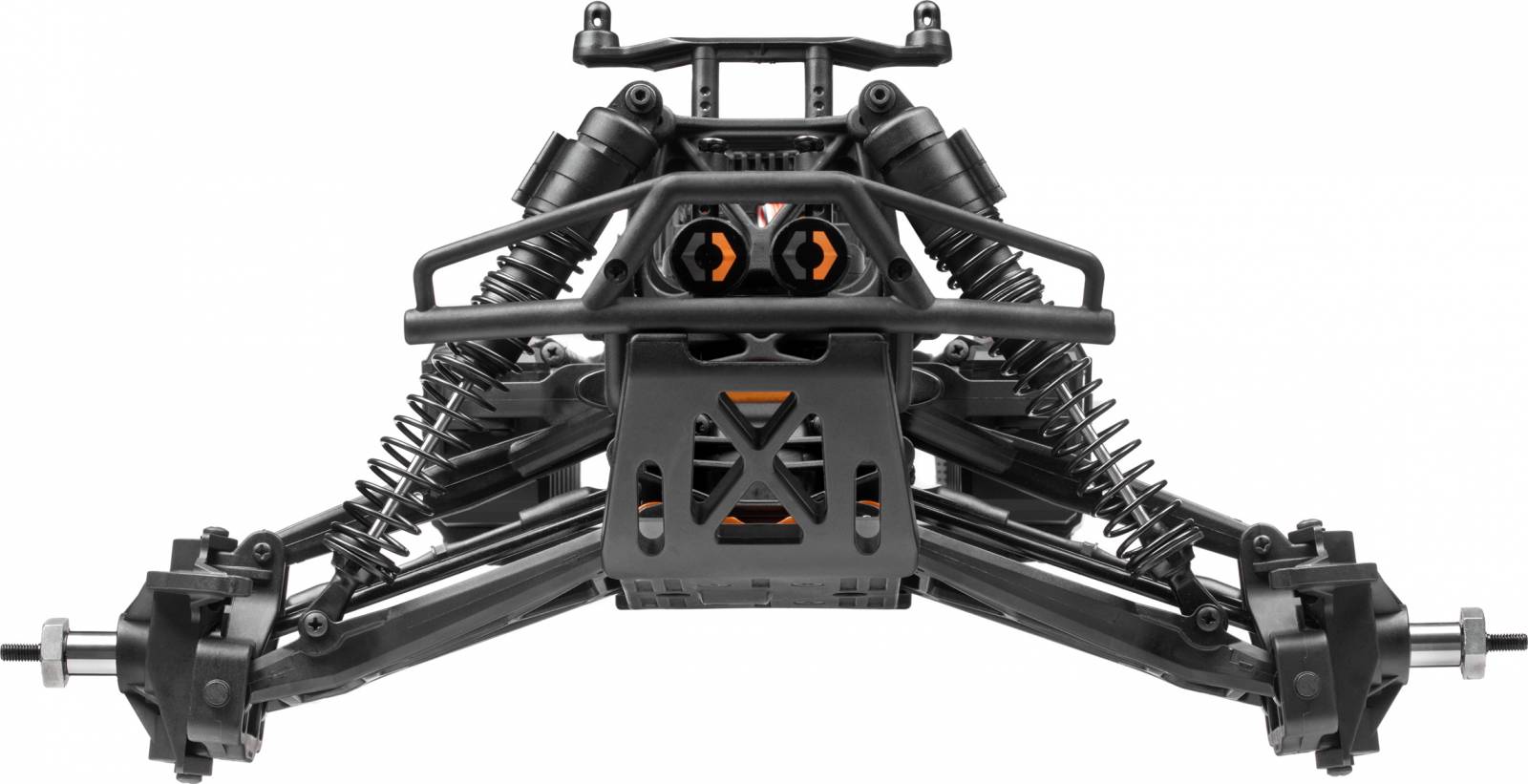

Suspension: Uprights designed for the larger tires and weight of the
Savage XL
Wheels: HPI Warlock, chrome finish, width: 2.2" (56mm), 3.3" (83mm)
diameter

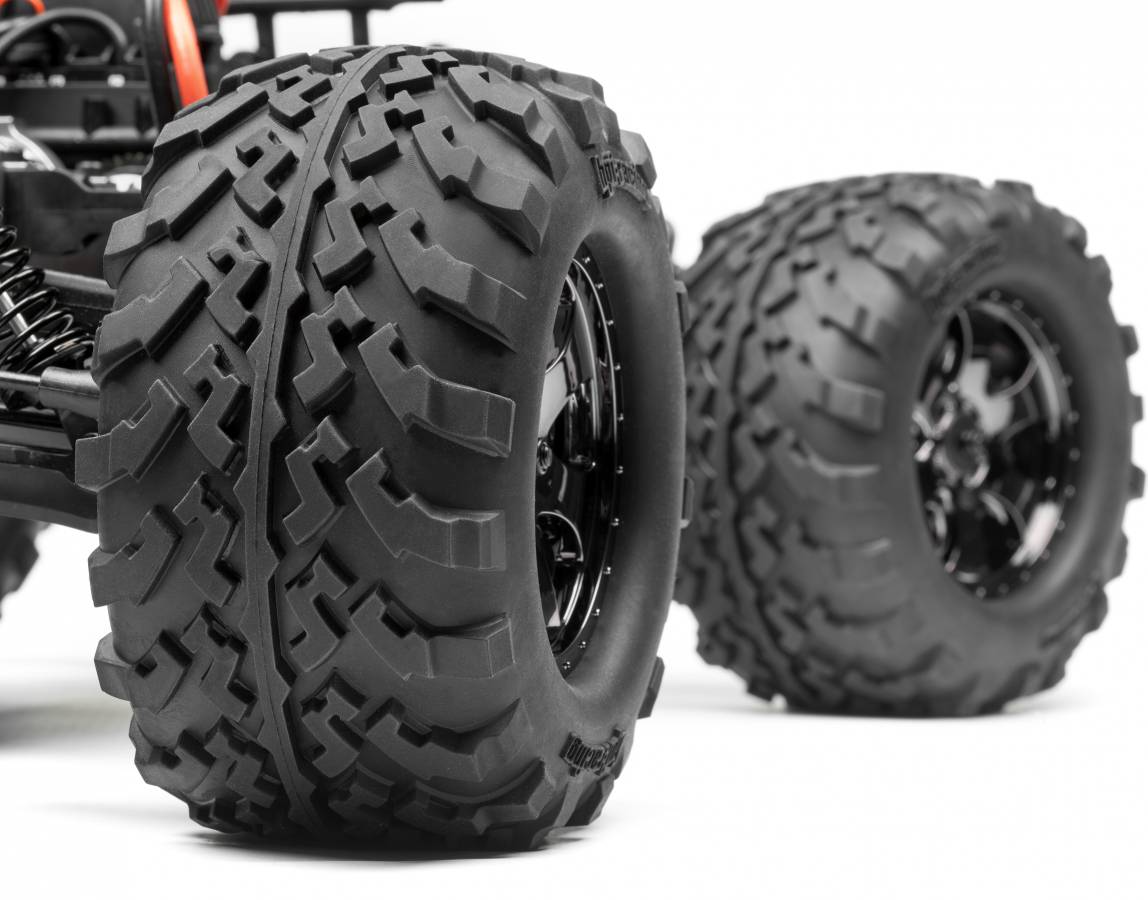

Tires: GT-2 on/off-road with blocky tread pattern and heavy-duty
sidewall teeth, 6.3" (160mm) diameter, 3.4" (86mm) wide
Shocks: Big Bore dual-stage nylon bodied, oil filled
Caster: Adjustable front and rear toe-in, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

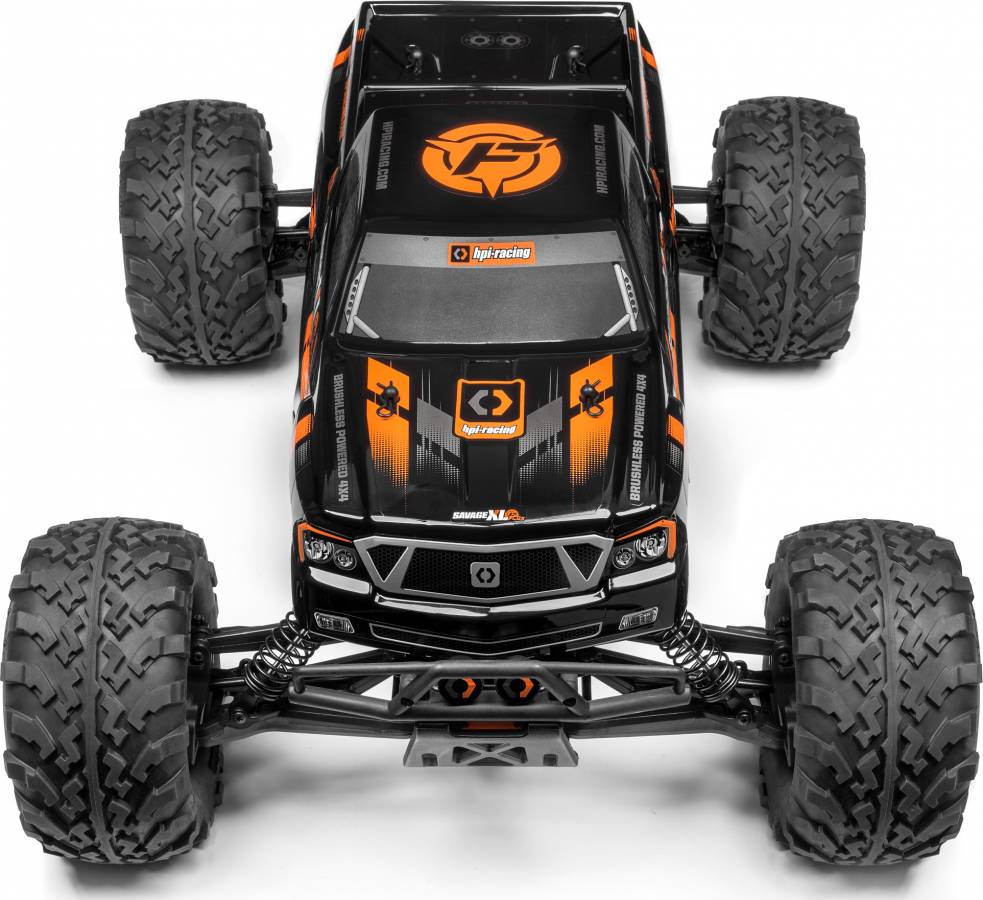

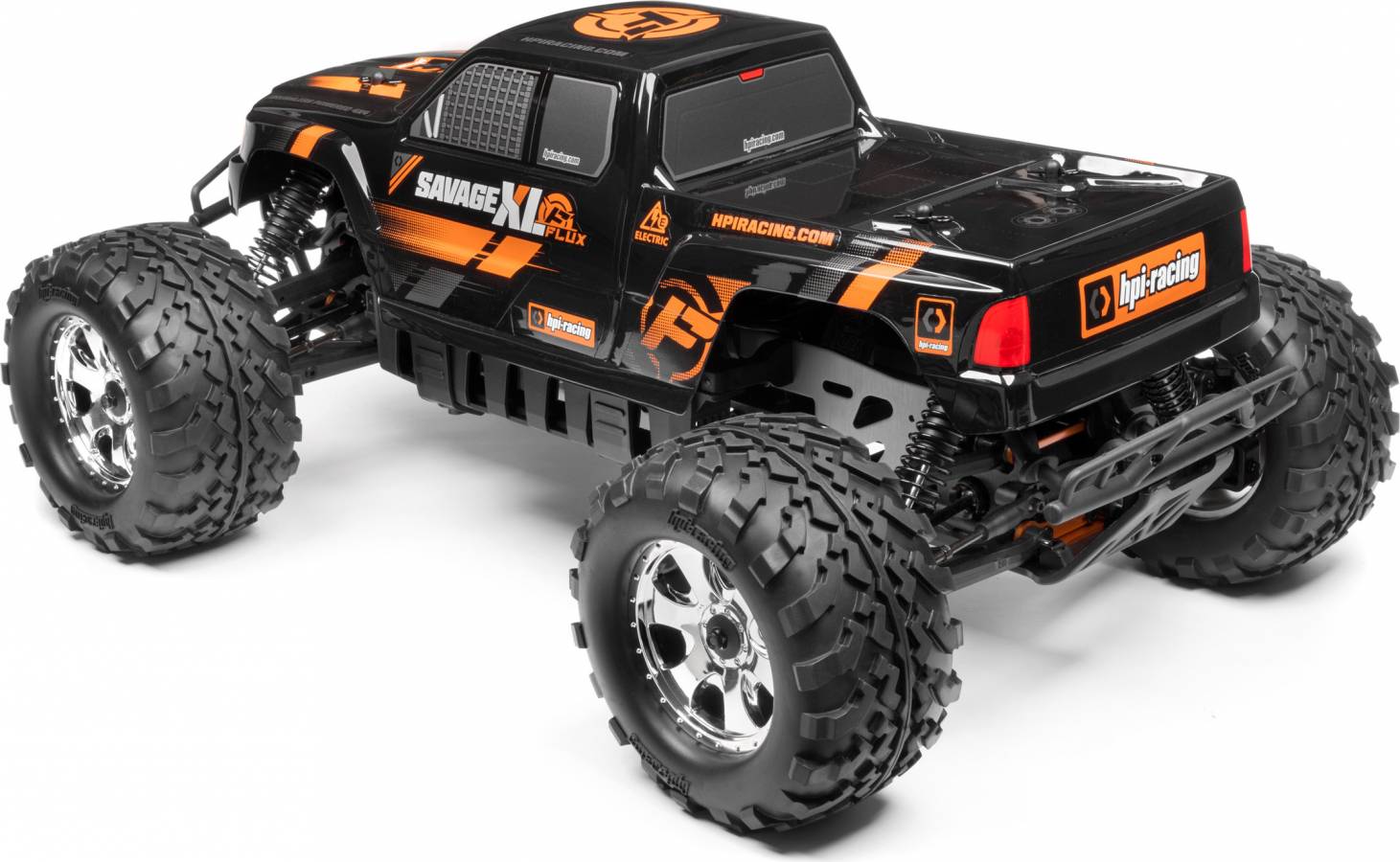

Body: Trimmed and painted GT-2

INCLUDES: Assembled 1/8 scale HPI Savage Flux HP Monster Truck with Flux Tork
2200 brushless motor, ELH-6 ESC, HPI 2.4GHz radio system, SF-5
high torque metal gear steering servo, painted & trimmed body,
instruction manual

REQUIRES: AA Batteries: Six for transmitter
Batteries: Two 2S 7.4V hardcase LiPo batteries, at least 5300mAh
(recommended) with T-plugs, or two 6-7 cell 7.2-8.4V NiMH with
T-plugs
Battery Charger: Depending on type of batteries selected
Charging bag (if using LiPo batteries), building and track
building and track equipment

SPECS: Vehicle-
Length: 23" (585mm)
Width: 17" (427mm)
Height: 10" (254mm)
Wheelbase: 17.5" (445mm)
Suspension Travel: 6" (152mm)
Body-
Length: 20.5" (520mm)
Width: 7.9" (200mm)
Height: 5.5" (140mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x16mm Differentials 1 HPIC2032
2 8x16mm Differentials 1 DTXC1585
4 8x16mm Front Uprights 2 DTXC1585
4 8x16mm Rear Uprights 2 DTXC1585
2 8x16mm Bevel Gear 1 DTXC1585
2 10x15mm Wheely Bar 1 DTXC1595
2 6x13mm Drive Shaft 1 DTXC1573
1 6x13mm Gear Shaft 1 DTXC1573
1 8x16mm Gear Shaft 1 DTXC1585
1 6x13mm Idler Gear 1 DTXC1573
